Construction Site Canteen

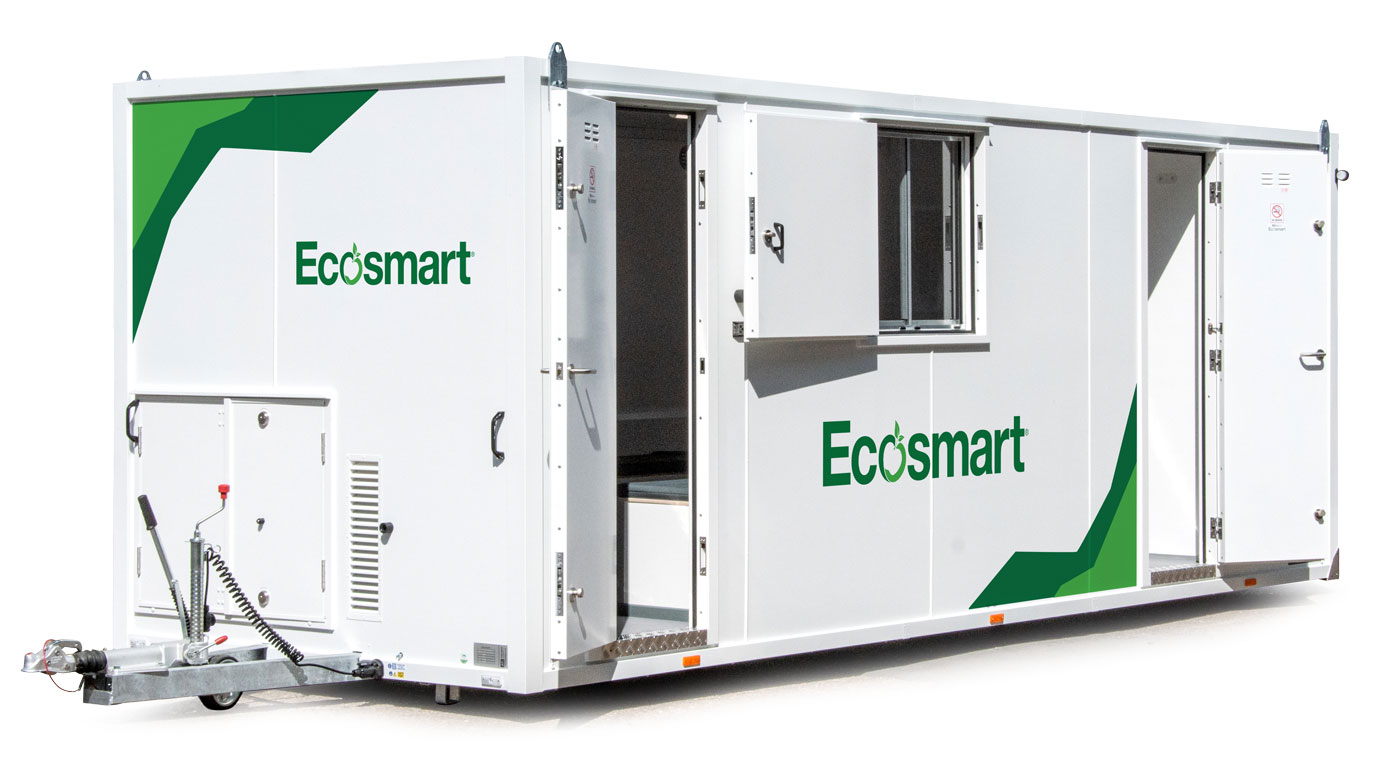

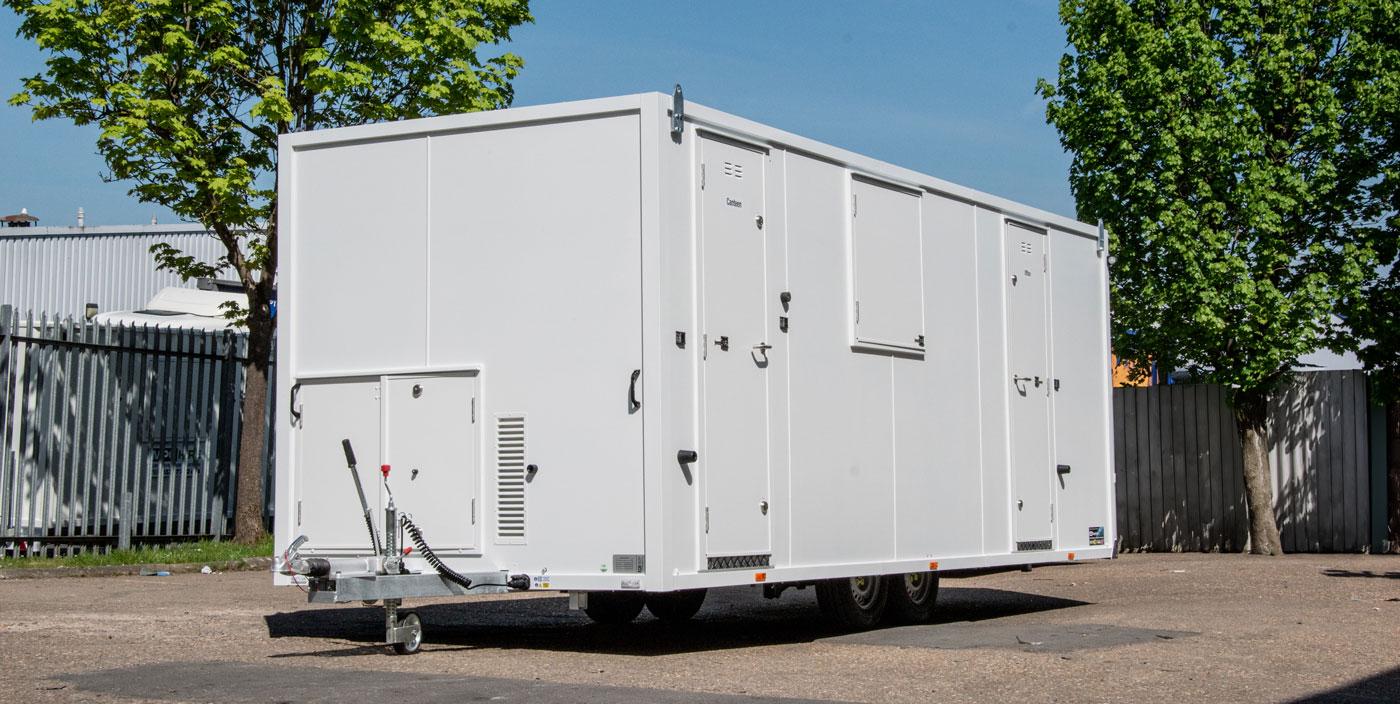

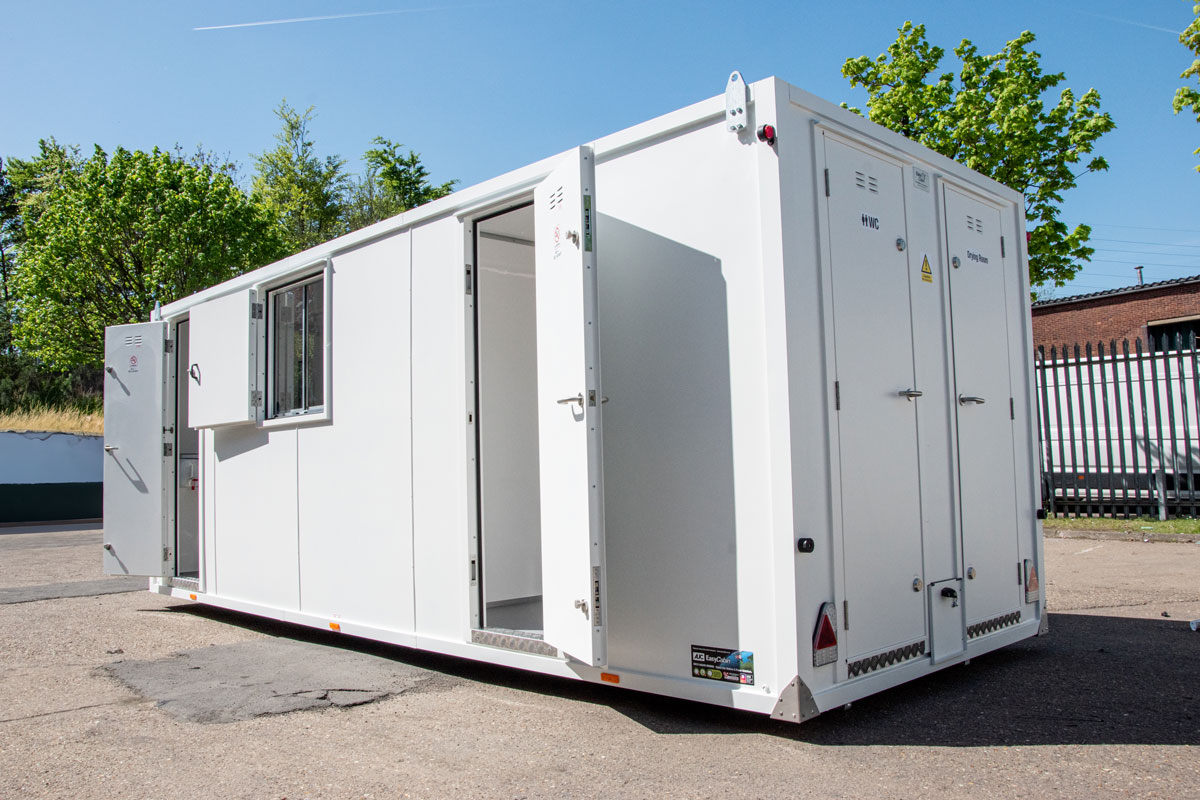

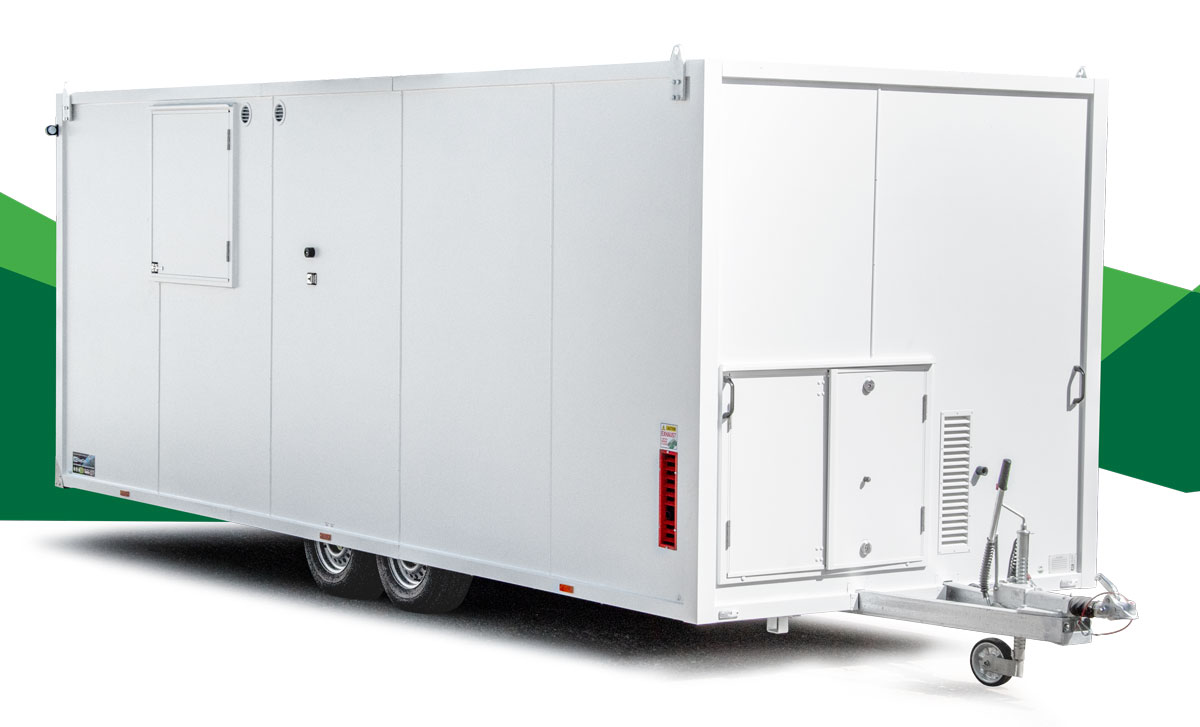

The Ecosmart 20ft construction site canteen provides modern facilities for up to 16 people. Not only does this portable 20ft welfare unit feature a canteen, it also provides a separate toilet, drying room and plenty of space to rest and eat. It can also hold an office or storage area. This construction site canteen is the size of a static unit; but on a towable trailer and, with unique hydraulic axles, it can be set up in as little as 45 seconds.

Canteen and bench seating for up to 16 people
Separate toilet and drying room
Unique hydraulic axles for setup in 45 seconds
Separate or integral office space + extra seating options
Upgrade with ‘Air’ efficient diesel heating system
USB charging points

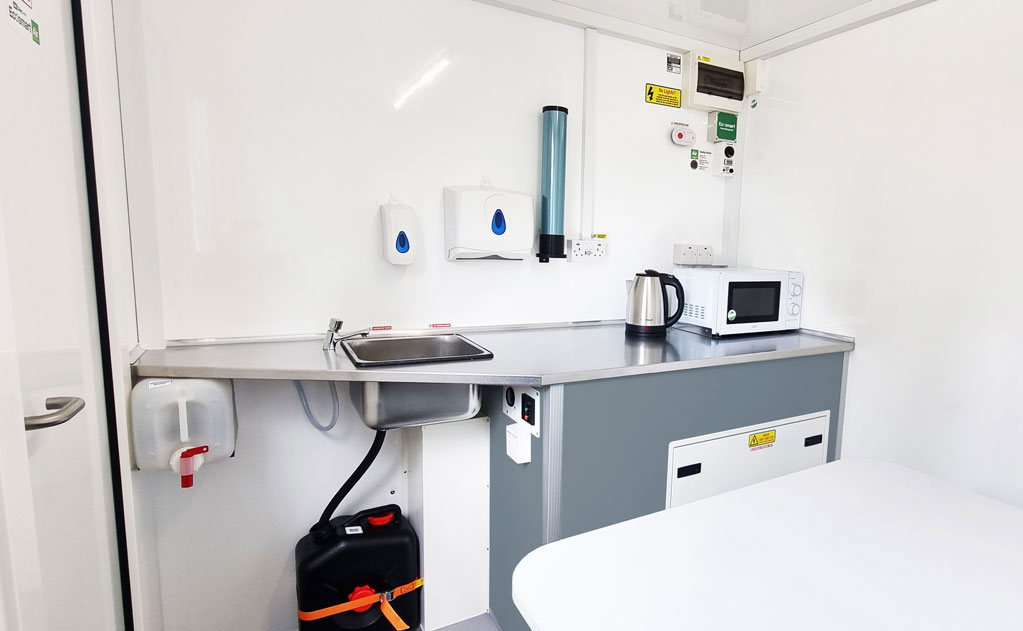

The Ecosmart 20 is the latest development in sustainable site welfare hire units. The modern and open plan construction site canteen space has been fitted with a table and comfortable bench seating for up to 16 people. Workers will benefit from running hot water, an economical heating system, built-in USB charging points, microwave and kettle. The portable 20ft welfare unit features stainless steel worktops, sinks and seamless high gloss wall surfaces, making it easy to clean and maintain on-site. With the option to add extras, you can tailor this unit specifically to your needs and requirements.

Boasting zero emissions, the Ecosmart 20 has a host of environmentally-sensitive features, including optional solar panels and PIR activated lighting that helps to cut down on energy use and cost. With so many practical features, this could be the construction site canteen for you.

Get in touch today to find out more about our 20ft mobile welfare units. Our friendly team is on hand to discuss the best welfare units for construction sites, projects and events.Call us on 01582 297488.

2535kg

Unladen weight

3000kg

Gross weight

W 2420
L 6200
H 2700

Dimensions (mm)

45s

Quick & easy setup⁽²⁾

UP TO6h

Without generator⁽¹⁾

UP TO4h

Without generator⁽¹⁾

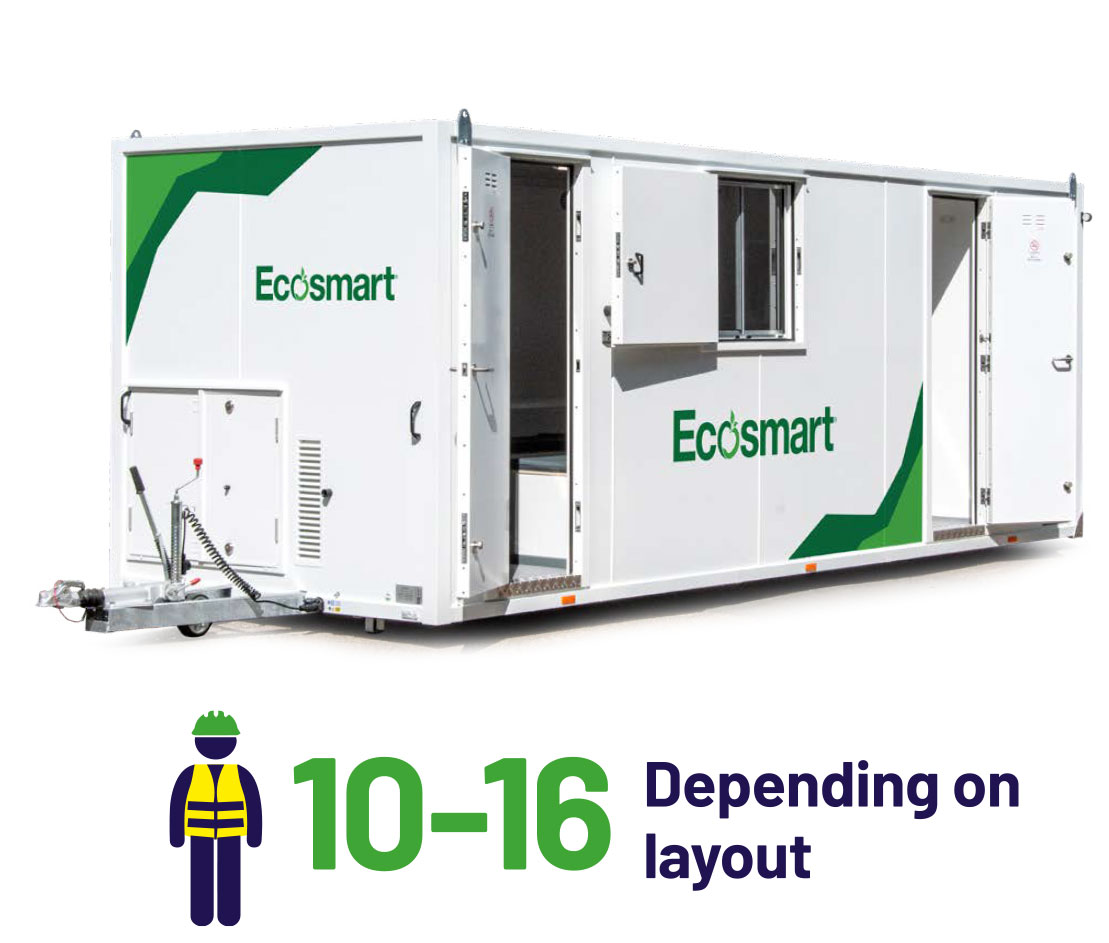

Available layouts

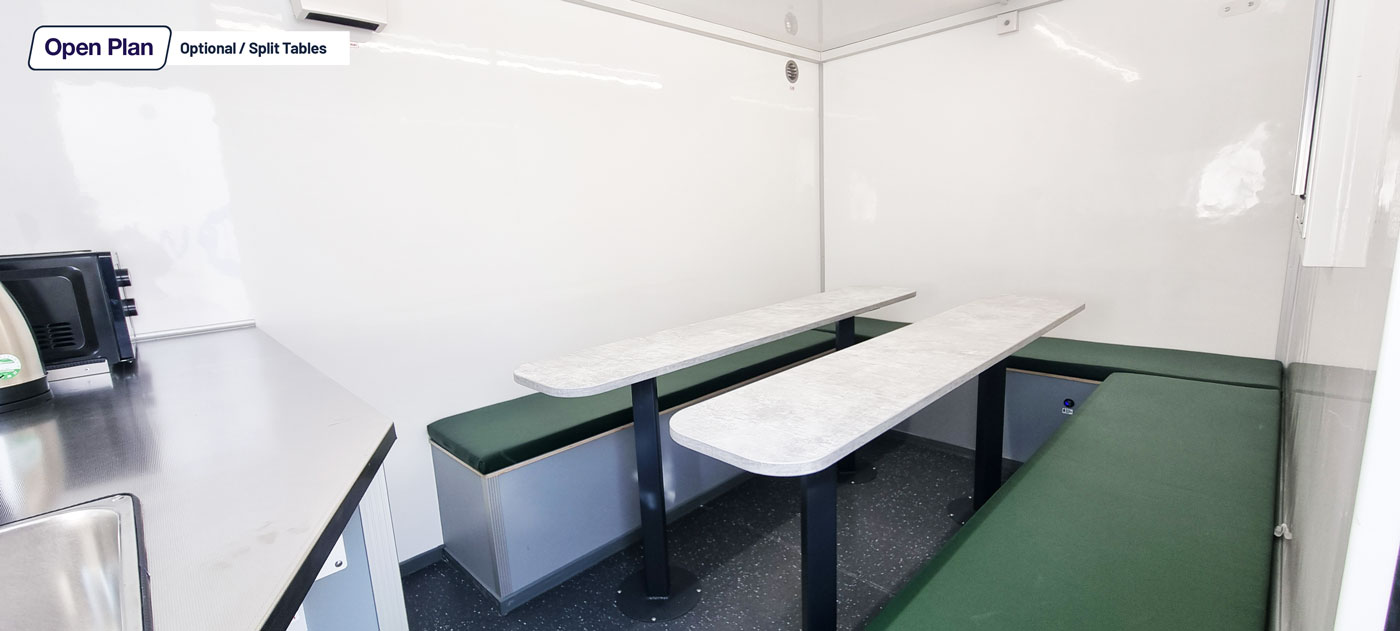

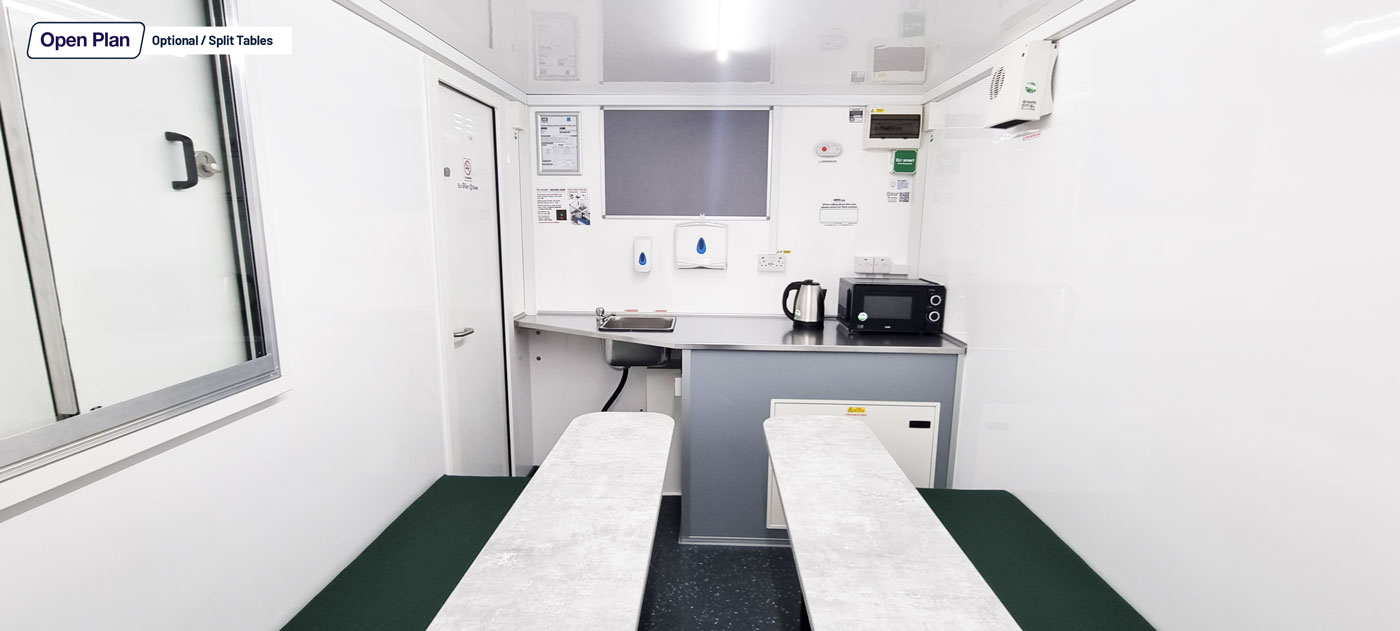

Open plan
layout

Bench seating for 12

Separate office

Separate drying room & toilet

Xtra
layout

Seating for 16

Separate drying room & toilet

+
layout

Seating for 10

Separate large office

Separate drying room & toilet

Specifications

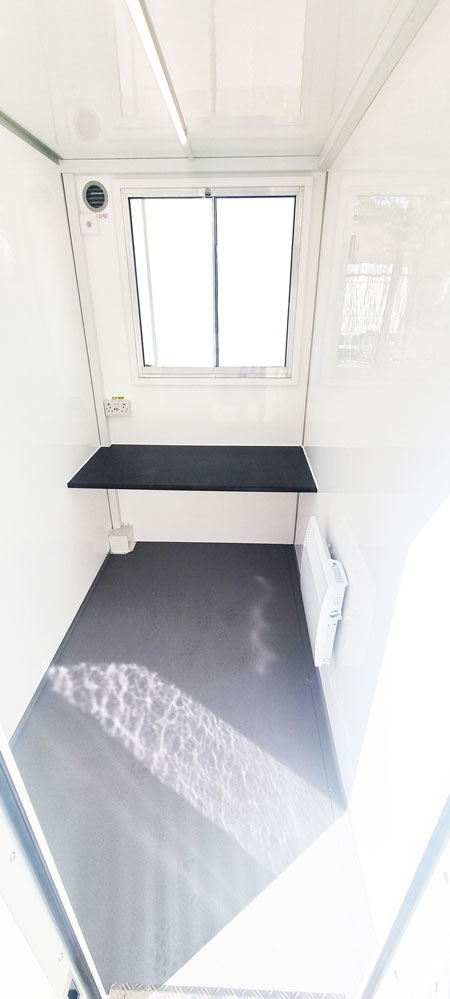

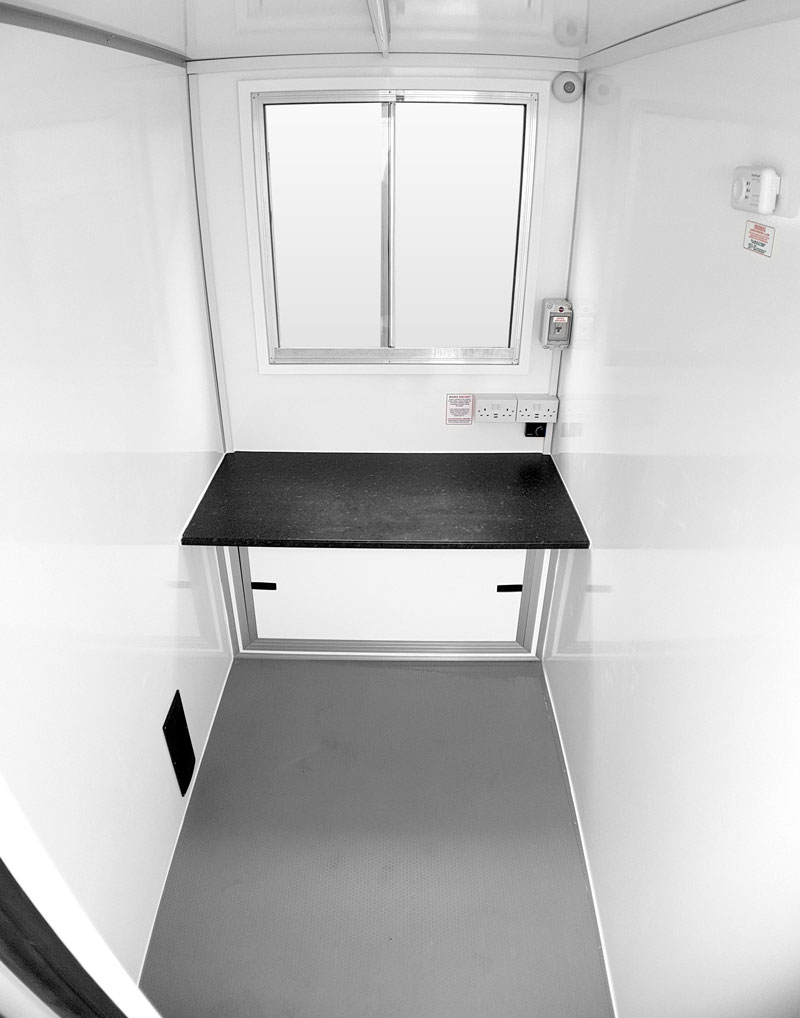

+ Office (layout)

PIR activated 12 volt LED light
Heating outlet (standard or “Air”)
Desk
Double socket with USB

Power

High cycle AGM battery
12v battery charger
Battery Condition Monitor

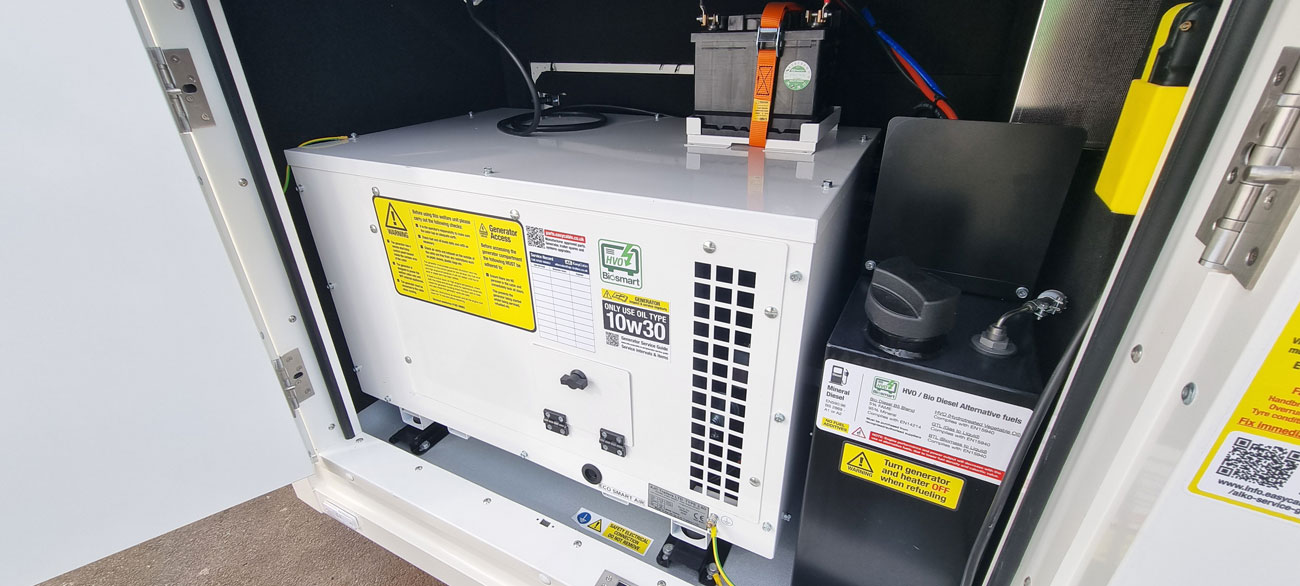

Diesel Kubota engine generator
Diesel tank
12 volt hydraulic pump
Low level fuel cut off

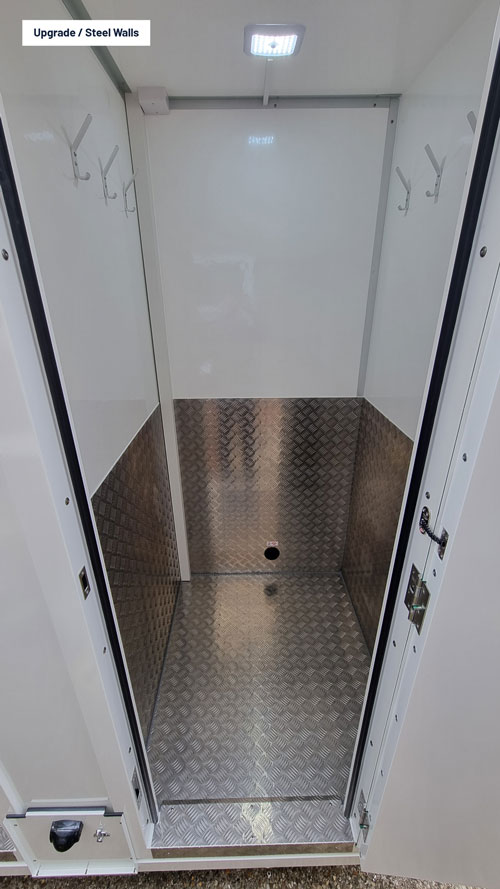

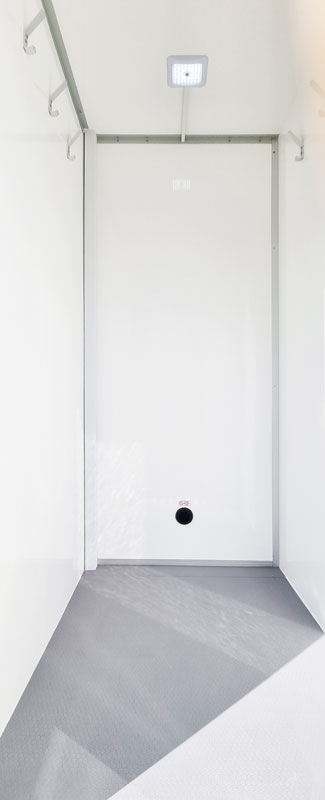

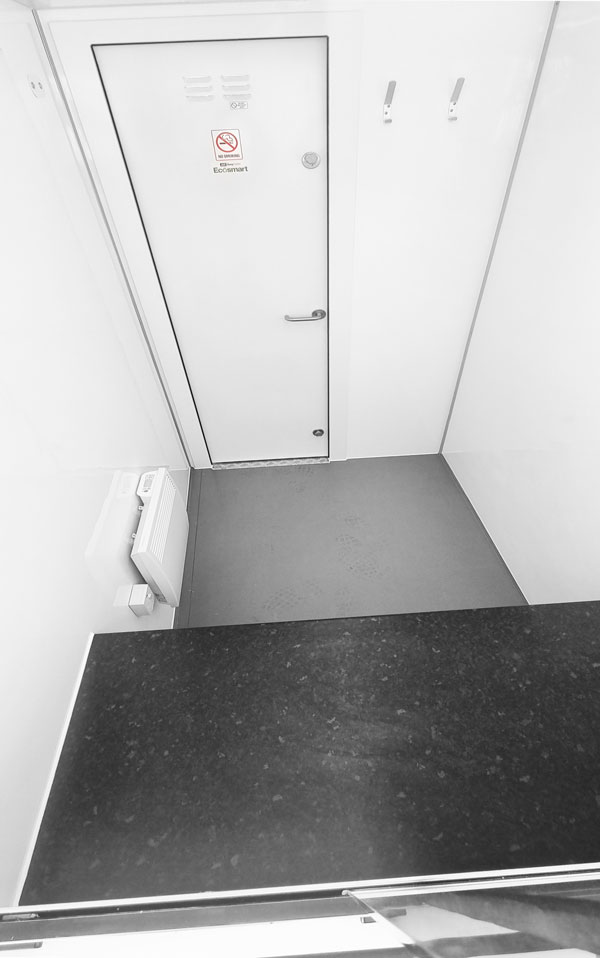

Drying Room

Coat hooks
PIR activated 12 volt LED light
Heating outlet (standard or “Air”)
Earth rod

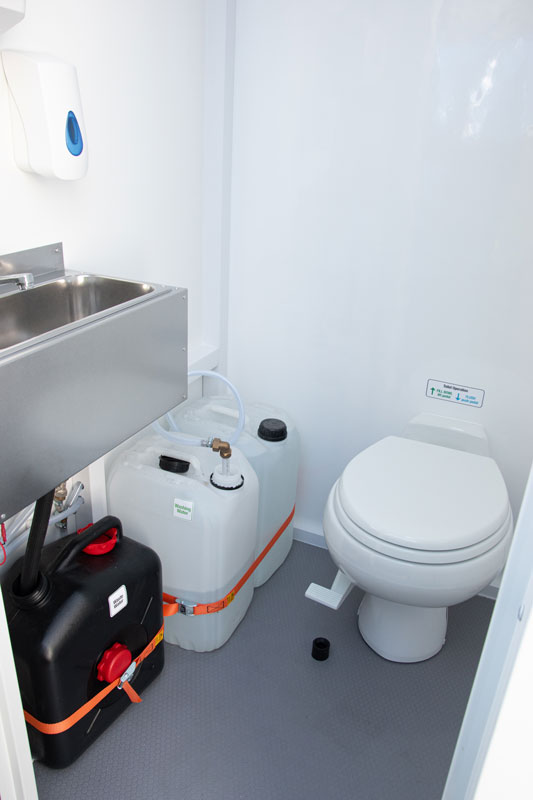

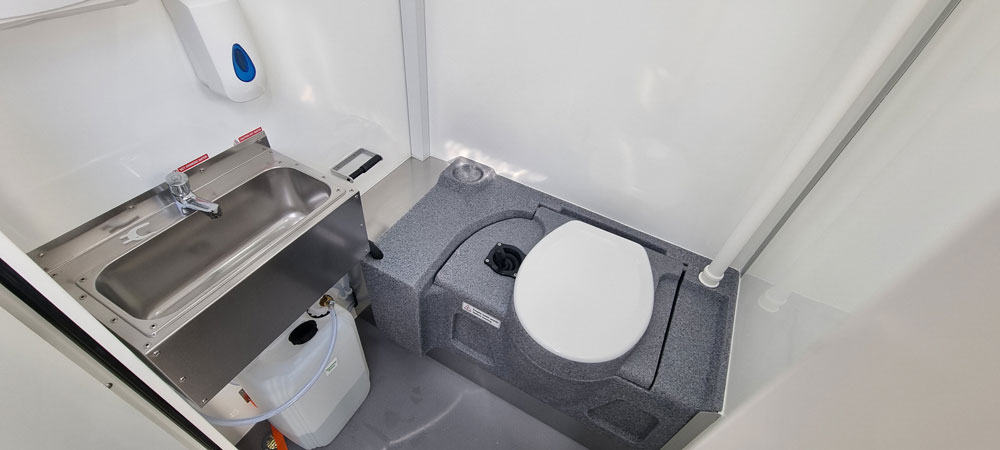

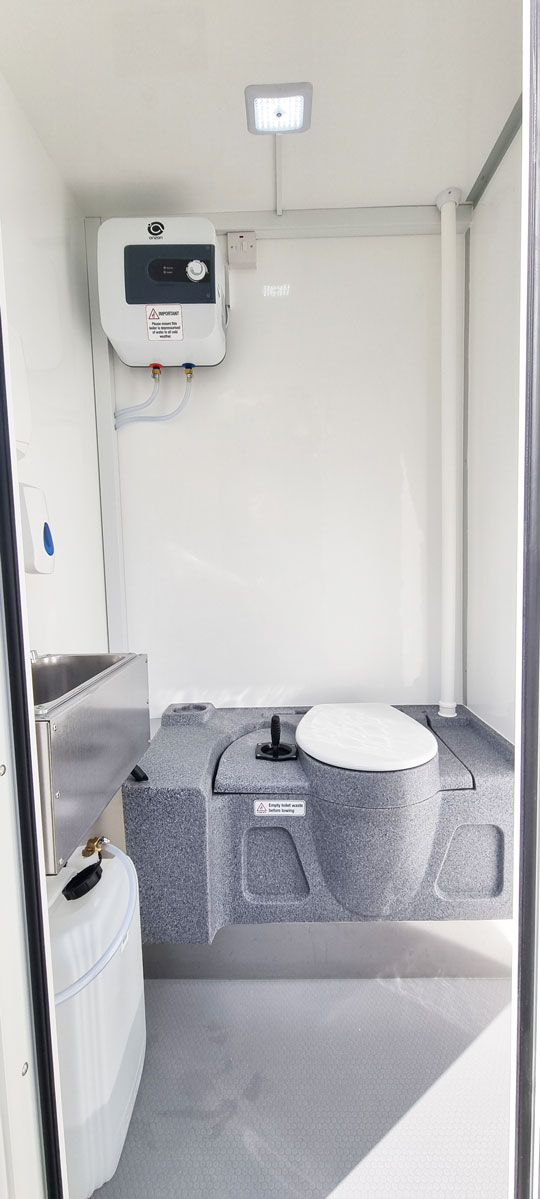

WC

Recirculating flush tank toilet 80 litre capacity
Sink to wash up to forearm
Running hot water
Coat hook
Soap dispenser
Towel dispenser
Toilet roll holder
PIR activated LED light

Construction

Walls:

Constructed from unique patented (2448660) high strength composite panels. Galvanised steel exterior, seamless GRP interior and high-density foam insulation, provides rust-free and washable surfaces.

Roof:

Seamless insulated composite panel.

Floor:

15mm plywood with slip and wear resistant phenolic coating.

Wheels

195R 14” Low-profile wheels & tyres.

Chassis

Heavy-duty galvanised steel.

Axle:

Electric type approved hydraulic axle.

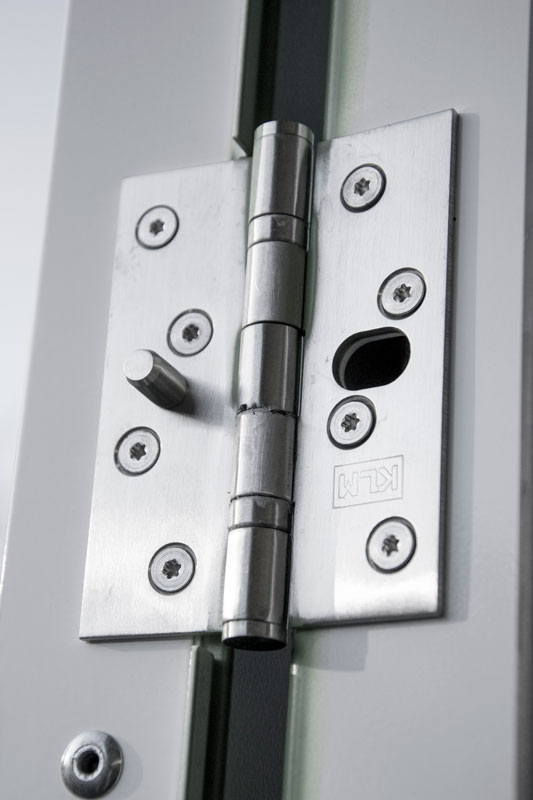

Doors:

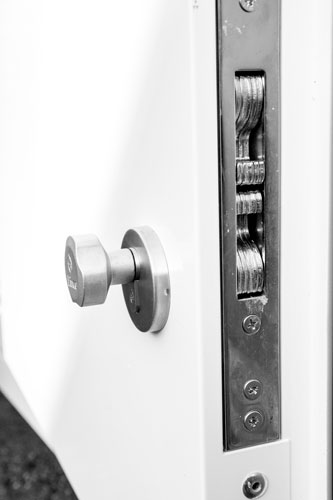

4 x high security composite doors with 2 deadlocks. Double doors to generator with 2 deadlocks.

Window:

Aluminium with security door locked internally with thumb turn deadlock.

Lights:

Built in road lights with removable number plate brackets.

Weight:

Gross weight 3500Kg - Unladen weight ONLY 2535Kg

Compliant

Approved

Running stats

6h

Without generator⁽¹⁾
4h

Without generator⁽¹⁾

Energy savings - Compared to a standard 6Kva system

All our figures are costed based on REAL- LIFE daily usage, taking into account using the appliances & heating in wintertime and summertime. A full energy presentation is available on request.

Based on 10 hours per day for 260 days, 80 days in winter mode and 180 days in summer mode. Each day is a typical usage day. 12 Persons accommodated. £1.70p per litre Diesel / HVO. £60 per H2 Bottle..
Solar panels achieve maximum output in direct sunlight, but they work in normal daylight and cloudy weather too. The amount of power a solar panel or charging kit generates in cloudy weather will be lower compared to direct sunlight. Also the positioning of the cabin will affect the solar charging of the batteries i.e. under trees, etc. This assessment doesn’t take in consideration the usage of the hydraulics. This assessment is guidance only.

Optional Extras

Optional extras & upgrades

Available on this product. Click for more info.

Non-hydraulic axles

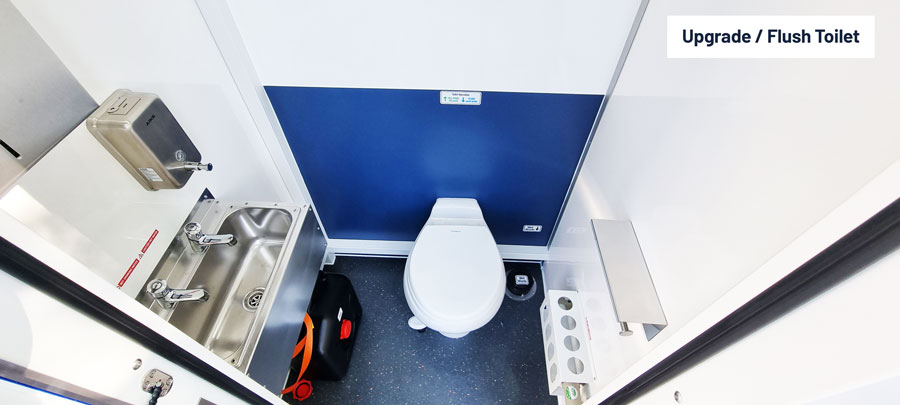

Ceramic flush toilet
Available as a static unit
Custom layouts on request
Pin boards
White boards
Spare Wheels
Decals / Branding

Downloads

DOWNLOAD Ecosmart range brochure

EcoSmart 20 - model comparison

Range Overview	20 Open plan EcoSmart	20 Xtra EcoSmart	20+ EcoSmart
Hydraulic axles
EcoSmart Box
Canteen type	Large	Large	Space saving
Office
Seating	x12	x16	x10

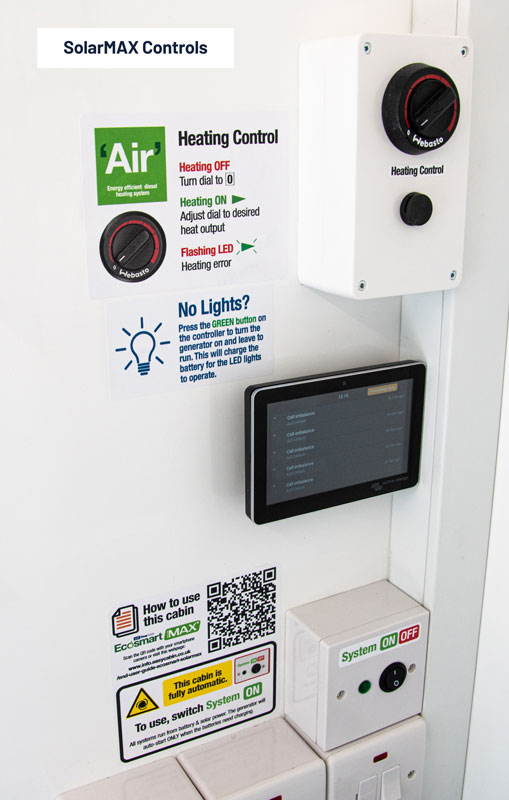

Increase efficiency with ‘Air’ Diesel heating upgrade

SHOW DETAILS

Energy efficient diesel heating upgrade.

Costs, Fuel consumption, Emissions, Noise.

Includes
battery monitor.

‘Air’ – a diesel heating system that saves energy, reduces carbon emissions and noise compared to our standard heating. Up to 78% better fuel economy.

MORE WARMTH: More heat produced from less energy.
AUTOMATIC: Thermostatic control for continuous cabin temperature.
EASY: Just turn the system on and enjoy.
EFFICIENT: Low fuel and power consumption, suitable for long periods of operation.
QUICK: Short heating-up times.
QUIET: No need for the generator to be on for heat to be produced.
ALSO INCLUDED: Upgraded batteries, battery monitor, 12v USB charge sockets.
SAVE MONEY ON OPERATING COSTS (compared to standard heating)
STANDARD HEATING: Heating on with generator running @ 75% load = 1.2 litres per hour
‘Air’ HEATING: Heating on max = 0.28 litres per hour (Saving of 0.92 litres per hour)
UPGRADED BATTERY: Gives more continuous LED lighting time (es12 = 10 hours, es16 = 8 hours)

Up to 78% better fuel economy for the same heating time

Contact EasyCabin for details on the ‘Air’ heating system.

As standard: HVO diesel compatible heating & power

BIOSMART HVO

Harvest the sun's FREE energy with solar panels

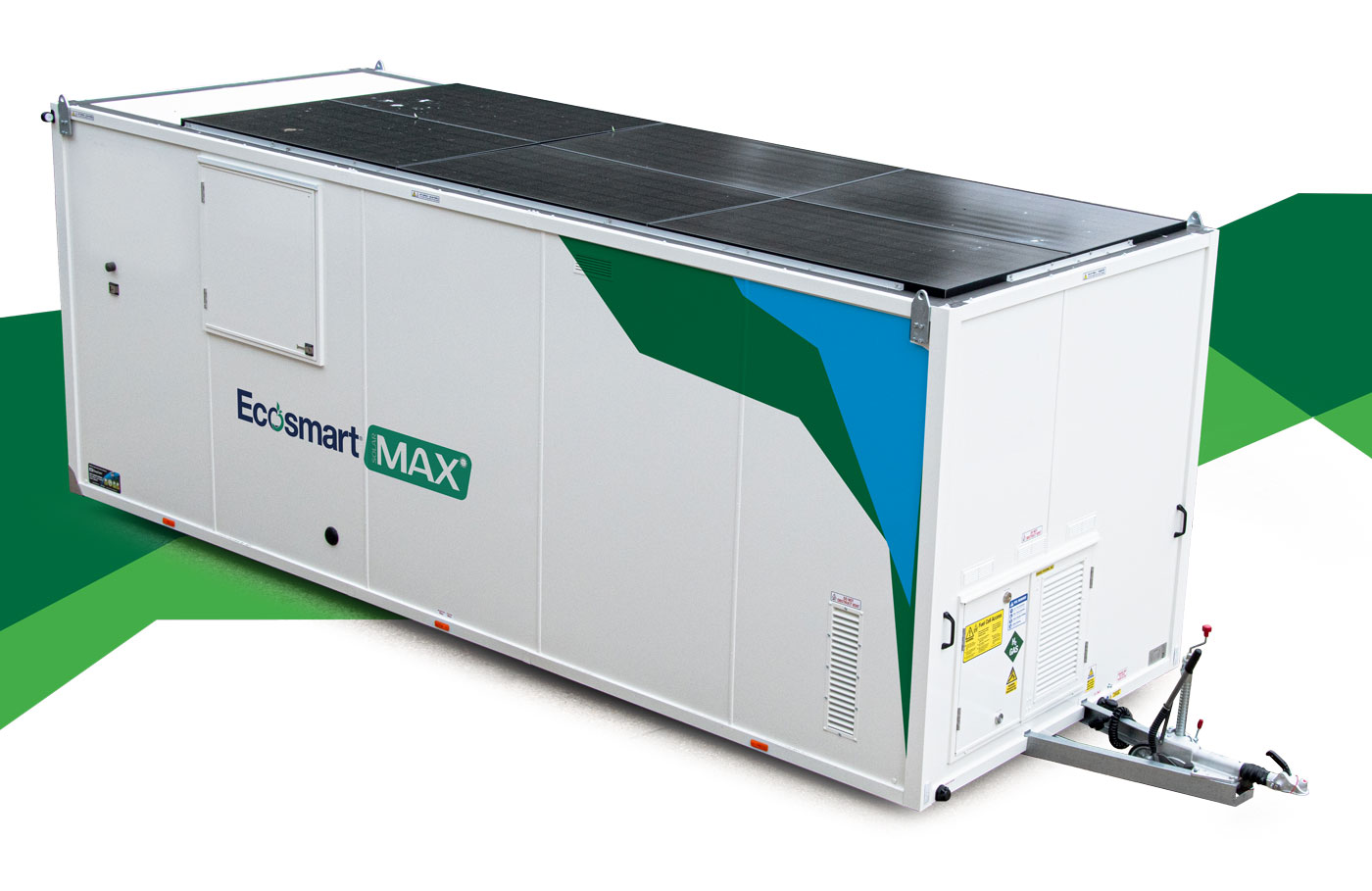

SOLAR UPGRADE - UP TO 55% FUEL SAVINGS SOLAR MAX - UP TO 96% FUEL SAVINGS

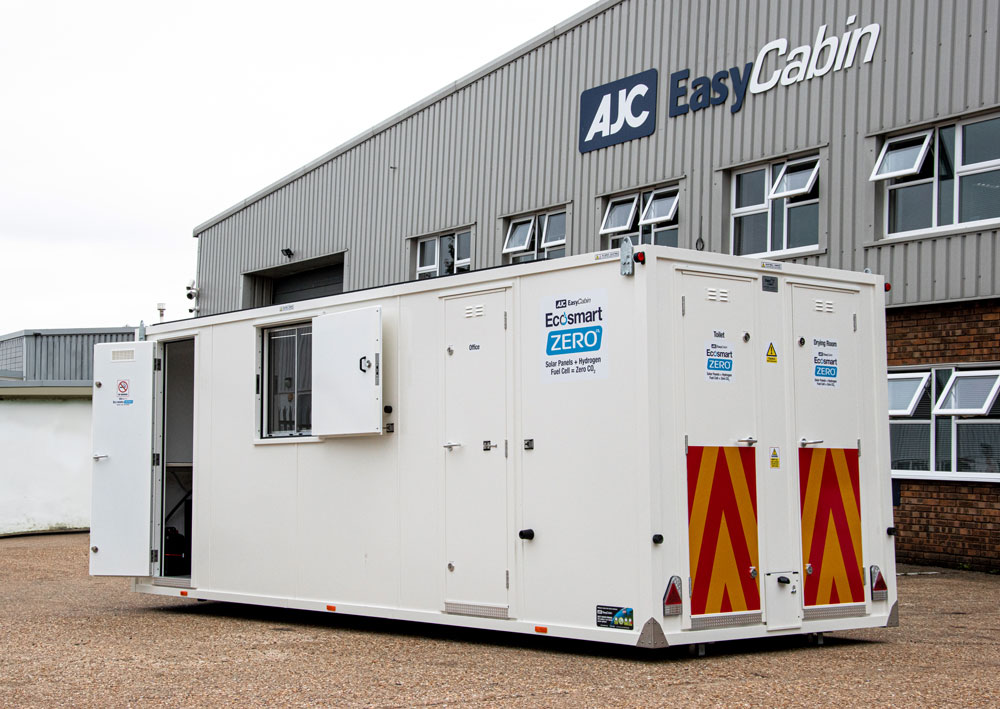

Ecosmart ZERO. Large solar panels + Backup hydrogen fuel cell = NO local CO2 emissions

UPGRADE ZERO EMISSIONS

Media Gallery

Explore our 20ft welfare unit facilities, below. Alternatively, to discuss your mobile welfare unit hire requirements, please contact a member of our team on 01582 297253.

As part of our on-going commitment to improvement we reserve the right to alter specifications, designs or figures, without prior notice. All dimensions and weights are approximate.

(1) Figures quoted based on “optimum use”, with the generator not running, no appliances used & no hydraulics used within the stated time period.

(2) While in un-hitched state, timed from the start of axle retract sequence, until the unit is seated and the cabin door is opened.
