Welfare unit

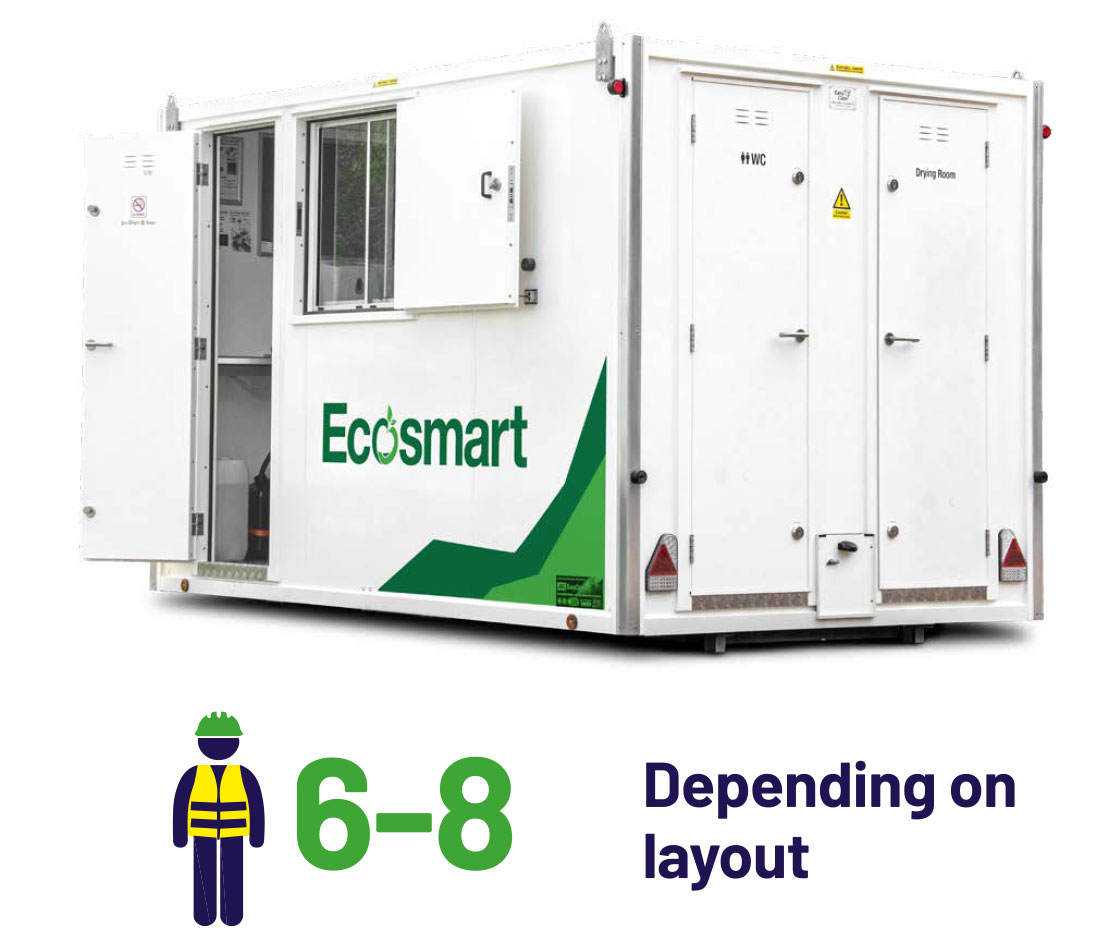

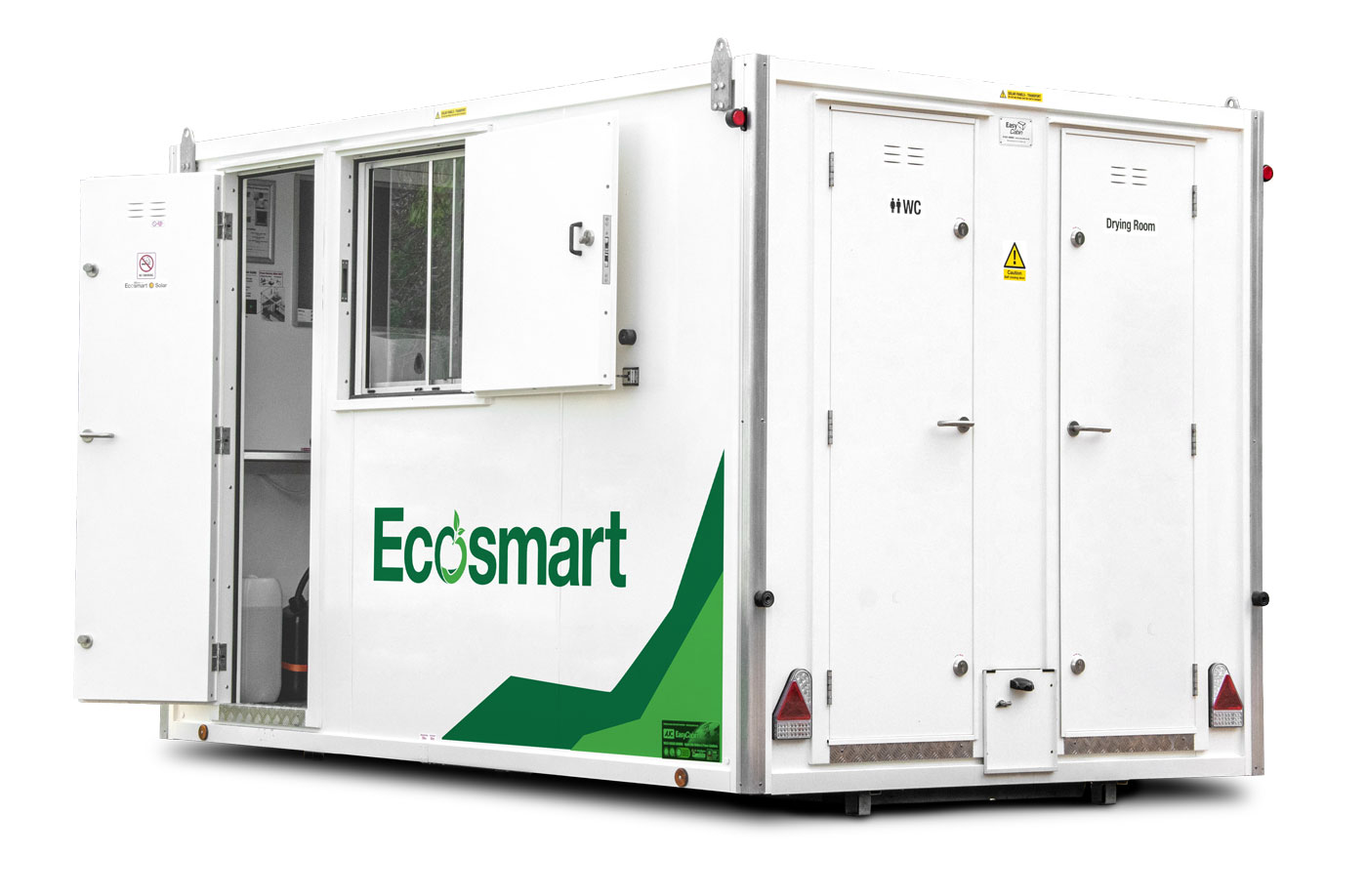

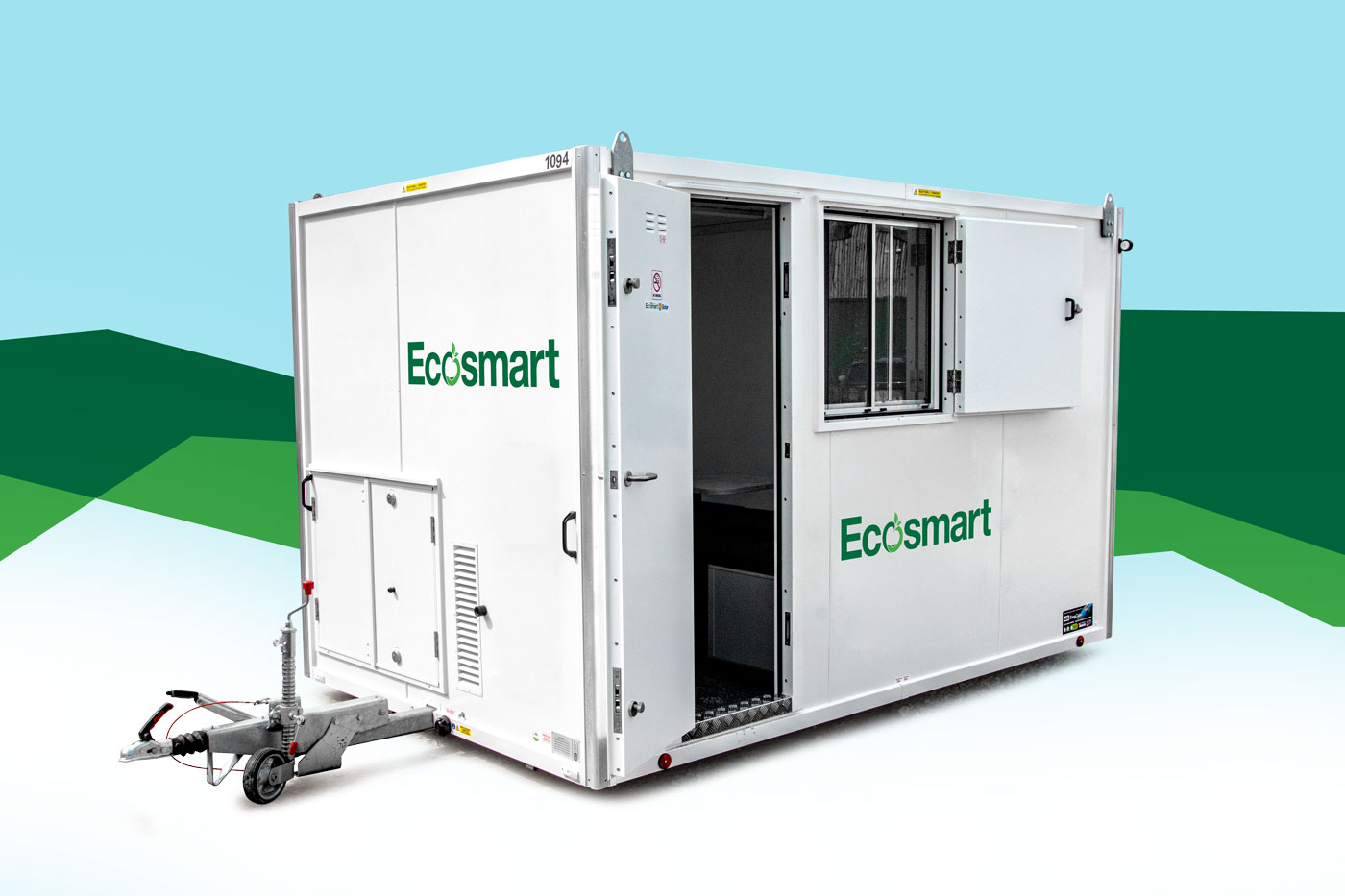

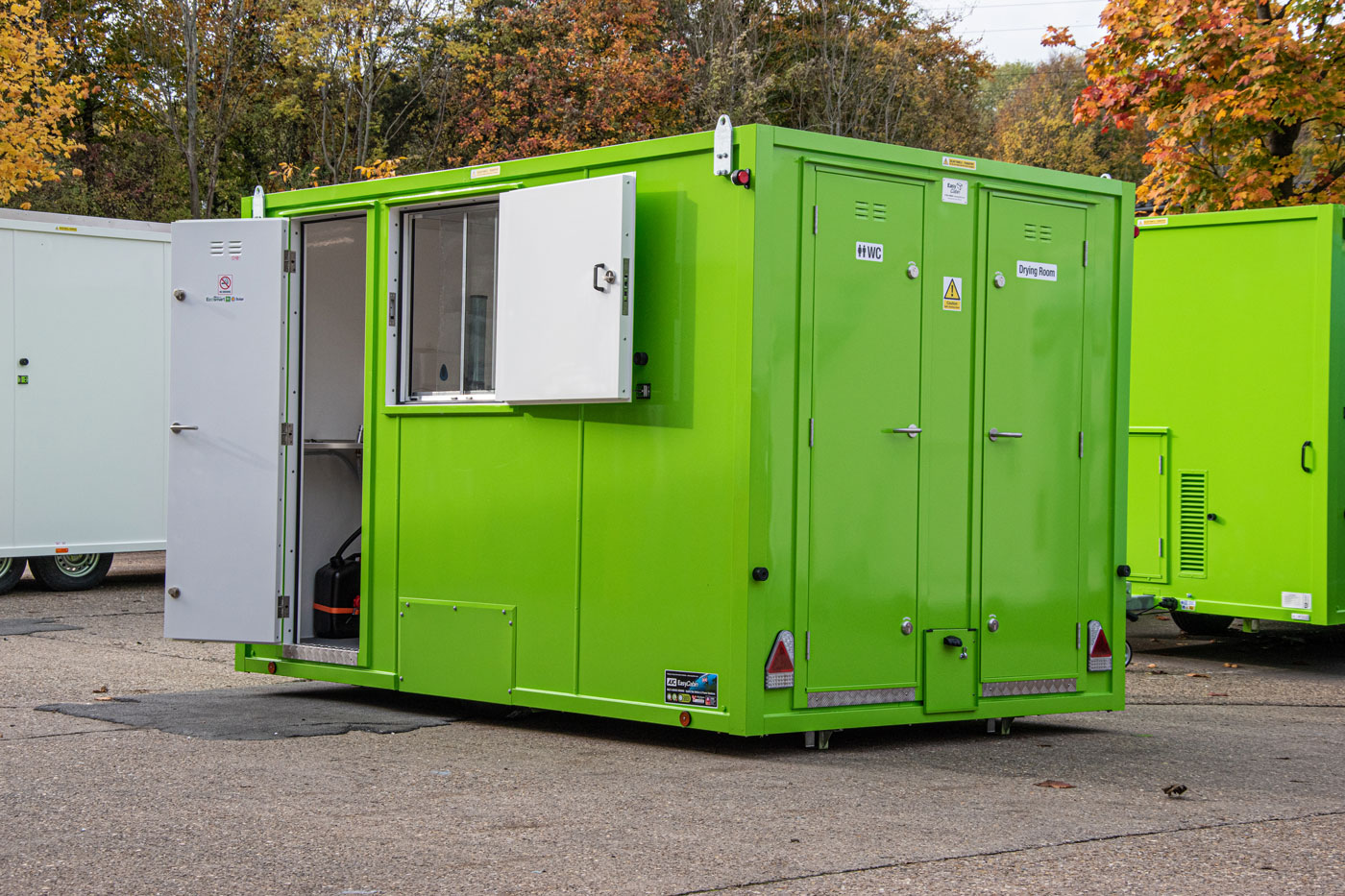

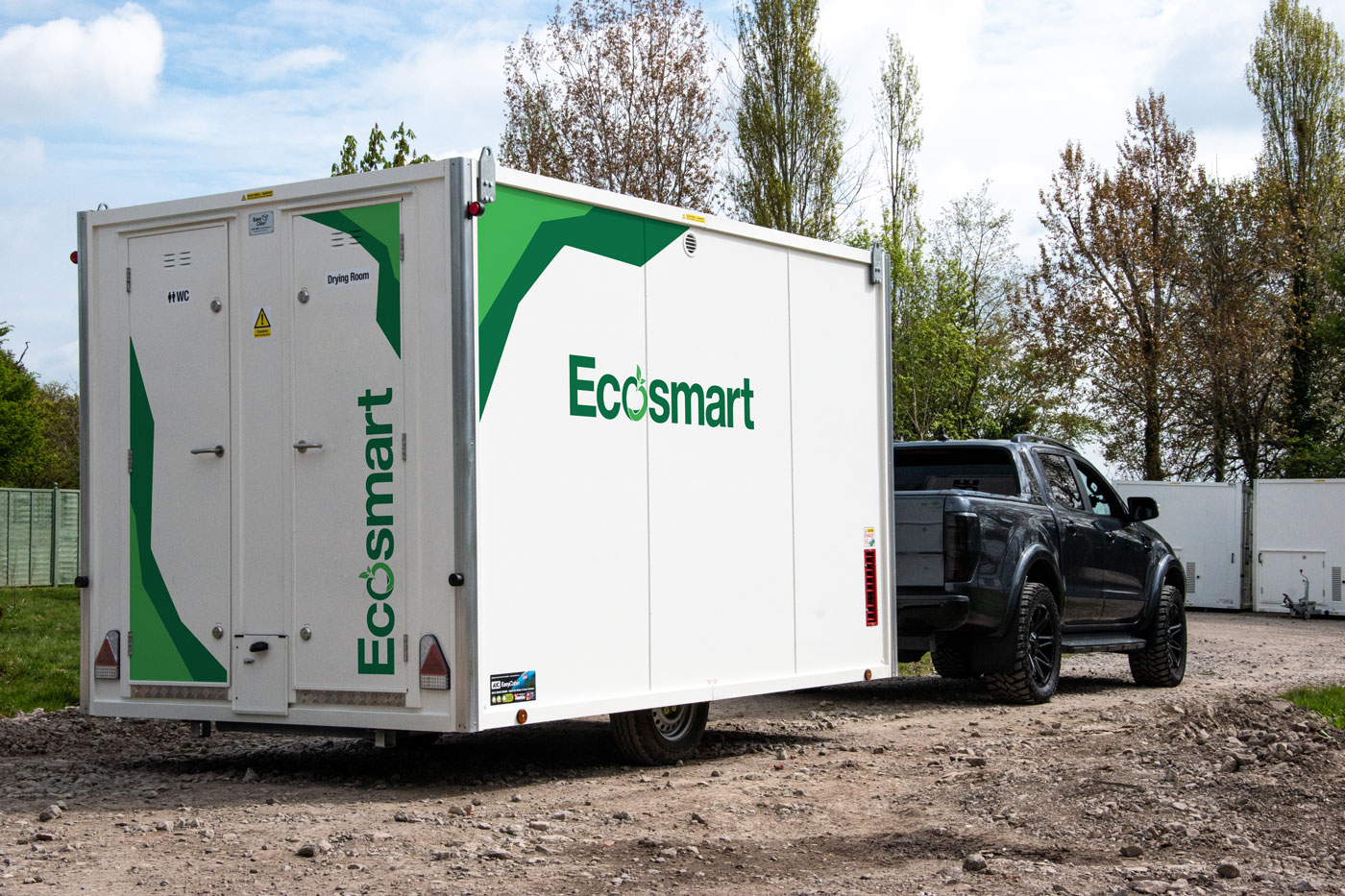

12ft Mobile Welfare Unit

Our Ecosmart 12ft mobile welfare units for sale make a perfect addition to any construction site. These 6 person site welfare units provide canteen and welfare facilities on-site for up to 8 workers. They feature a separate toilet, drying room and ample room to sit, rest and eat. The Ecosmart 12ft towable welfare units feature modern and unique hydraulic axles, meaning that you can quickly and easily set up the site welfare unit within 30 seconds. Site workers have a dry and warm place to shelter and relax onsite, as well as for storing some of their belongings and charging their phones with the integrated USB charging points. The open plan layout of the canteen helps to provide an inviting area and bench seating for 6-8 people. You also have the option to upgrade to an air efficient diesel heating system or solar panels if you wish to.

We will work with you to provide you with the most appropriate 12ft mobile welfare unit to suit your unique requirements.

The Ecosmart 12 towable welfare units provide canteen and welfare facilities on-site for up to 8 persons, with a separate toilet, drying room and ample space to rest and eat.

Canteen and bench seating for 6 to 8 people
Separate toilet and drying room
Unique hydraulic axles for setup in 30 seconds
Optional space-saving canteen with extra seating
Upgrade with ‘Air’ efficient diesel heating system
Fully site ready with fuel and water
Spare 250kg payload for your tools
Carbon monoxide detector
USB charging points

Why Choose This 12ft Mobile Welfare Unit?

The Ecosmart 12 is one of the more popular 12ft mobile welfare units we have for sale, due to its easy setup and comfortable extras. Fitted with a sleek table and bench seating, the Ecosmart 12ft mobile welfare unit features running hot water, a heating system, a microwave and kettle. These towable welfare units are fitted with modern stainless steel worktops, stainless steel sinks and seamless high gloss wall surfaces for effortless cleaning and long durability. These 6-8 person welfare units have been specifically designed and built to provide the users with optimum convenience and comfort. They will be a worthwhile addition to any remote location.

The Ecosmart 12 has a host of environmentally sensitive features, including PIR activated lighting that helps to cut down on energy use and running costs. For more information about our 12ft mobile welfare units for sale, please contact us on 01582 297488.

1650kg

Unladen weight

1900kg

Gross weight

W 2420
L 3615
H 2700

Dimensions (mm)

30s

Quick & easy setup⁽²⁾

UP TO6h

Without generator⁽¹⁾

UP TO4h

Without generator⁽¹⁾

Available layouts

Explore all of the available layouts for our 12ft mobile welfare units below:

Open plan
Xtra

Open plan
layout

Bench seating for 6

Separate drying room & toilet

Xtra
layout

Bench seating for 8

Separate drying room & toilet

Specifications

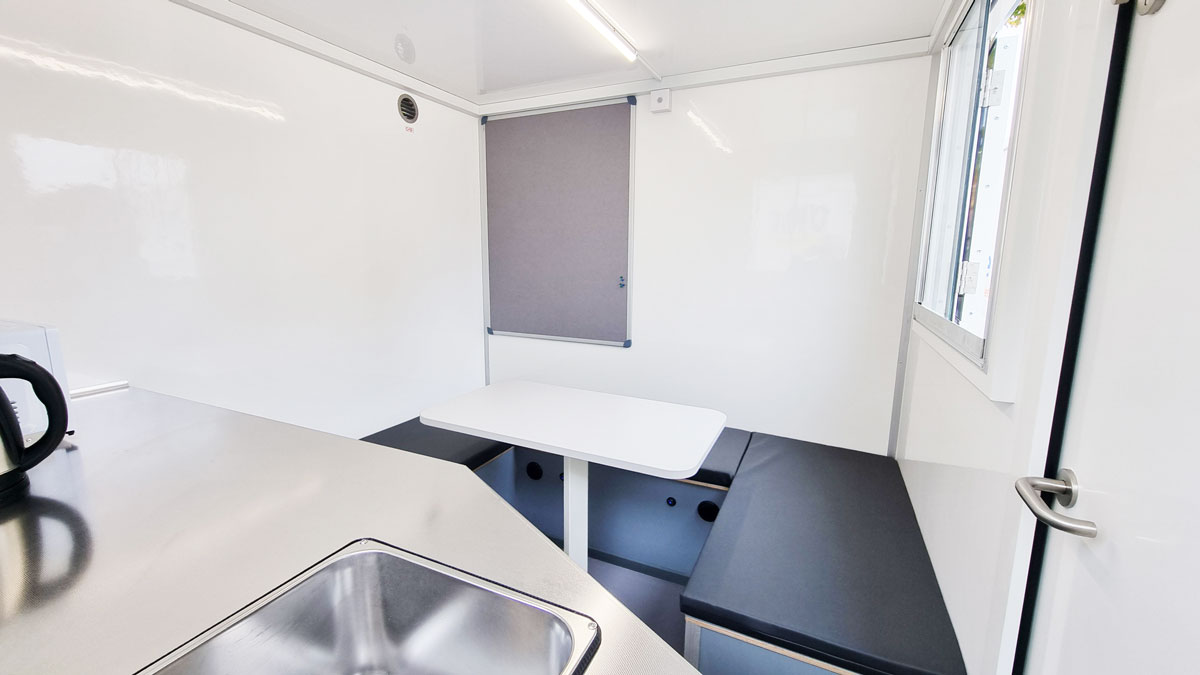

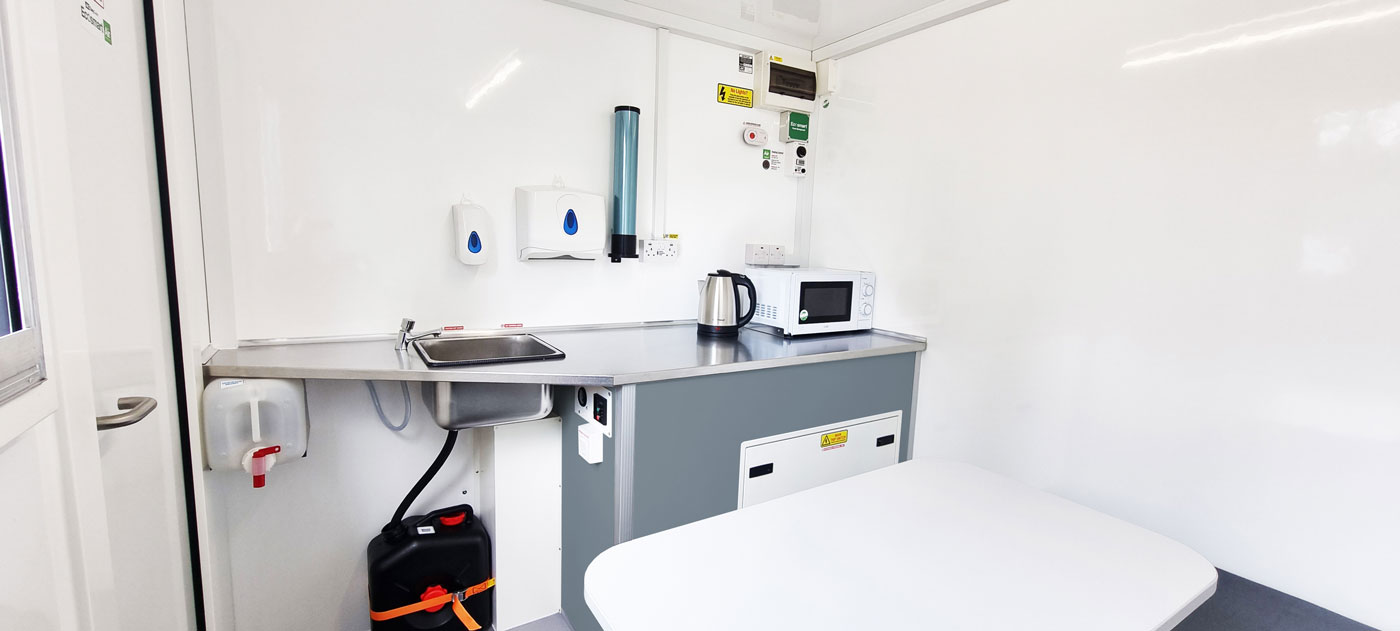

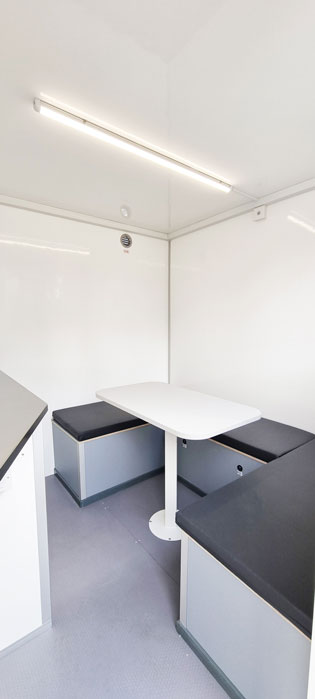

Canteen

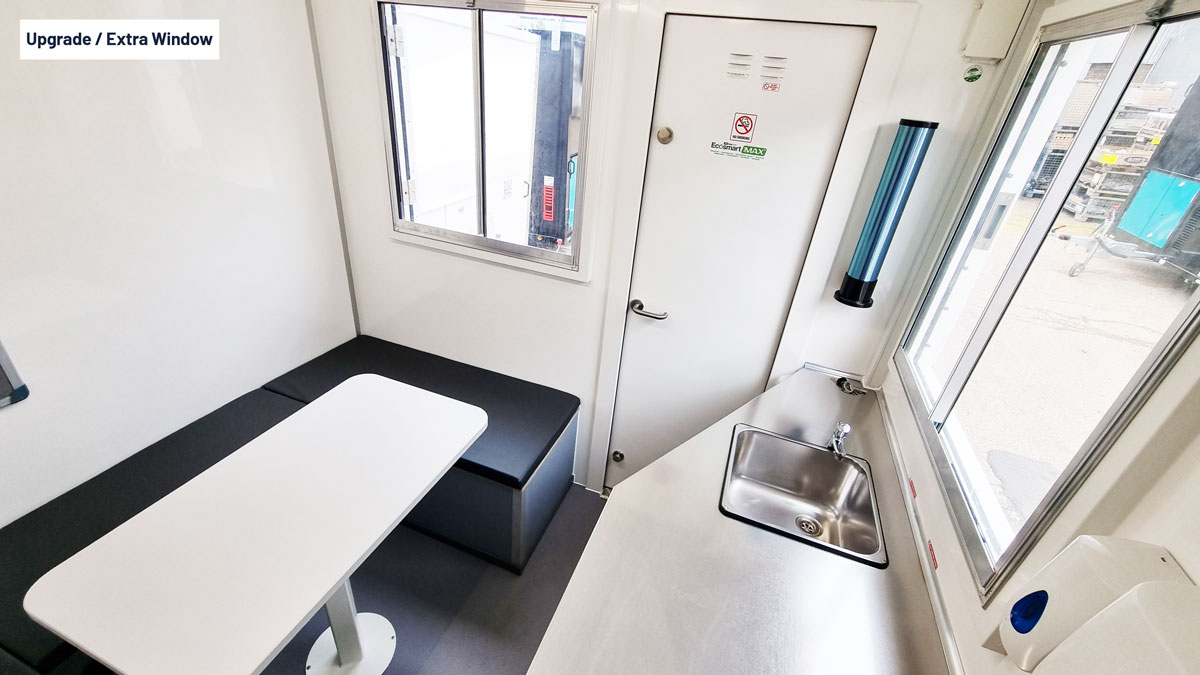

Table & bench seating
Running hot water
Electric 230v heating
Diesel ‘Air’ heating system (‘Air’ only)
Microwave / kettle
Durable stainless steel worktop

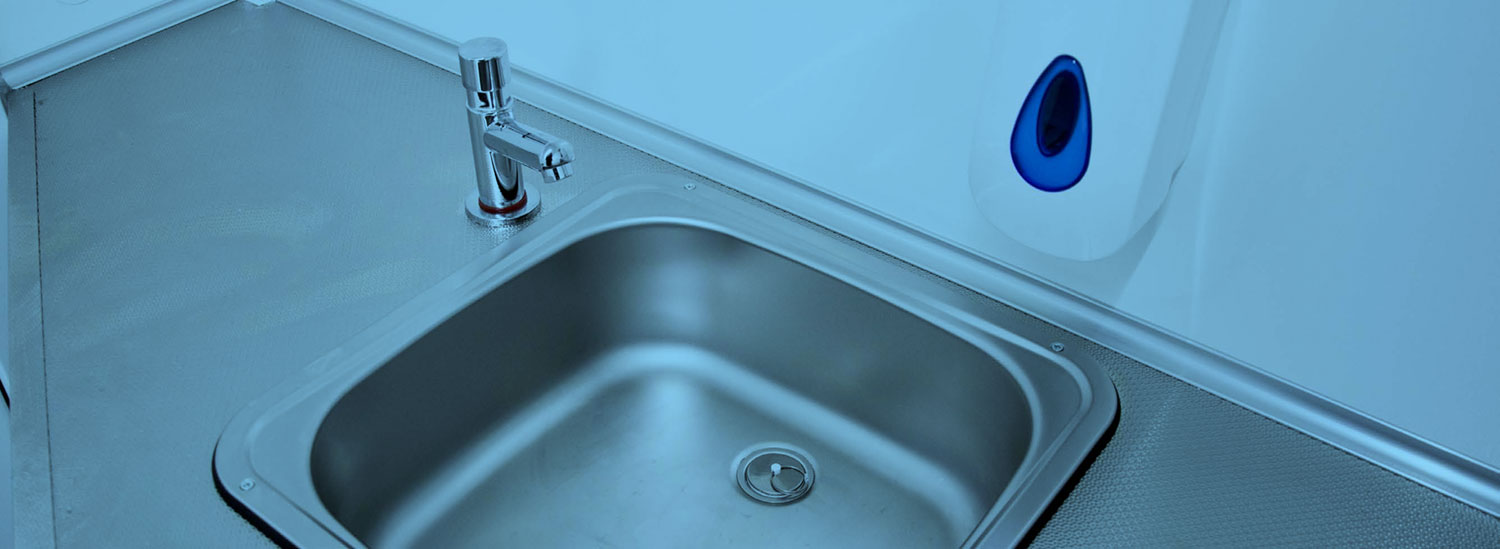

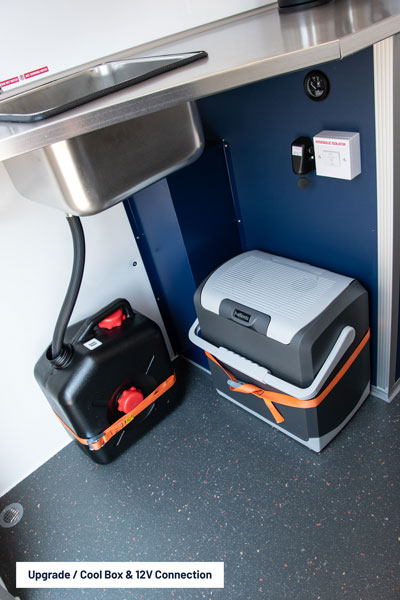

Stainless steel sink
PIR activated 12 volt LED lighting
Carbon monoxide detector

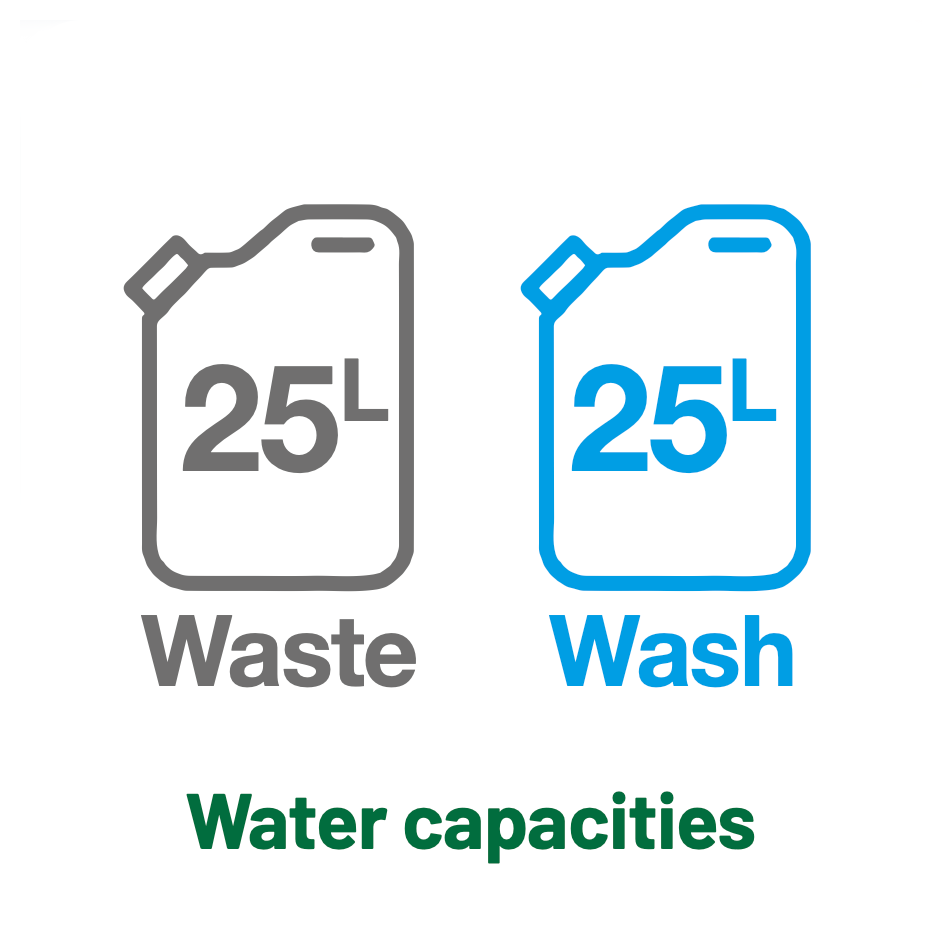

Fresh, waste & drinking water containers
Soap dispenser
Towel dispenser
Cup dispenser
Consumer unit with electrical certificate
Generator timed controller
Fuel gauge
USB Charging sockets
12 volt charging socket (‘Air’ only)
Low battery light indicator (‘Air’ only)
Digital battery monitor/voltmeter (‘Air’ only)

Power

High cycle AGM battery (‘Air’ only)
12v leisure battery
Battery protection
Battery charger

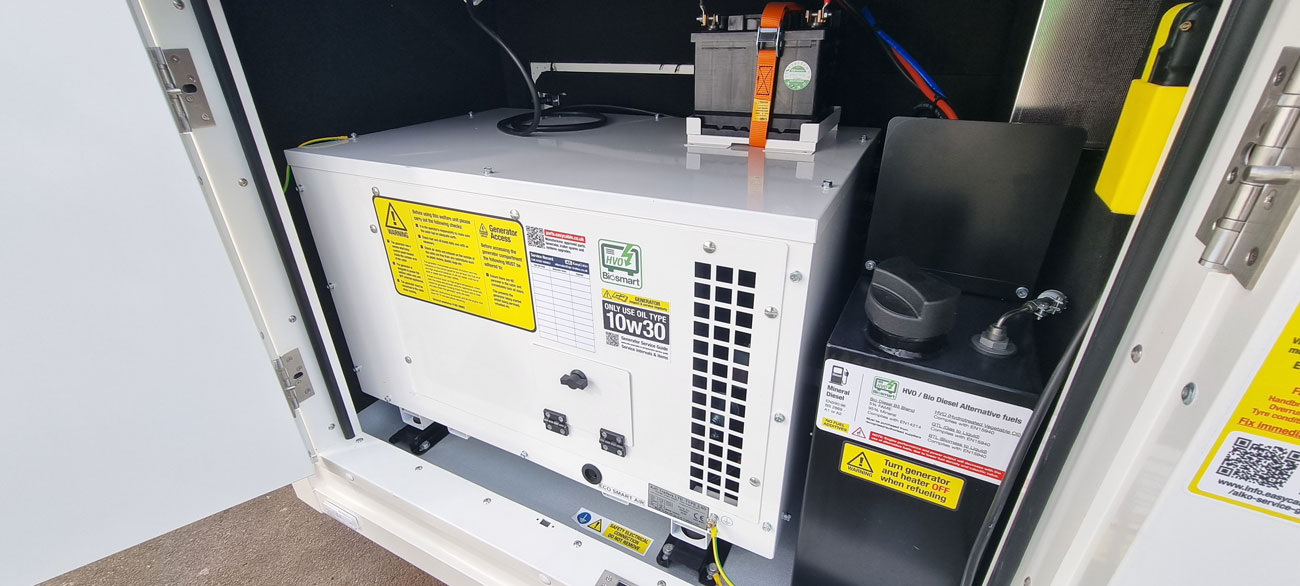

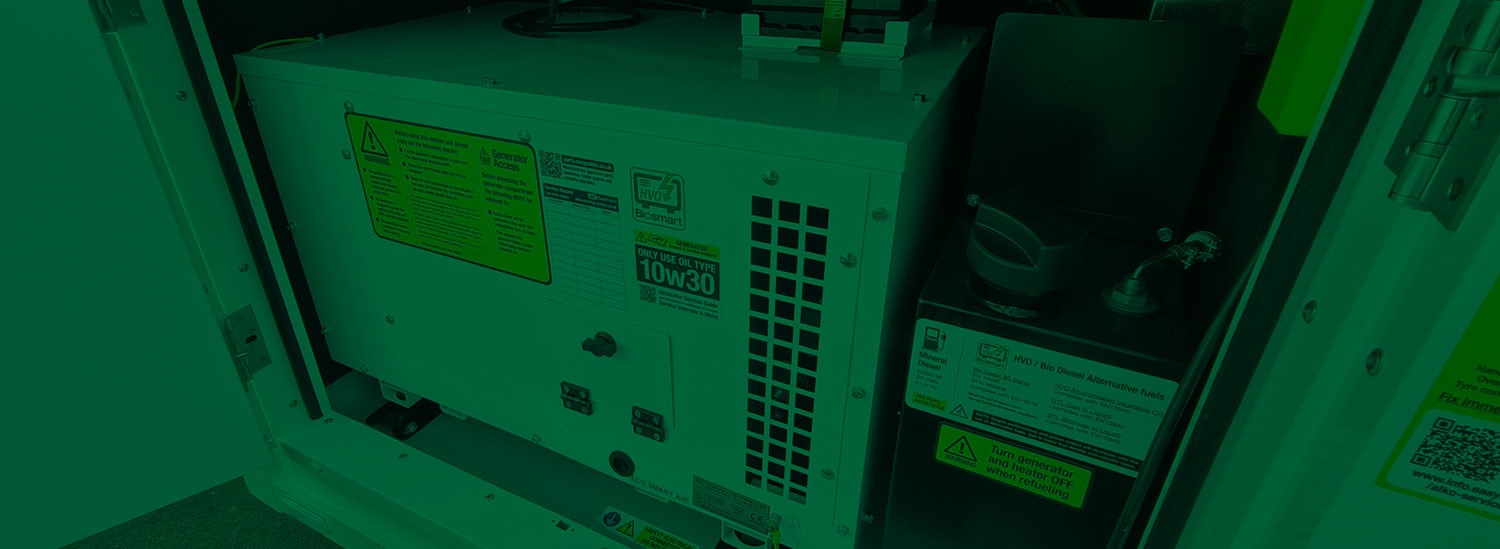

Diesel Kubota engine generator
Diesel tank
12 volt hydraulic pump
Low level fuel cut off

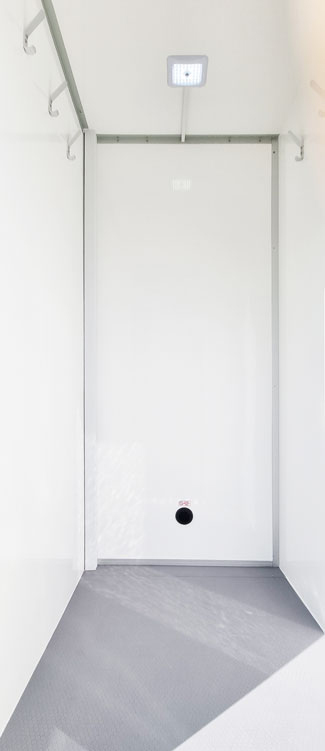

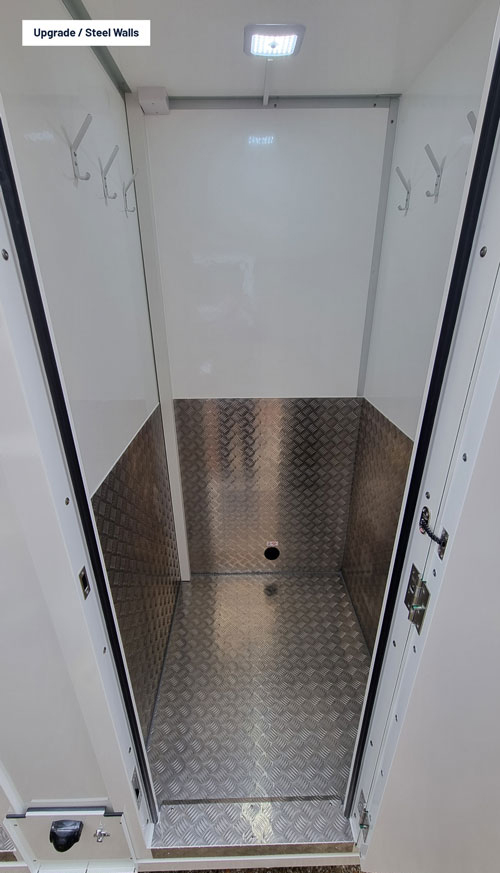

Drying Room

Coat hooks
PIR activated 12 volt LED light
Blown air heating outlet (‘Air’ only)
Electric 230v heating
Earth rod

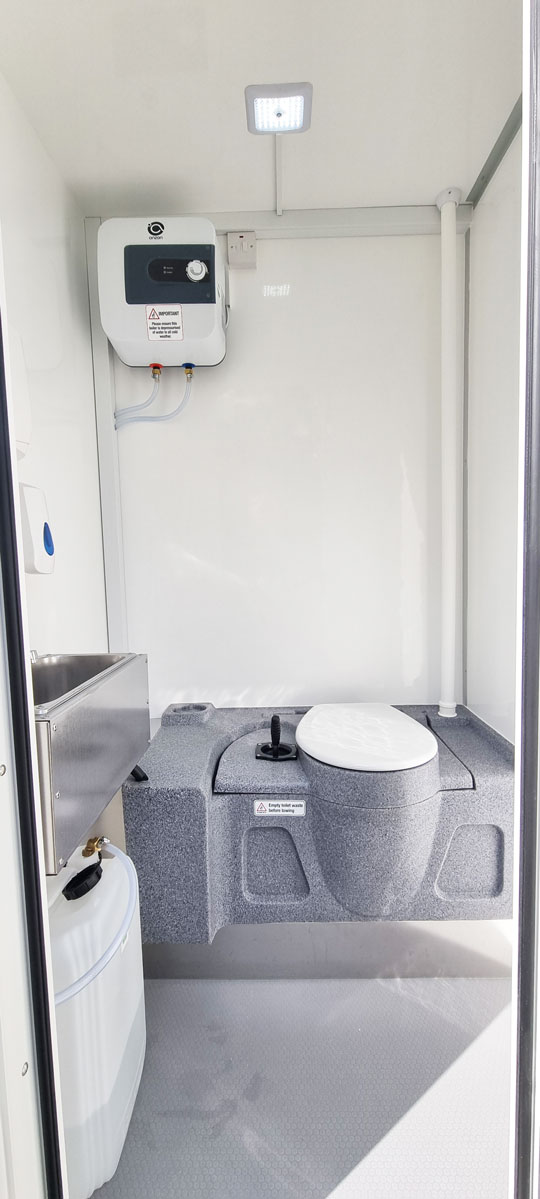

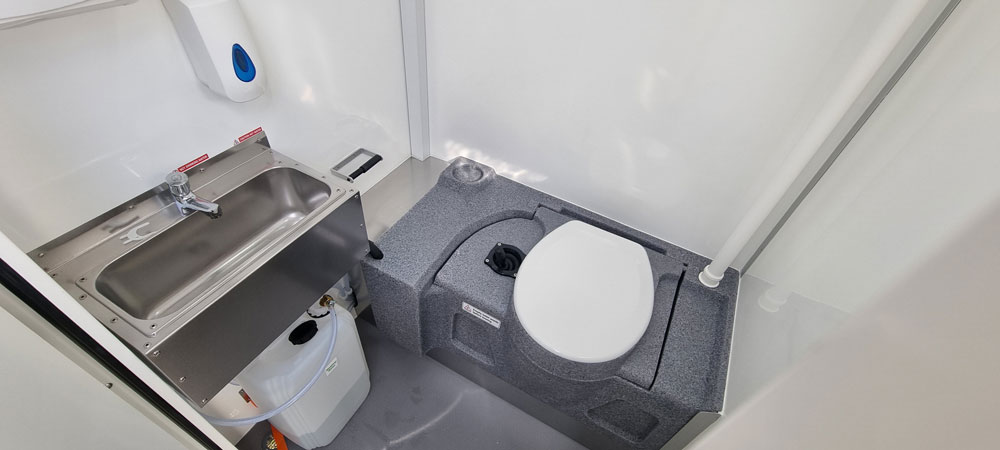

WC

Re-circulating flush tank toilet 80 litre capacity
Sink to wash up to forearm
Running hot water
Coat hook
Soap dispenser
Towel dispenser
Toilet roll holder
PIR activated LED light

Construction

Walls:

Constructed from unique patented (2448660) high strength composite panels. Galvanised steel exterior, seamless GRP interior and high-density foam insulation, provides rust-free and washable surfaces.

Roof:

Seamless insulated composite panel.

Floor:

15mm plywood with slip and wear resistant phenolic coating.

Wheels

195R 14” Low profile wheels & tyres.

Chassis

Heavy duty galvanised steel.

Axle:

Electric type approved hydraulic axle.

Doors:

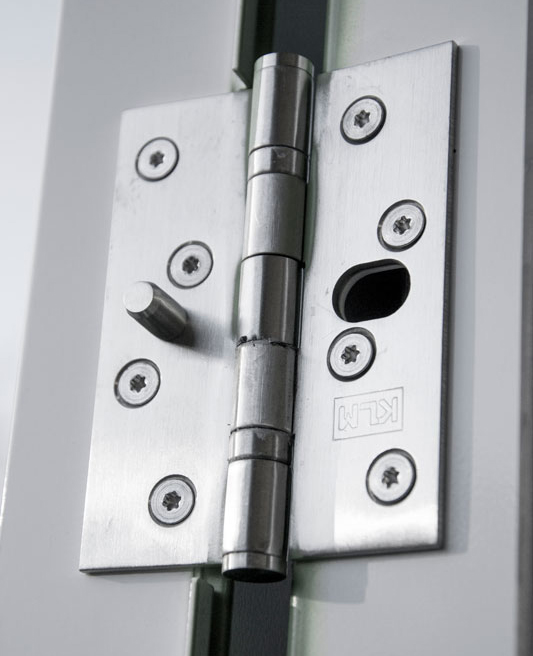

3 x high security composite doors with 2 deadlocks. Double doors to generator with 2 deadlocks.

Window:

Aluminium. Security door locked internally with thumb turn deadlock.

Lights:

Built in road lights with removable number plate brackets.

Weight:

Gross weight 1900Kg - Unladen weight ONLY 1650Kg

Compliant

Approved

Running stats

6h

Without generator⁽¹⁾
4h

Without generator⁽¹⁾

Energy savings - Compared to a standard 6Kva system

All our figures are calculated based on REAL- LIFE daily usage,taking into account the use of appliances & heating in wintertime and summertime. A full energy presentation is available on request.

Based on 10 hours per day for 260 days, 80 days in winter mode and 180 days in summer mode. Each day is a typical usage day. 6 Persons accommodated. £1.70p per litre Diesel / HVO. £60 per H2 Bottle..
Solar panels achieve maximum output in direct sunlight, but they work in normal daylight and cloudy weather too. The amount of power a solar panel or charging kit generates in cloudy weather will be lower compared to direct sunlight. Also the positioning of the cabin will affect the solar charging of the batteries i.e. under trees, etc. This assessment doesn’t take in consideration the usage of the hydraulics. This assessment is guidance only.

Optional Extras

Optional extras & upgrades

available on this product. Click for more info.

Non-hydraulic axles

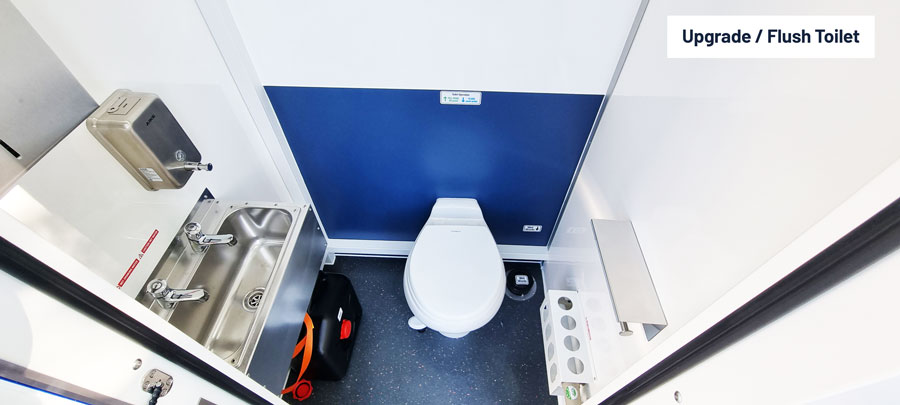

Ceramic flush toilet
Available as a static unit
Custom layouts on request
Pin boards
White boards
Spare Wheels
Decals / Branding

Downloads

DOWNLOAD EcoSmart12 brochure

EcoSmart 12 - model comparison

Range Overview	12	12 EcoSmart	12 Xtra EcoSmart
Hydraulic axles
EcoSmart Box
Canteen type	Large	Large	Space saving
Seating	x6	x6	x8

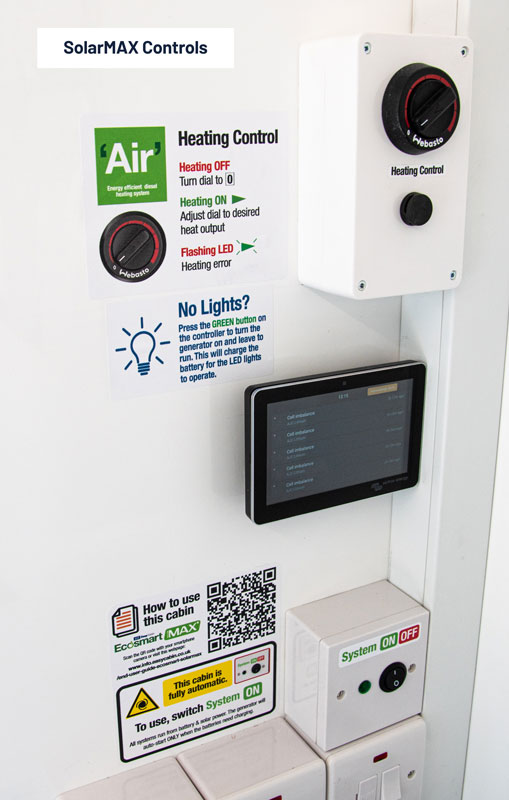

Increase efficiency with ‘Air’ Diesel heating upgrade

SHOW DETAILS

Energy efficient diesel heating upgrade.

Costs, Fuel consumption, Emissions, Noise.

Includes
battery monitor.

‘Air’ – a diesel heating system that saves energy, reduces carbon emissions and noise compared to our standard heating. Up to 78% better fuel economy.

MORE WARMTH: More heat produced from less energy.
AUTOMATIC: Thermostatic control for continuous cabin temperature.
EASY: Just turn the system on and enjoy.
EFFICIENT: Low fuel and power consumption, suitable for long periods of operation.
QUICK: Short heating-up times.
QUIET: No need for the generator to be on for heat to be produced.
ALSO INCLUDED: Upgraded batteries, battery monitor, 12v USB charge sockets.
SAVE MONEY ON OPERATING COSTS (compared to standard heating)
STANDARD HEATING: Heating on with generator running @ 75% load = 1.2 litres per hour
‘Air’ HEATING: Heating on max = 0.28 litres per hour (Saving of 0.92 litres per hour)
UPGRADED BATTERY: Gives more continuous LED lighting time (es12 = 10 hours, es16 = 8 hours)

Up to 78% better fuel economy for the same heating time

Contact EasyCabin for details on the ‘Air’ heating system.

As standard: HVO diesel compatible heating & power

BIOSMART HVO

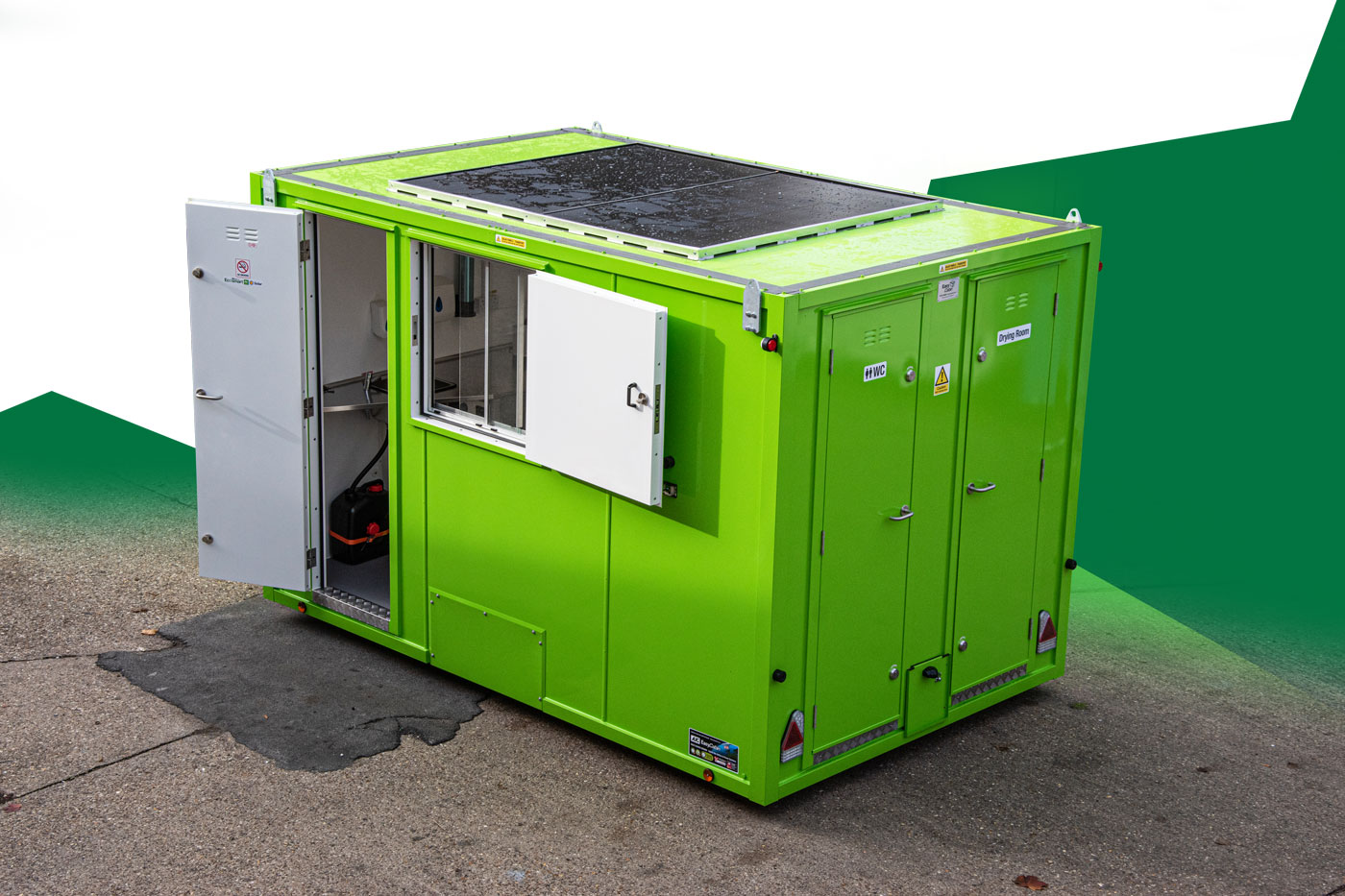

Harvest the sun's FREE energy with solar panels

SOLAR UPGRADE - UP TO 55% FUEL SAVINGS SOLAR MAX - UP TO 96% FUEL SAVINGS

Ecosmart ZERO. Large solar panels + Backup hydrogen fuel cell = NO local CO2 emissions

UPGRADE ZERO EMISSIONS

Media Gallery

As part of our on-going commitment to improvement we reserve the right to alter specifications, designs or figures, without prior notice. All dimensions and weights are approximate.

(1) Figures quoted based on “optimum use”, with the generator not running, no appliances used & no hydraulics used within the stated time period.

(2) While in un-hitched state, timed from the start of the axle retract sequence, until the unit is seated and the cabin door is opened.
