Modular Solar Panels for Temporary Sites, Cabins & Containers

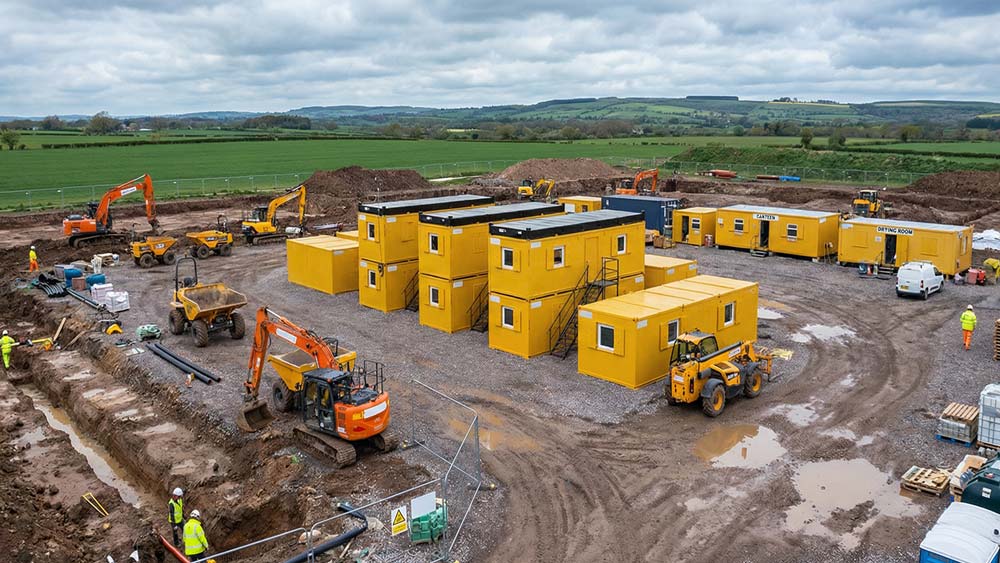

Solar Smart Panels are a bolt-on, plug-in solar power solution designed to instantly reduce fuel consumption, emissions and running costs on temporary sites. Part of the AJC Power Solutions Solar Smart Site system, Solar Smart Panels deliver clean renewable energy directly into site cabins, containers, Battery Pods or Solar Pods, with no complex installation required.
Whether used on their own or as part of a complete hybrid setup, Solar Smart Panels turn temporary accommodation into a mobile renewable energy source.

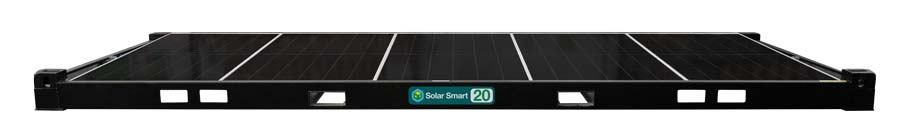

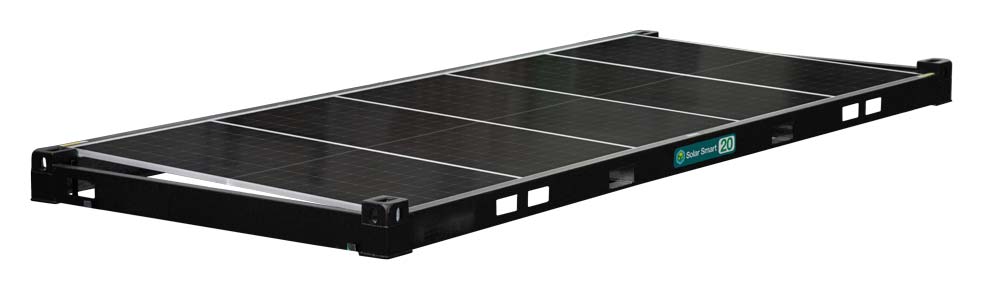

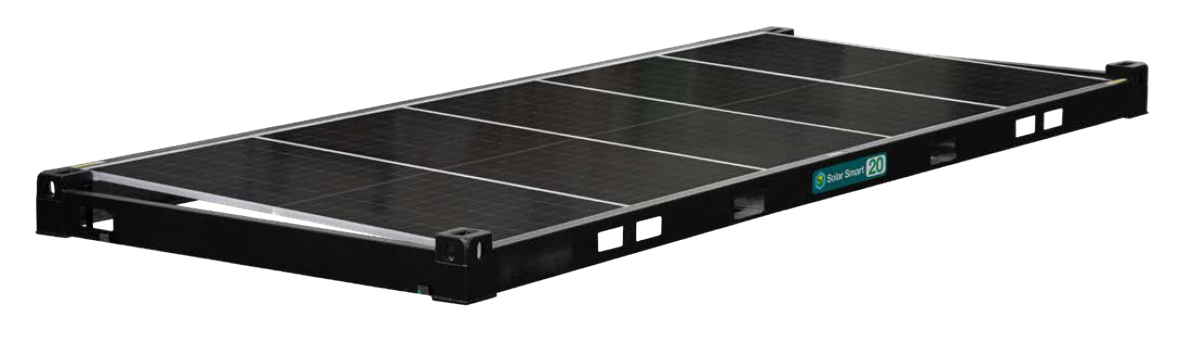

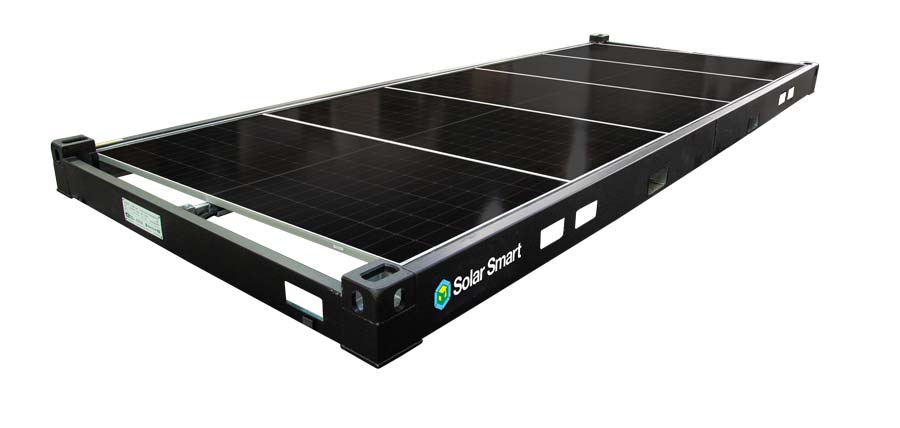

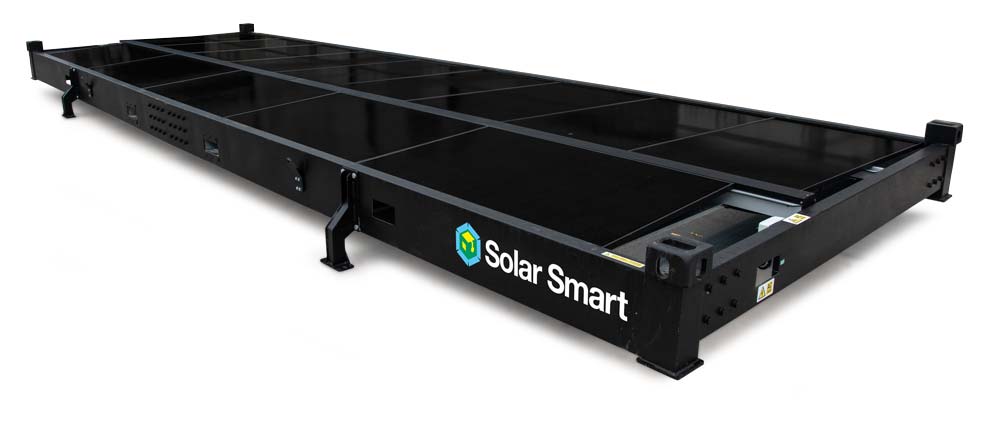

The Solar Smart Frame is engineered to make temporary accommodation, welfare units and containers significantly more eco-friendly. Available as roof-mounted or floor-standing solar frames, each unit provides up to 5kW of solar power, helping to power entire site setups when combined with other AJC Power Solutions products.

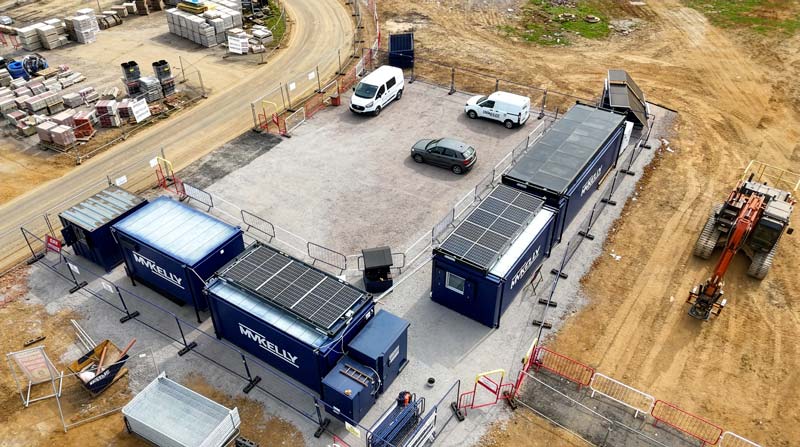

Used alongside a Solar Pod or Battery Pod, Solar Smart Panels can dramatically reduce generator runtime, fuel use and CO2 emissions, while improving energy resilience on site.

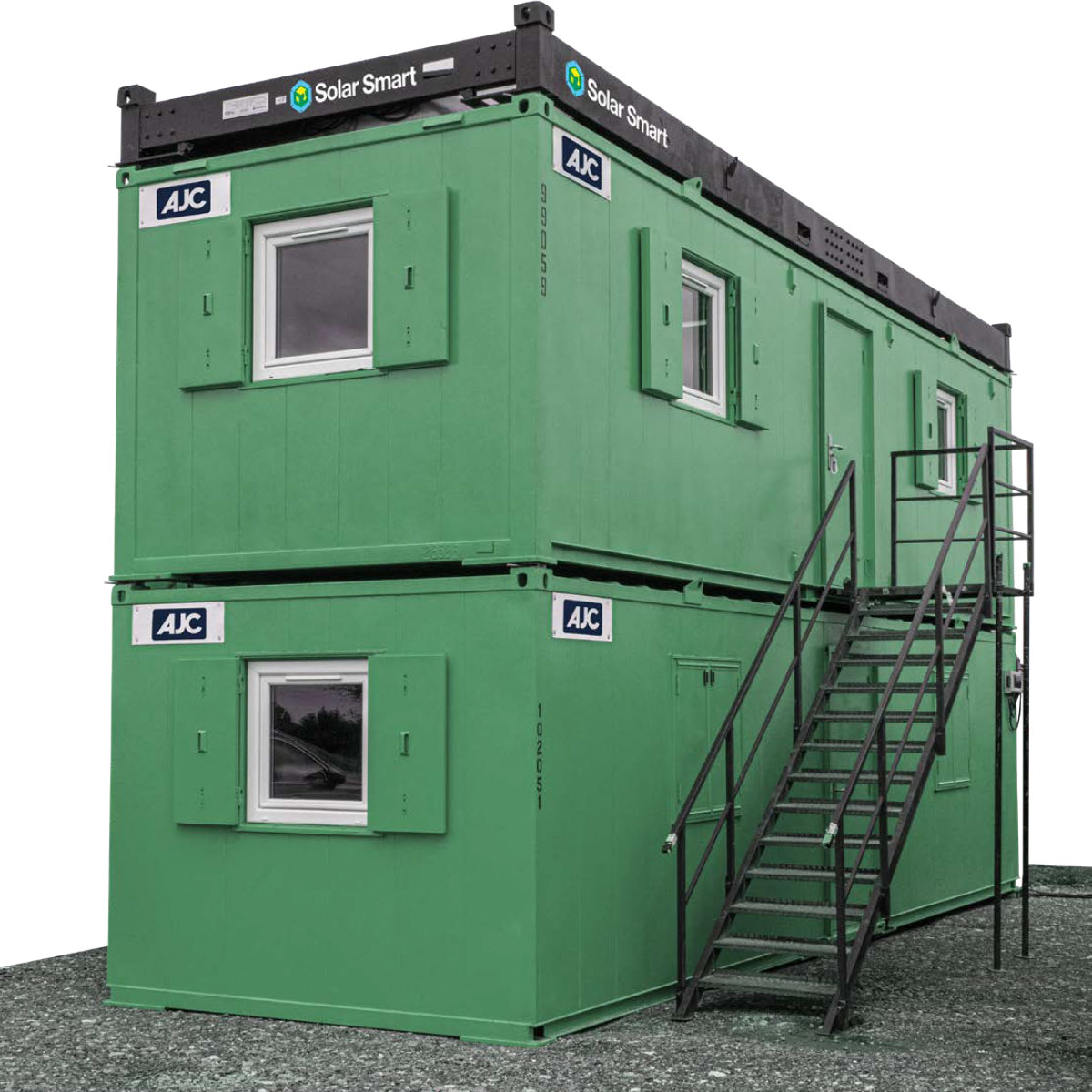

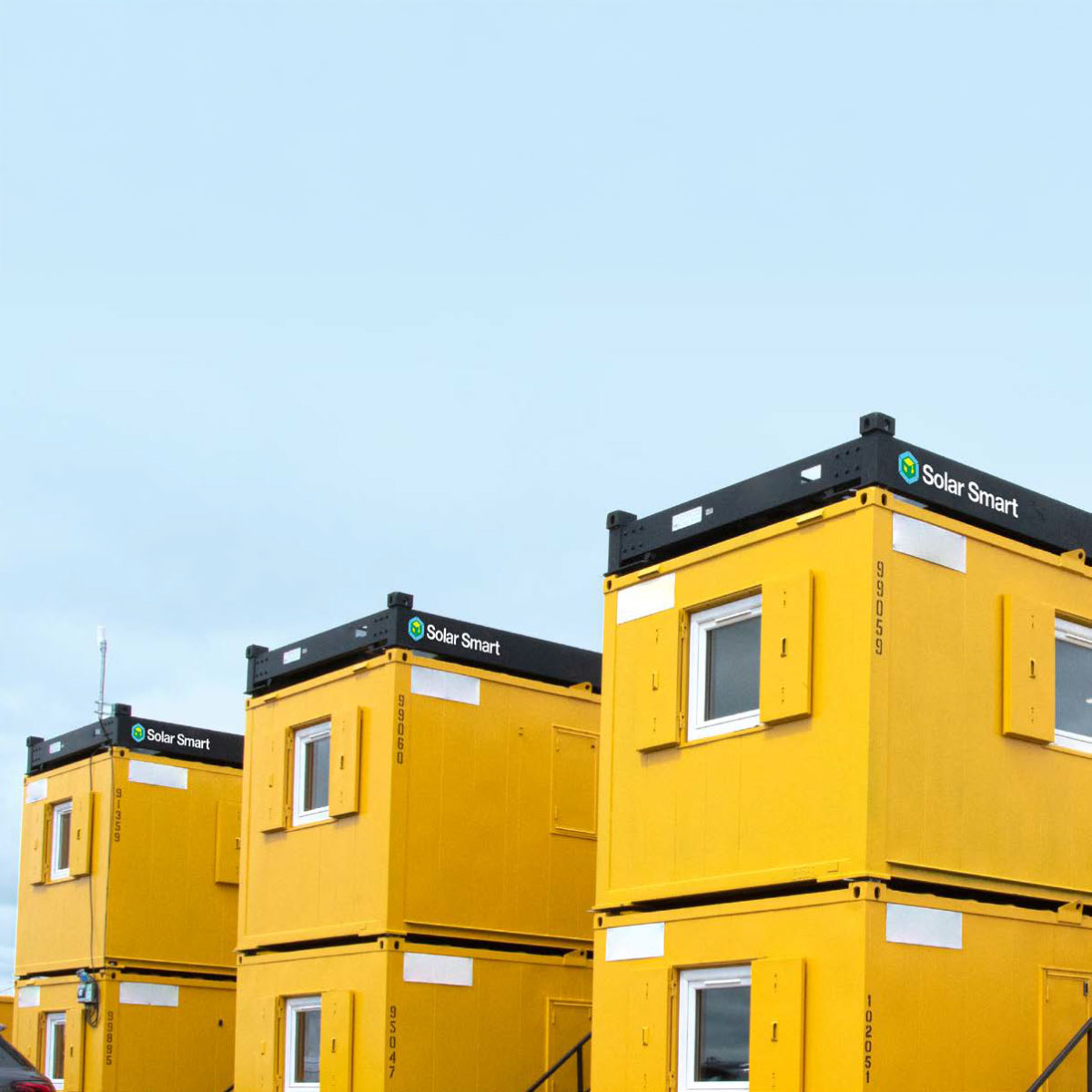

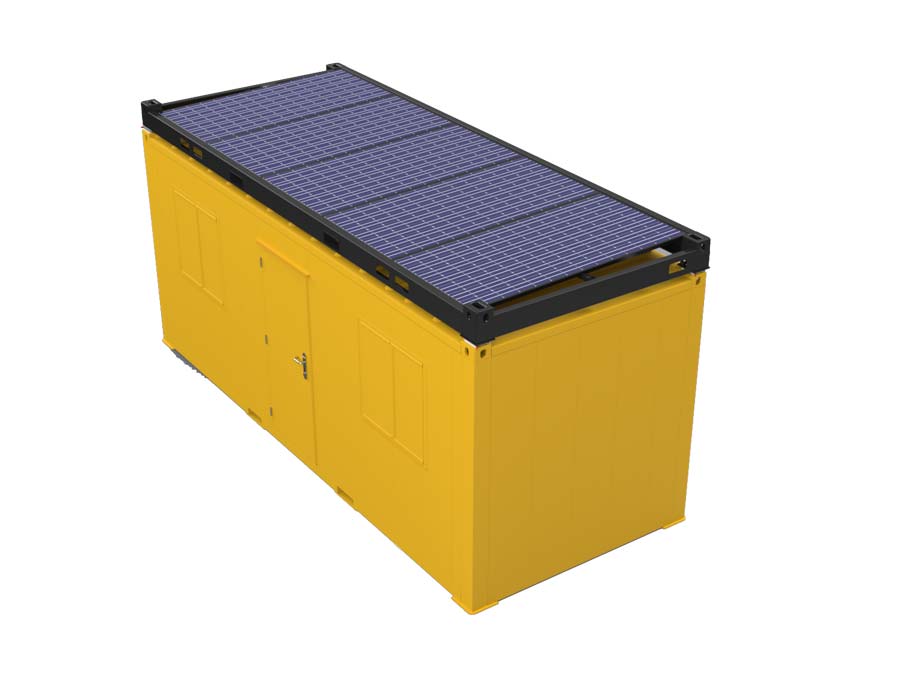

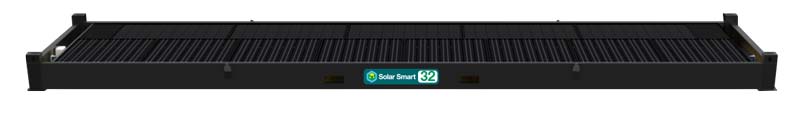

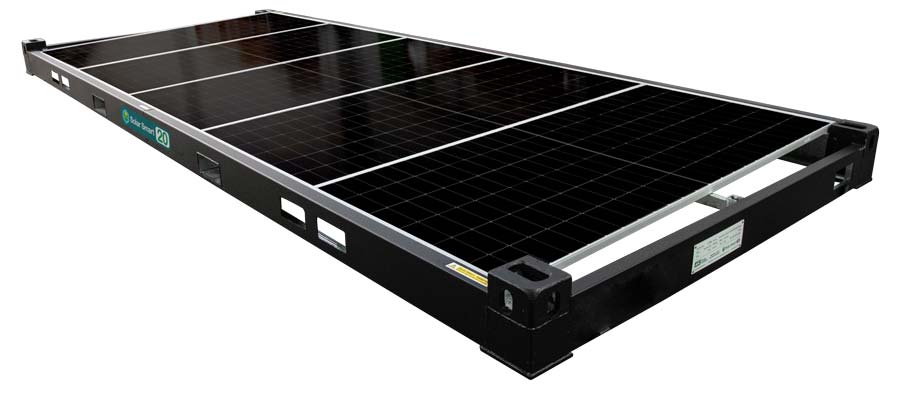

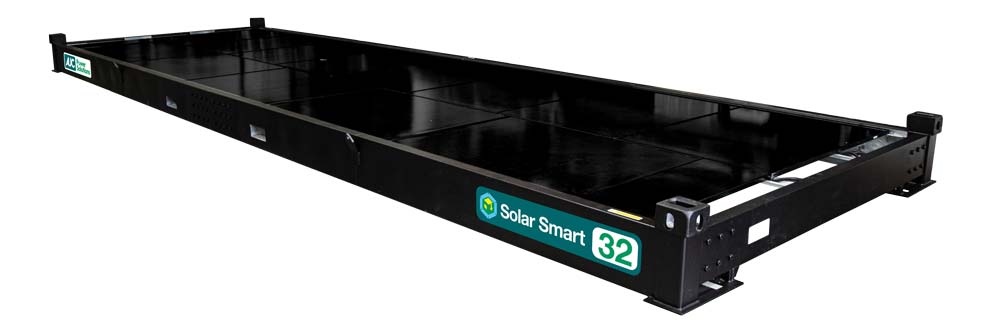

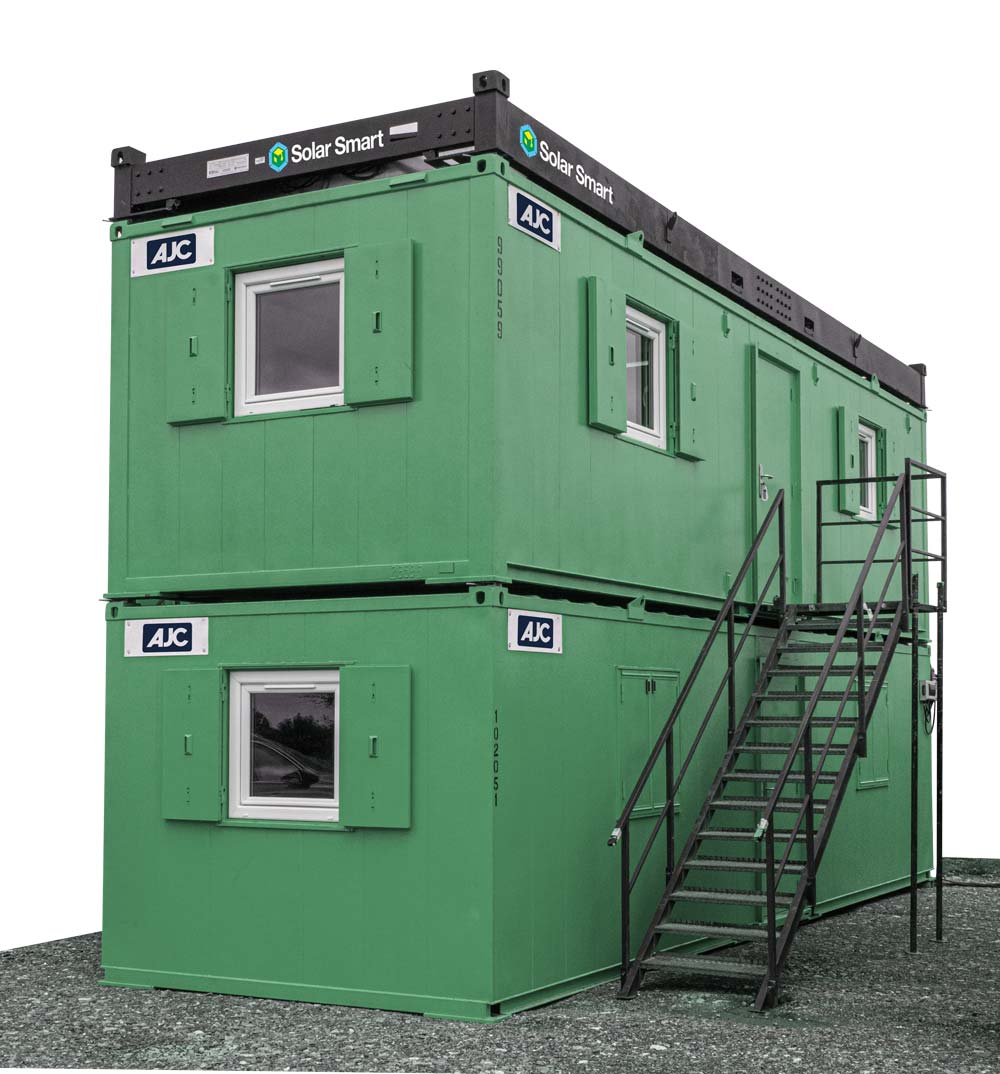

Each Solar Smart Frame can transform every 20ft or 32ft cabin or container roof into a renewable power asset.

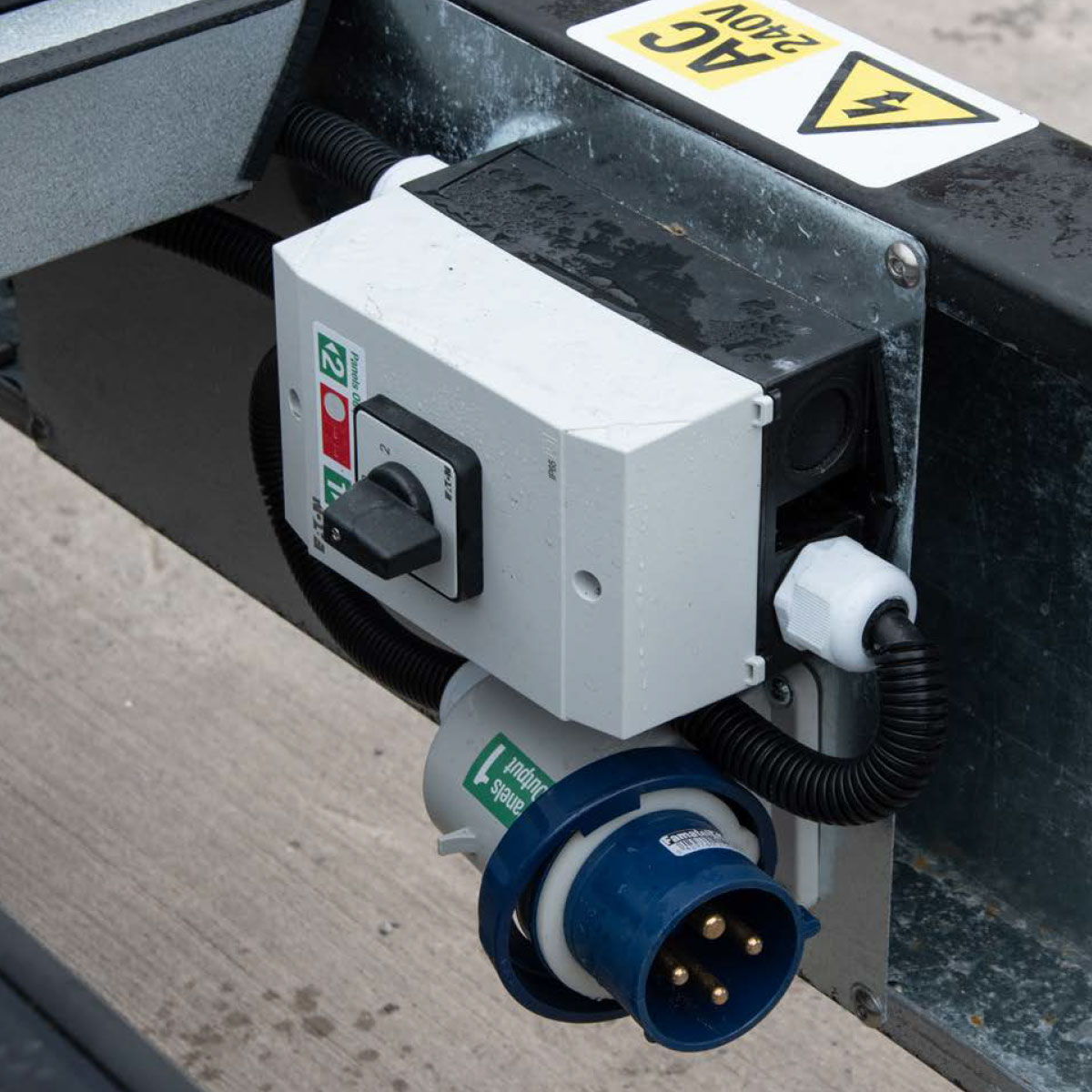

2700W, 240v AC or DC connections.
5200W, 240v AC or DC connections.

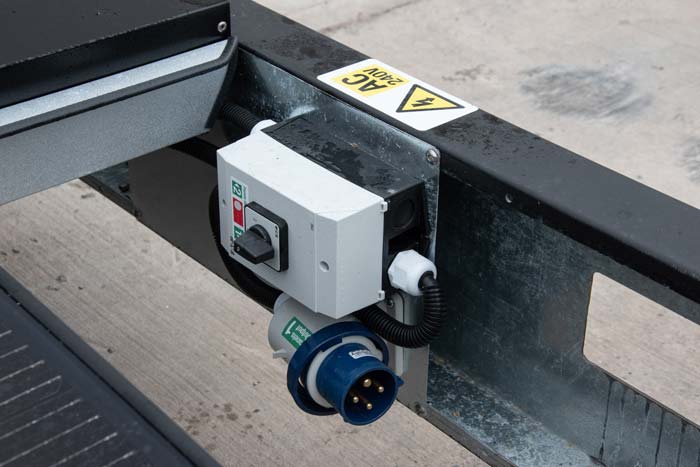

Just plug in and use. Solar power flows directly into your cabins, mixing with your current mains power, BESS or generator setup. Reducing demand.
Reduces on site CO2 emissions with lower generator demand.
Large solar yield, especially in summer months.
Built for a tough life. Galvanized frame. Resistant to water & rust.
Reduce runtime of generators connected to the setup.
Single phase power
Reduce mains power demand when connected to a mains setup.

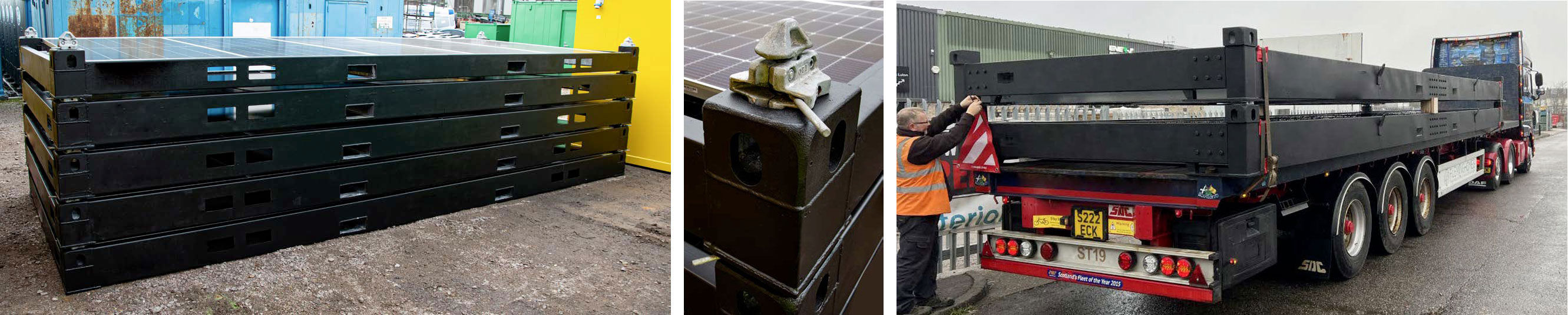

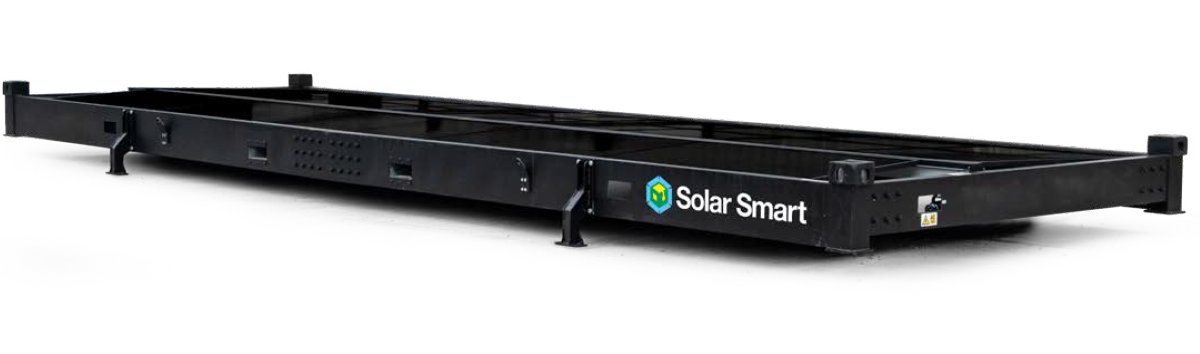

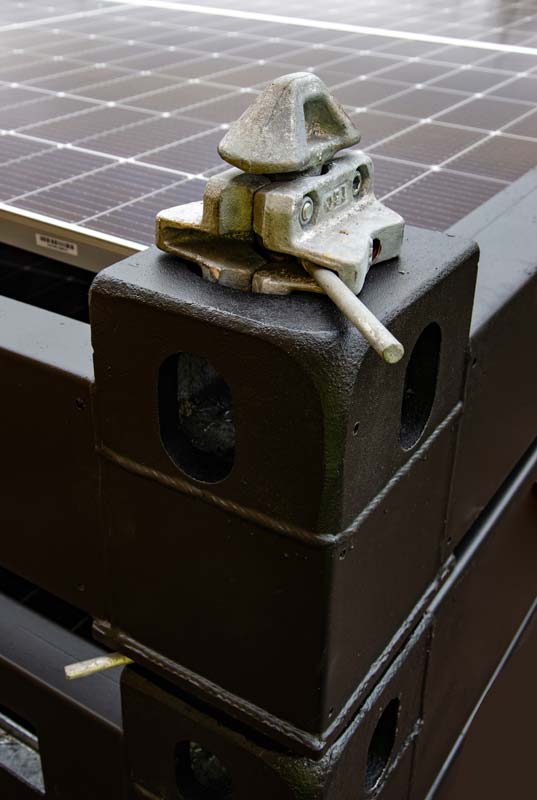

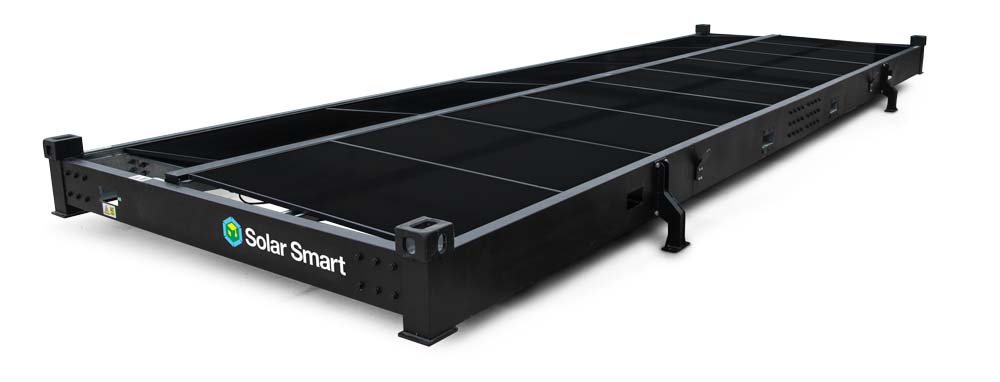

Corner ISO Clamps or optional Jack-leg supports. Easy Storage and transport up to 6 stacked.
Solar Smart Panels are designed for speed and simplicity:
No permanent fixings. No specialist installation. Just clean solar energy where you need it.
Every Solar Smart Frame can operate independently or be cascaded with additional frames to increase solar input across larger sites.
This modular approach allows you to scale up or down depending on project size and duration.
Each Solar Smart Frame also acts as a sunshade for cabins and containers:

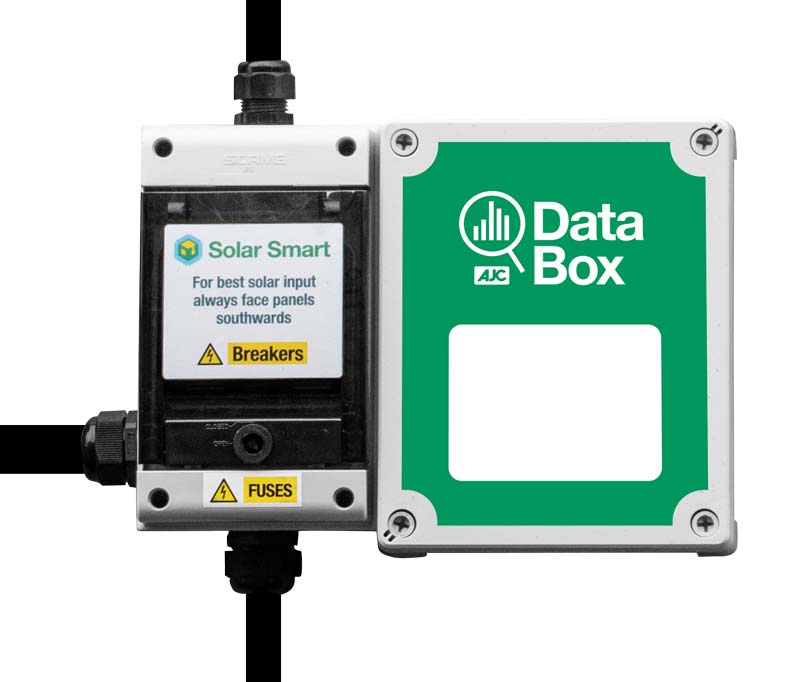

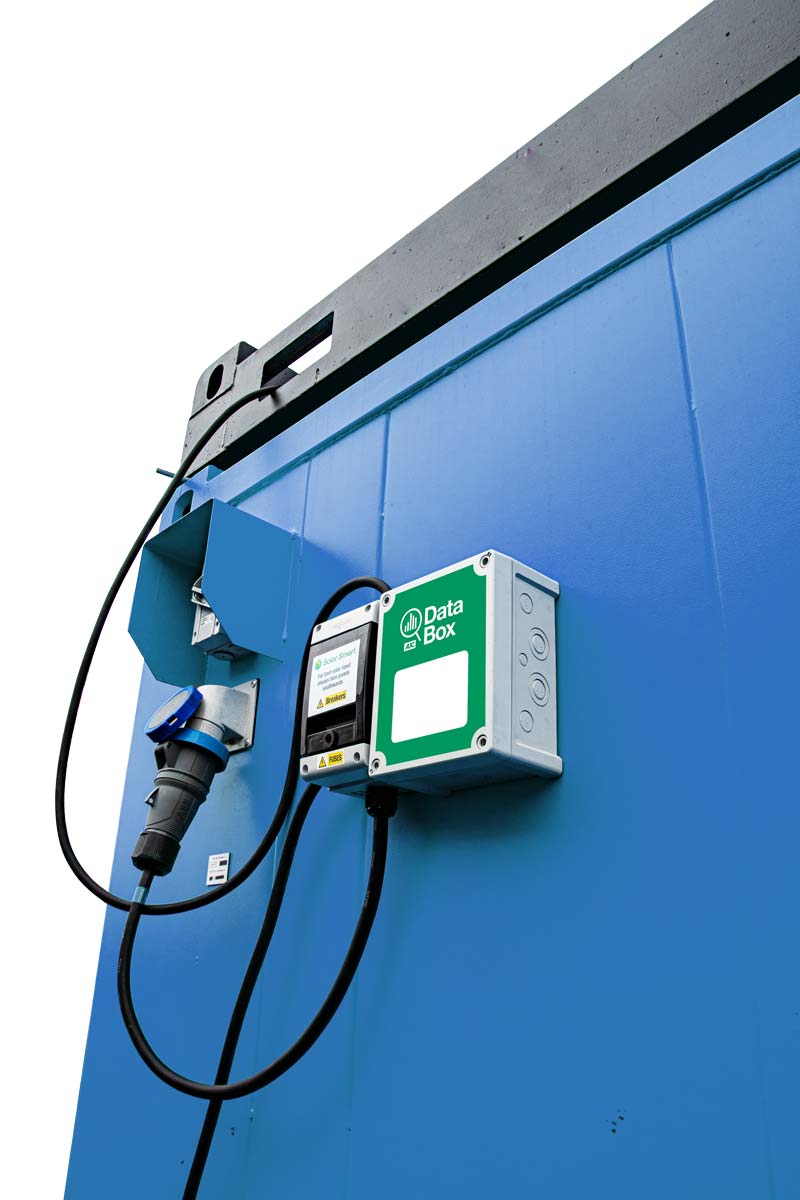

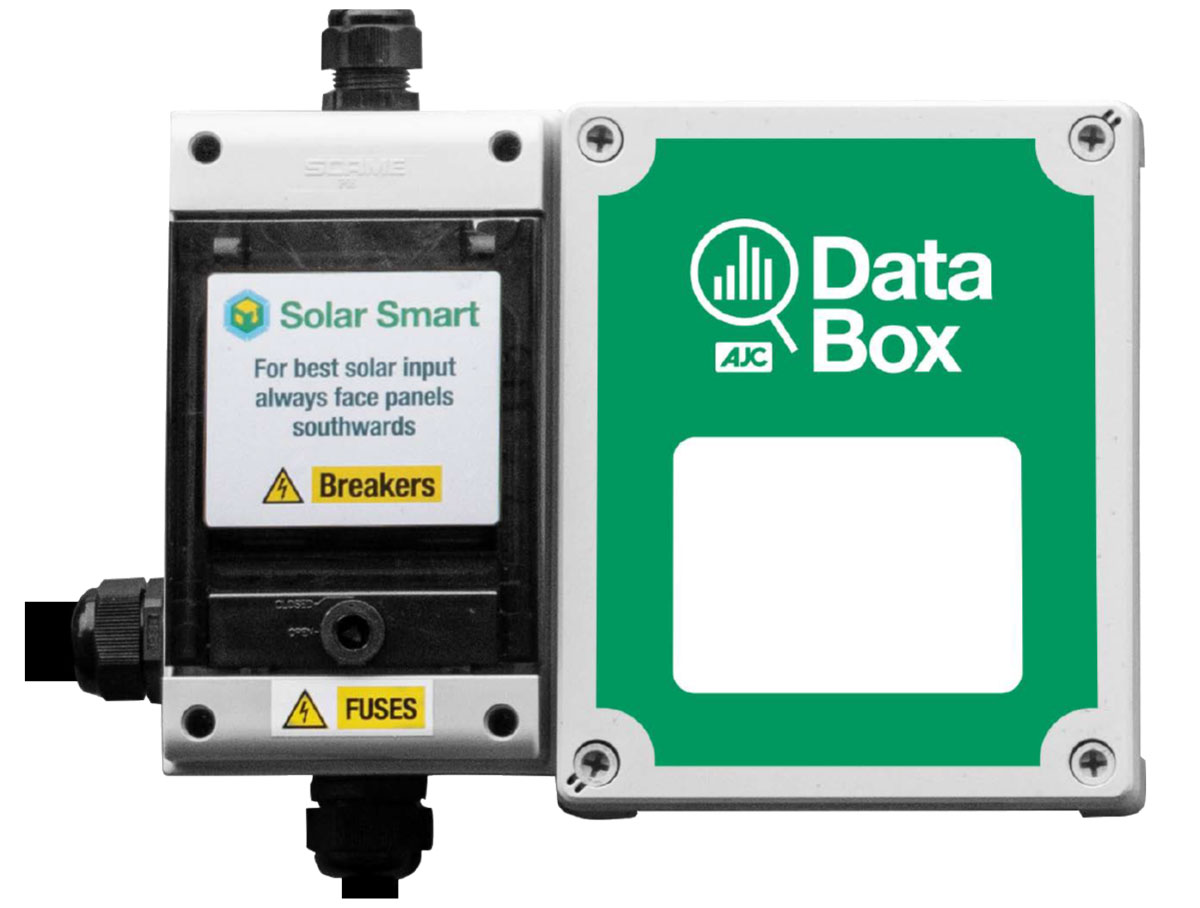

Solar Smart systems can be paired with intelligent monitoring hardware to manage and protect solar input:
Designed to integrate seamlessly with Battery Pods, Solar Pods and wider site power infrastructure.
NOTE: As part of our on-going commitment to improvement we reserve the right to alter specifications,
designs or figures, without prior notice.
All dimensions and weights are approximate. Images shown include non-standard upgrades.
| LENGTH | 2430 mm | 20 ft |
| WIDTH | 6050 mm | 8 ft |
| HEIGHT | 280 mm | 0.9 ft |
| GROSS | 610 kg | 1345 lb |
| LENGTH | 3048 mm | 32ft |
| WIDTH | 9754 mm | 10 ft |
| HEIGHT | 478 mm | 1.5 ft |
| GROSS | 1275 kg | 2875 lb |
