Construction Site Welfare Facilities

16ft Welfare Unit

The Ecosmart 16 provides a modern solution to mobile welfare facilities on-site for up to 12 people. Featuring a modern and easy to maintain separate toilet and drying room, without any compromise on canteen space. Construction site welfare facilities need to be functional and practical but still comfortable, the Ecosmart 16 provides just that. This 16ft welfare unit has many features, such as smooth and easy-to-clean surfaces, high-strength deadlock security doors and USB charging slots. The hydraulic axles are unique for construction welfare facilities and enable the unit to be set up within 30 seconds. Workers are able to relax on the comfortable bench seating, heat up food with the microwave and relax with a warm cup of tea during their breaks. The 16ft catering unit’s modern open plan layout provides a sociable place for workers to grab a bite to eat during their breaks. You can also upgrade to zero emissions and solar panels if you should desire.

If you are looking for high-quality 16ft welfare units that will provide remote locations with everything you could possibly need, you definitely came to the right place.

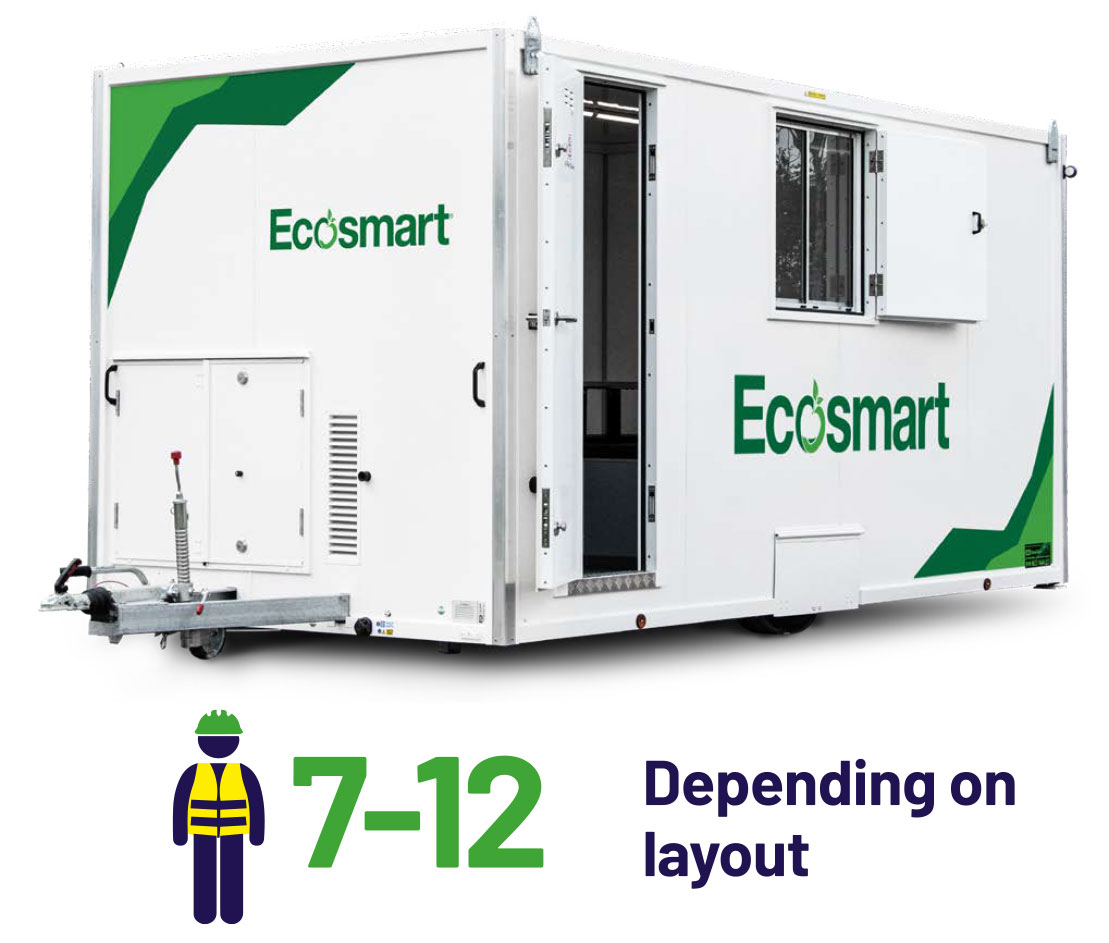

The Ecosmart 16 provides canteen facilities for up to 12 persons, with a separate toilet, drying room and ample space to rest and eat.

Canteen and bench seating for up to 12 people
Separate toilet and drying room
Unique hydraulic axles for setup in 30 seconds
Optional office space and extra seating
Upgrade with ‘Air’ efficient diesel heating system

Why Choose This 12 Person Welfare Unit?

The Ecosmart 16ft welfare unit is the latest development in sustainable on-site construction welfare facilities. Fitted with a table and bench seating, the Ecosmart 16 has running hot water both within the kitchen and toilet, heating system and microwave + kettle. The unit is fitted with stainless steel worktops, a stainless steel sink & seamless high gloss wall surfaces for effortless cleaning and long durability. This 12 persons welfare unit has been specifically designed with convenience and practicality in mind, making it the ideal addition to any remote location.

The Ecosmart 16 has a host of environmentally sensitive features, including PIR activated lighting that helps to cut down on energy use and cost. You do not need to worry about extreme costs when you choose our 16ft welfare unit. When you choose our construction welfare facilities, there is no need to compromise.

For more information about our construction site welfare facilities, call today on 01582 486663 to speak to a member of our friendly team.

2145kg

Unladen weight

2240kg

Gross weight

W 2420
L 4910
H 2680

Dimensions (mm)

45s

Quick & easy setup⁽²⁾

UP TO6h

Without generator⁽¹⁾

UP TO4h

Without generator⁽¹⁾

Available Layout

Explore the available layouts of the Ecosmart 16 welfare units below:

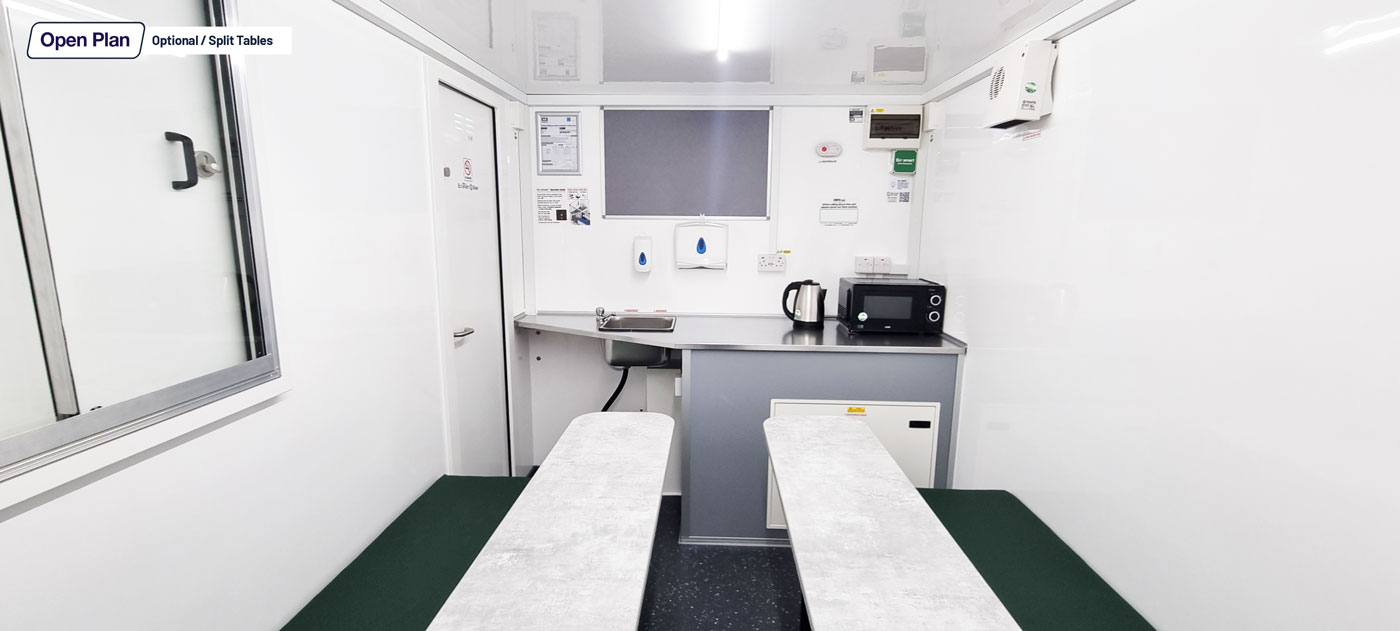

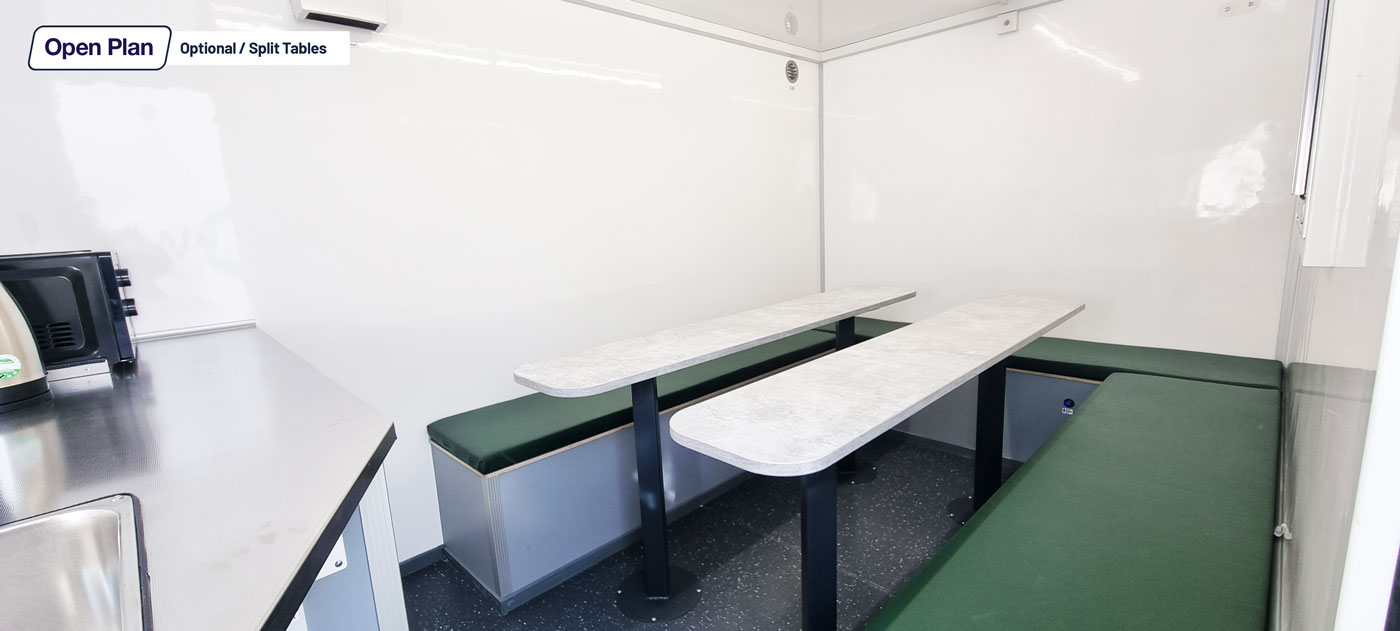

Open plan
layout

Bench seating for 10

Separate drying room & toilet

+ (office)
layout

Bench seating for 7

Office space

Separate drying room & toilet

Xtra
layout

Bench seating for 12

Space-saving canteen

Separate drying room & toilet

Xtra +
layout

Bench seating for 10

Space-saving canteen

Separate drying room & toilet

Specifications

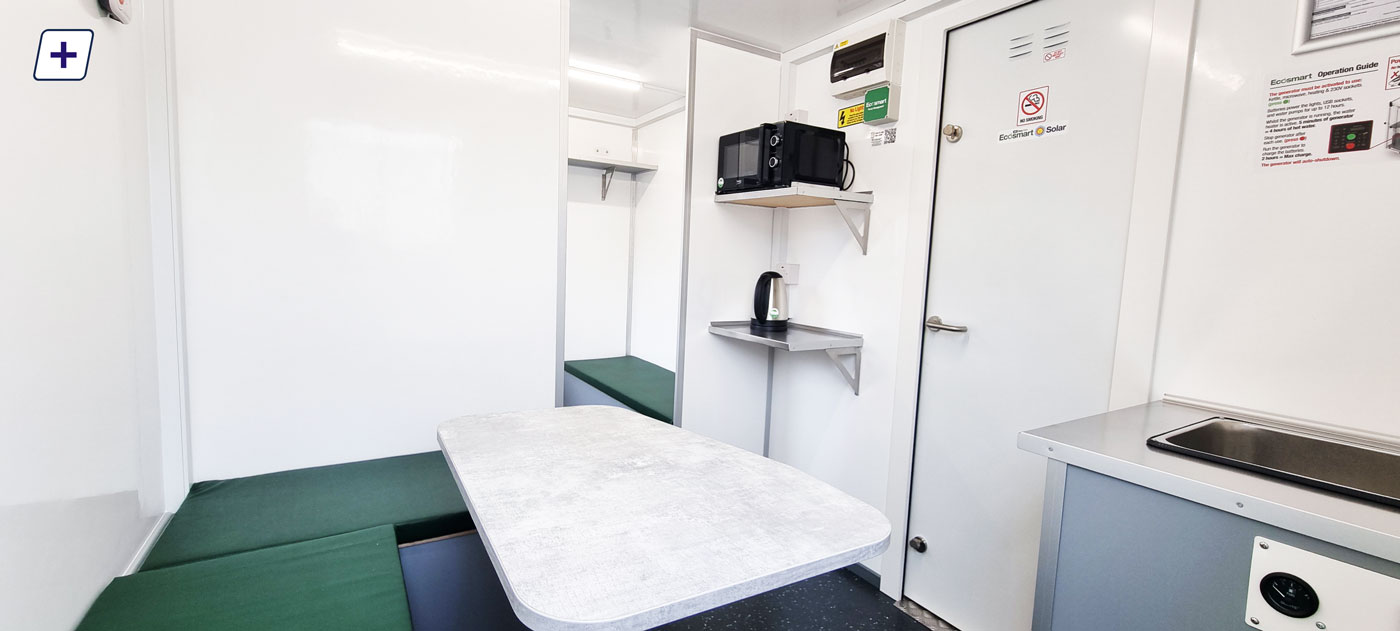

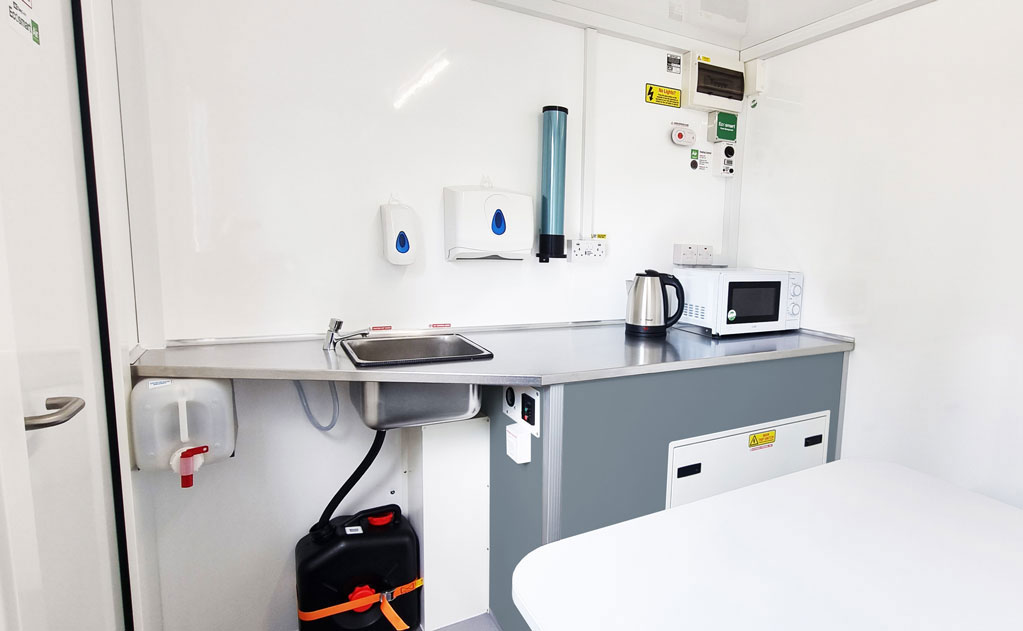

Canteen

Table & bench seating
Running hot water
Electric 230v heating
Blown ‘Air’ heating system (‘Air’ only)
Microwave / kettle
Durable stainless steel worktop

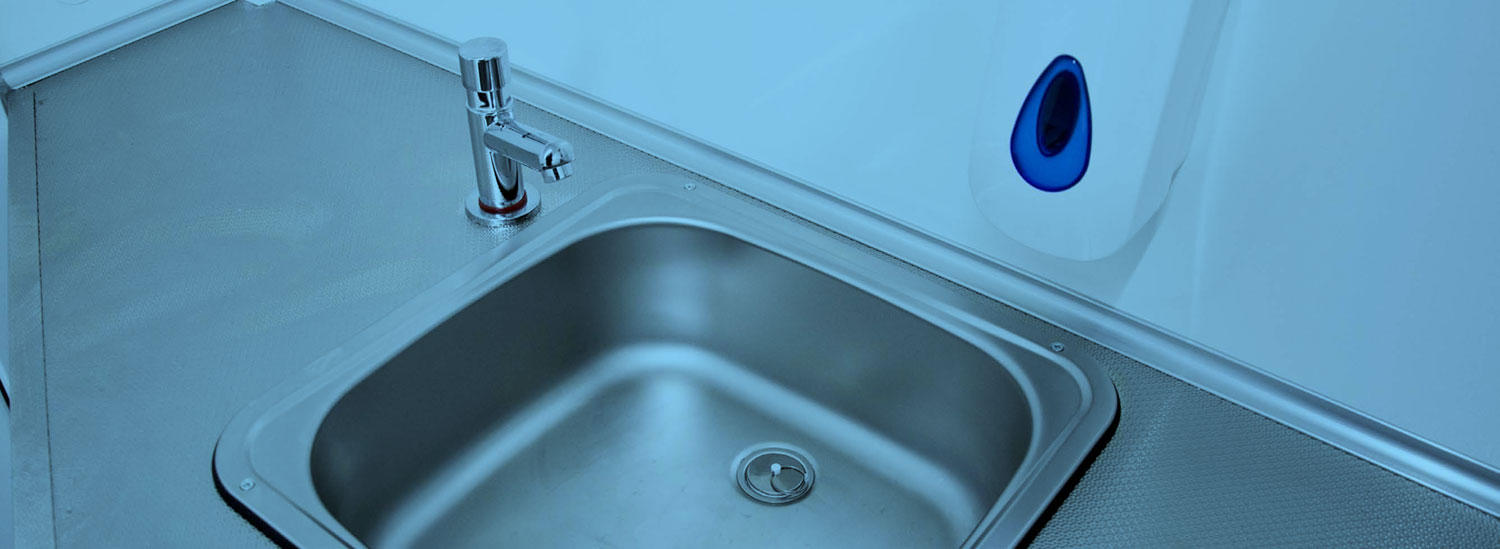

Stainless steel sink
PIR activated 12 volt LED lighting
Carbon monoxide detector
Fresh, waste & drinking water containers
Soap dispenser
Towel dispenser
Cup dispenser
USB Charging sockets
12 volt charging socket (‘Air’ only)
Low battery light indicator (‘Air’ only)
Digital battery monitor/voltmeter (‘Air’ only)
Consumer unit with electrical certificate
Generator timed controller with hour meter
Fuel gauge

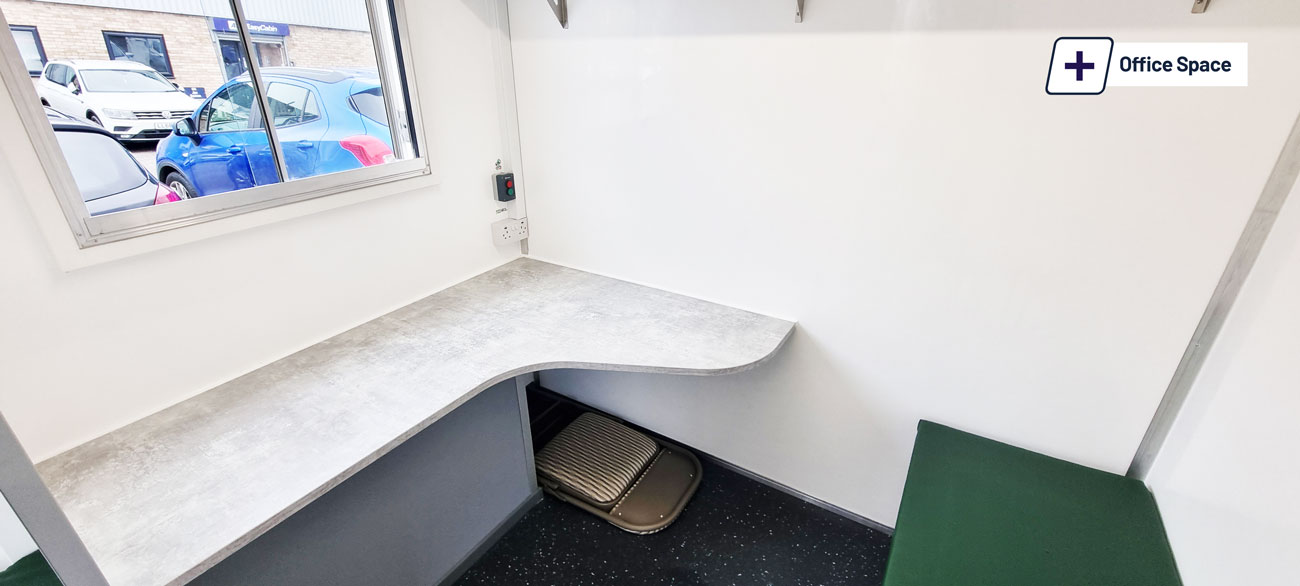

+ Office (layout)

PIR activated 12 volt LED light
Heating outlet (standard or “Air”)
Desk
Double socket with USB

Power

High cycle AGM battery (‘Air’ only)
12v leisure battery charger
Battery condition monitor

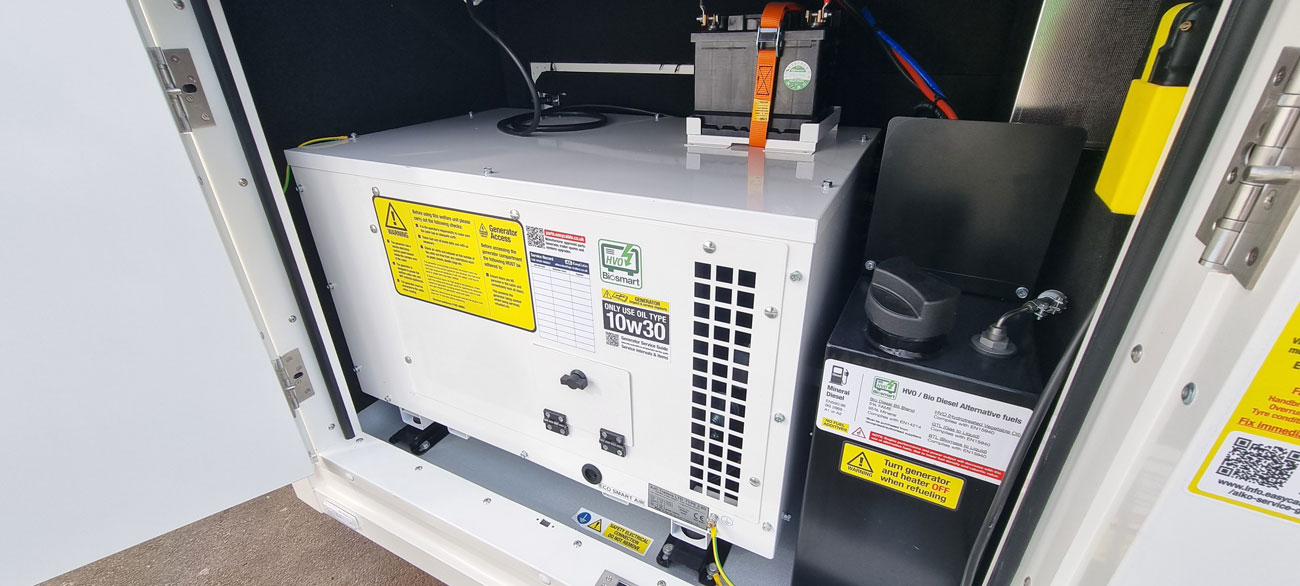

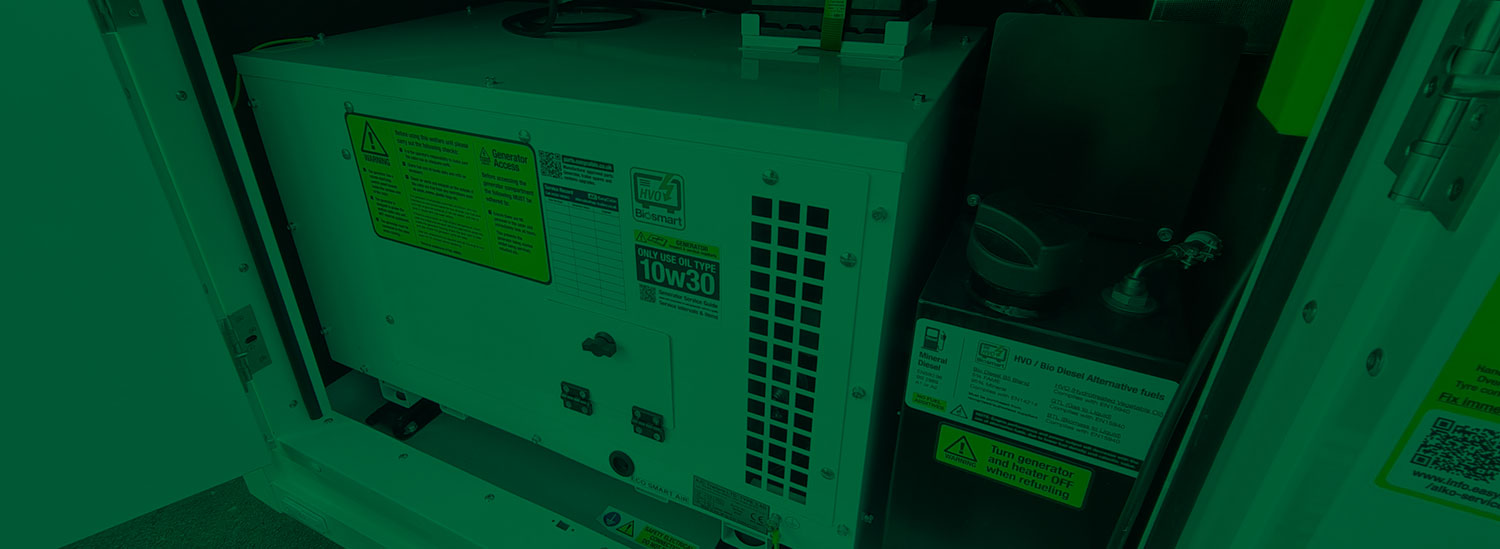

Diesel Kubota engine generator
Diesel tank
12 volt hydraulic pump
Low level fuel cut off

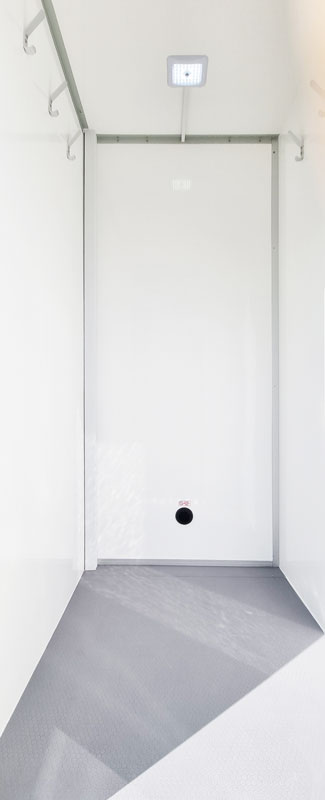

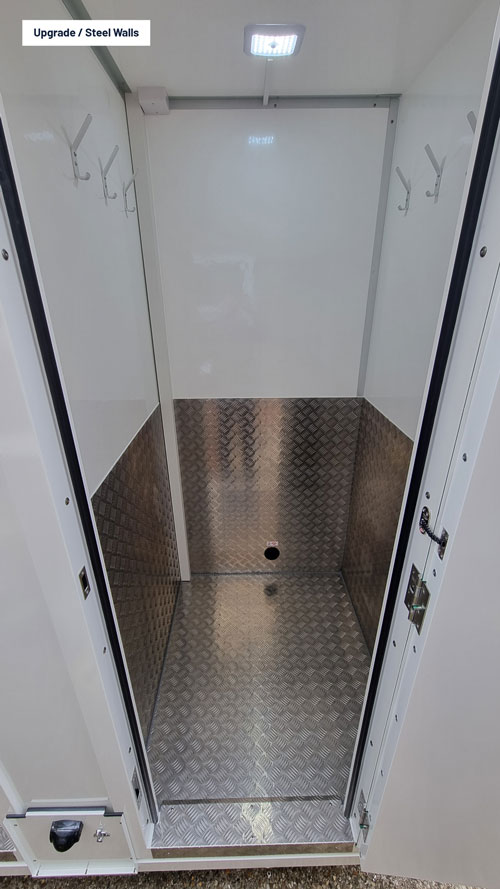

Drying Room

Coat hooks
PIR activated 12 volt LED light
Blown air heating outlet
Earth rod

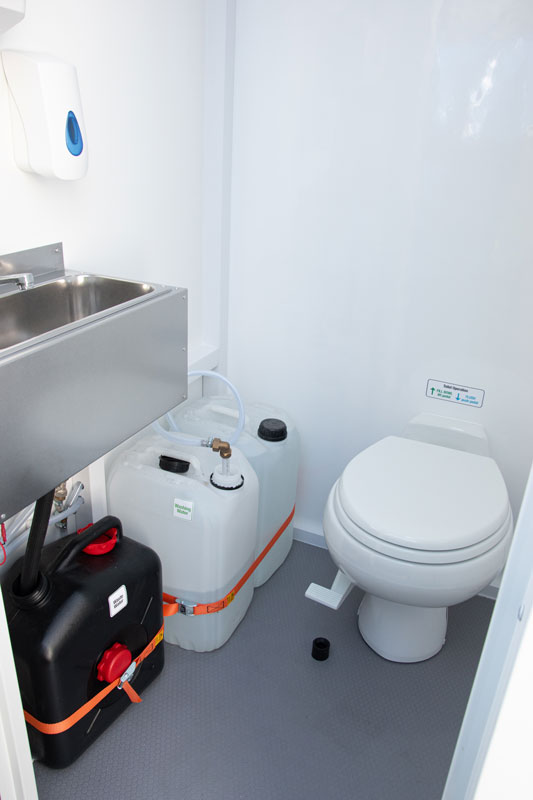

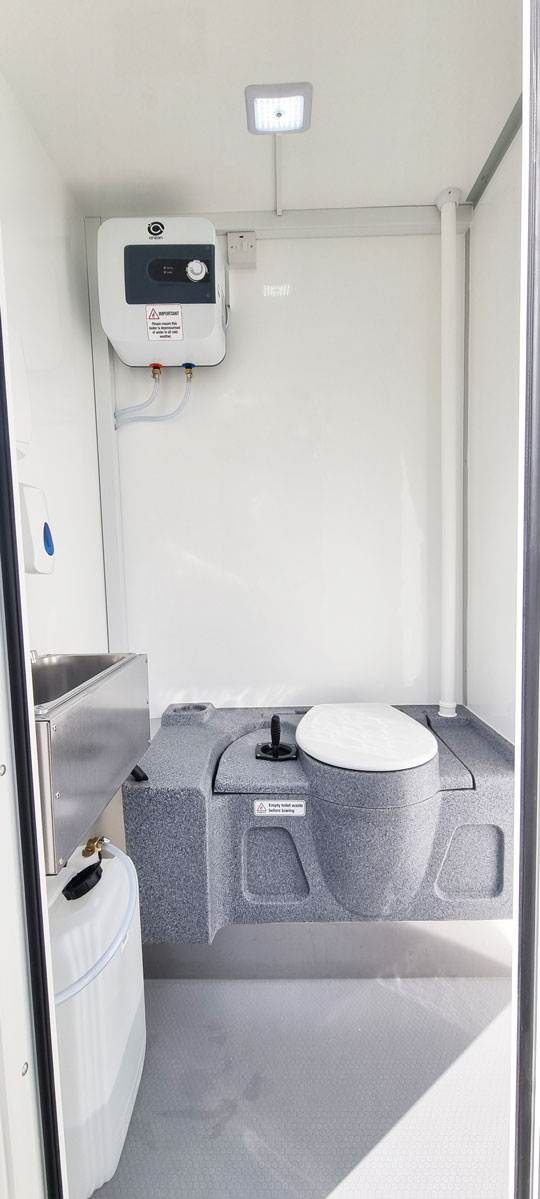

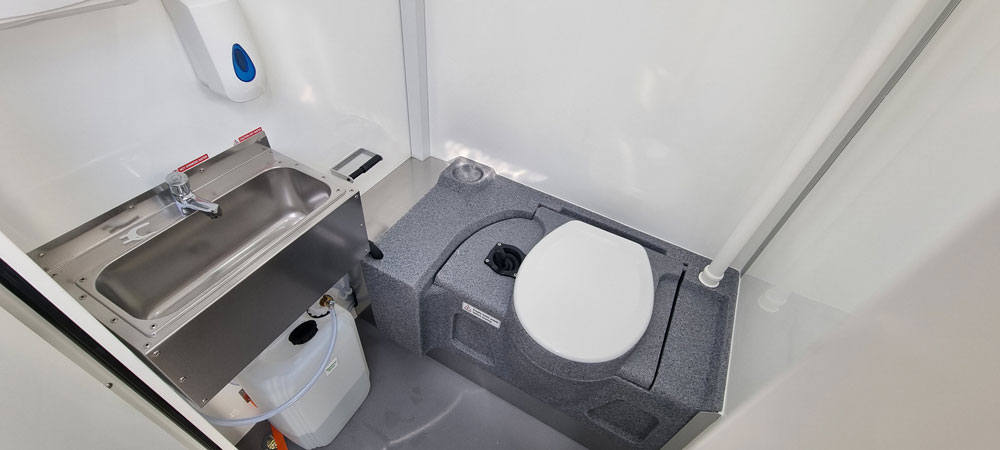

WC

Recirculating flush tank toilet 80 litre capacity
Sink to wash up to forearm
Running hot water
Coat hook
Soap dispenser
Towel dispenser
Toilet roll holder
PIR activated LED light

Construction

Walls:

Constructed from unique patented (2448660) high strength composite panels. Galvanised steel exterior, seamless GRP interior and high density foam insulation, provides rust free and washable surfaces.

Roof:

Seamless insulated composite panel.

Floor:

15mm plywood with slip and wear resistant phenolic coating.

Wheels

215R 14” Low profile wheels & tyres.

Chassis

Heavy duty galvanised steel.

Axle:

Electric type approved hydraulic axle.

Doors:

3 x high security composite doors with 2 deadlocks. Double doors to generator with 2 deadlocks.

Window:

Aluminium with security door locked internally with thumb turn deadlock.

Lights:

Built in road lights with removable number plate brackets.

Weight:

Gross weight 2240Kg - Unladen weight ONLY 2145Kg

Compliant

Approved

Running stats

6h

Without generator⁽¹⁾
4h

Without generator⁽¹⁾

Energy savings - Compared to a standard 6Kva system

All our figures are costed based on REAL- LIFE daily usage, taking into account using the appliances & heating in wintertime and summertime. A full energy presentation is available on request.

Based on 10 hours per day for 260 days, 80 days in winter mode and 180 days in summer mode. Each day is a typical usage day. 10 Persons accommodated. £1.70p per litre Diesel / HVO. £60 per H2 Bottle..
Solar panels achieve maximum output in direct sunlight, but they work in normal daylight and cloudy weather too. The amount of power a solar panel or charging kit generates in cloudy weather will be lower compared to direct sunlight. Also the positioning of the cabin will affect the solar charging of the batteries i.e. under trees, etc. This assessment doesn’t take in consideration the usage of the hydraulics. This assessment is guidance only.

Optional Extras

Optional extras & upgrades

Available on this product. Click for more info.

Non-hydraulic axles

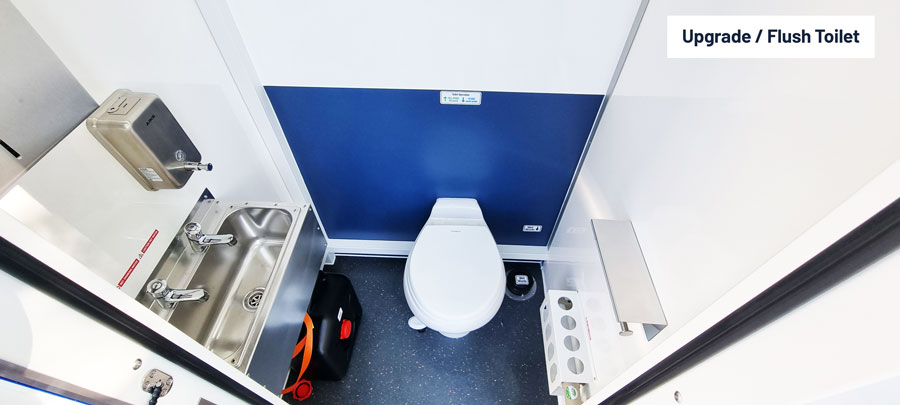

Ceramic flush toilet
Available as a static unit
Custom layouts on request

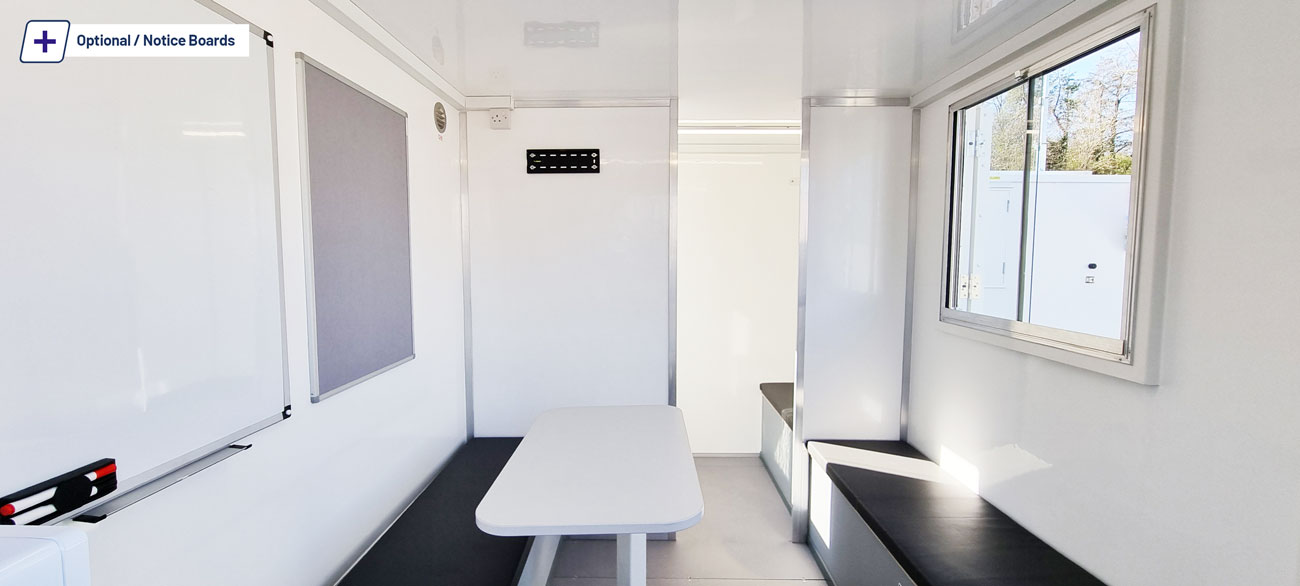

Pin boards
White boards
Spare Wheels
Decals / Branding

Downloads

DOWNLOAD Ecosmart range brochure

EcoSmart 16 - model comparison

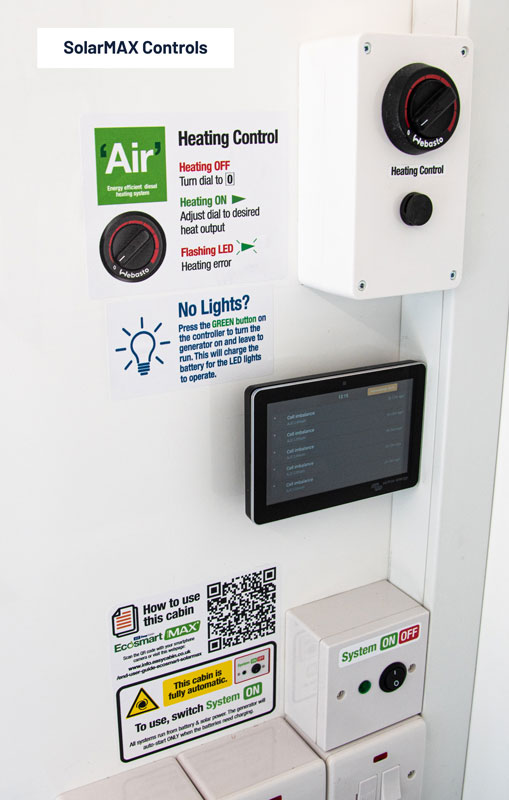

Increase efficiency with ‘Air’ Diesel heating upgrade

SHOW DETAILS

Energy efficient diesel heating upgrade.

Costs, Fuel consumption, Emissions, Noise.

Includes
battery monitor.

‘Air’ – a diesel heating system that saves energy, reduces carbon emissions and noise compared to our standard heating. Up to 78% better fuel economy.

MORE WARMTH: More heat produced from less energy.
AUTOMATIC: Thermostatic control for continuous cabin temperature.
EASY: Just turn the system on and enjoy.
EFFICIENT: Low fuel and power consumption, suitable for long periods of operation.
QUICK: Short heating-up times.
QUIET: No need for the generator to be on for heat to be produced.
ALSO INCLUDED: Upgraded batteries, battery monitor, 12v USB charge sockets.
SAVE MONEY ON OPERATING COSTS (compared to standard heating)
STANDARD HEATING: Heating on with generator running @ 75% load = 1.2 litres per hour
‘Air’ HEATING: Heating on max = 0.28 litres per hour (Saving of 0.92 litres per hour)
UPGRADED BATTERY: Gives more continuous LED lighting time (es12 = 10 hours, es16 = 8 hours)

Up to 78% better fuel economy for the same heating time

Contact EasyCabin for details on the ‘Air’ heating system.

As standard: HVO diesel compatible heating & power

BIOSMART HVO

Harvest the sun's FREE energy with solar panels

SOLAR UPGRADE - UP TO 55% FUEL SAVINGS SOLAR MAX - UP TO 96% FUEL SAVINGS

Ecosmart ZERO. Large solar panels + Backup hydrogen fuel cell = NO local CO2 emissions

UPGRADE ZERO EMISSIONS

Media Gallery

As part of our ongoing commitment to improvement we reserve the right to alter specifications, designs or figures without prior notice. All dimensions and weights are approximate.

(1) Figures quoted based on “optimum use”, with the generator not running, no appliances used & no hydraulics used within the stated time period.

(2) While in un-hitched state, timed from the start of the axle retract sequence, until the unit is seated and the cabin door is opened.
