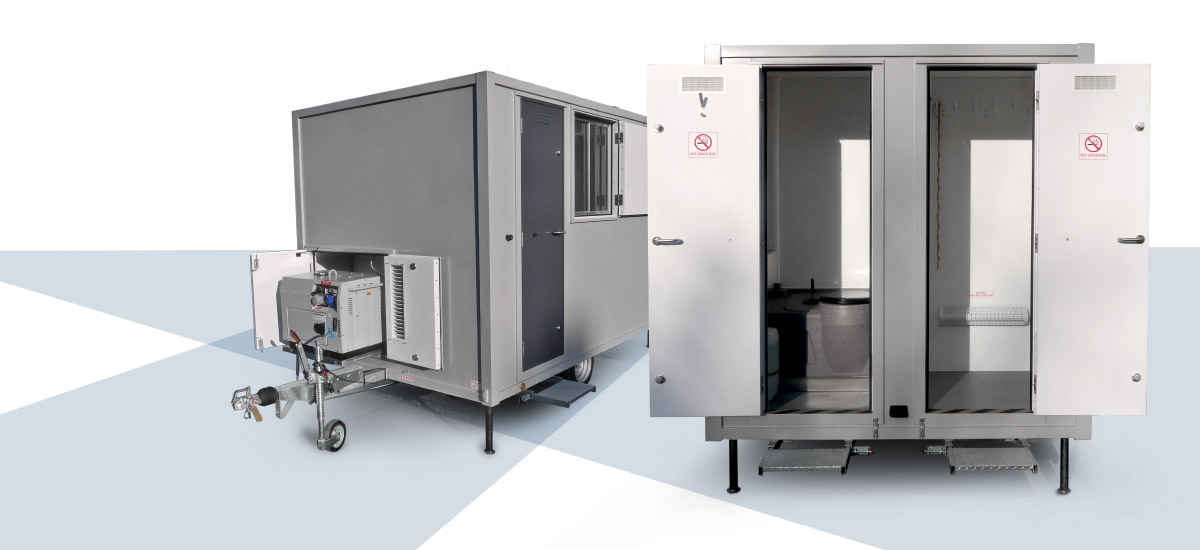

12ft 6 Person Mobile Welfare Unit

The EasyCabin 12 ft Mobile Welfare Unit - Straightforward, modern and comfortable canteen for up to six people with separate toilet and drying room facilities.

Canteen and bench seating for 6 people
Separate toilet and drying room
Exceptional value, entry level model

The EasyCabin 12 6 person welfare unit has practical bench seating that can accommodate all, and a wall heater with thermostatic control, microwave oven and kettle. With its open-plan design, our towable welfare unit will quickly become the sociable hub of any site during break times. The 6 person welfare unit has easy to maintain and clean surfaces, making it a smart option for your site. All power comes from a 230v supply direct from the 5.5Kva generator.

Carefully designed by industry experts for easy cleaning, the EasyCabin 12 is fitted with durable stainless steel worktops, alongside a stainless steel sink, with hot wash facilities.

Lighting within the 12ft mobile welfare unit is provided via a single 1200mm moisture-proof fluorescent light with a moisture resistant light switch, making it suitable all year round. For added safety the EasyCabin 12 has a carbon monoxide detector, providing added peace of mind.

For more information about our 6 person 12ft mobile welfare units for sale, please get in touch today.

1560kg

Unladen weight

1800kg

Gross weight

W 2420
L 3615
H 2700

Dimensions (mm)

Available Layouts

Open plan

Open plan
layout

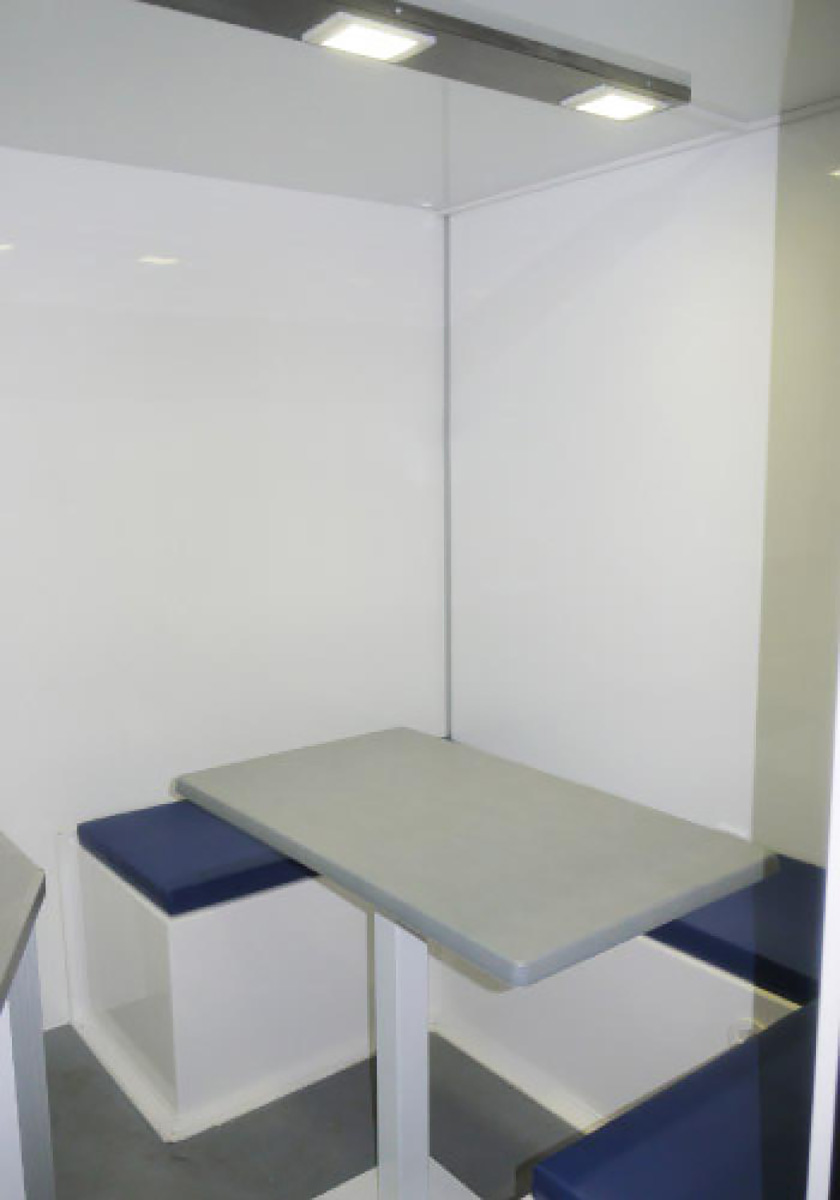

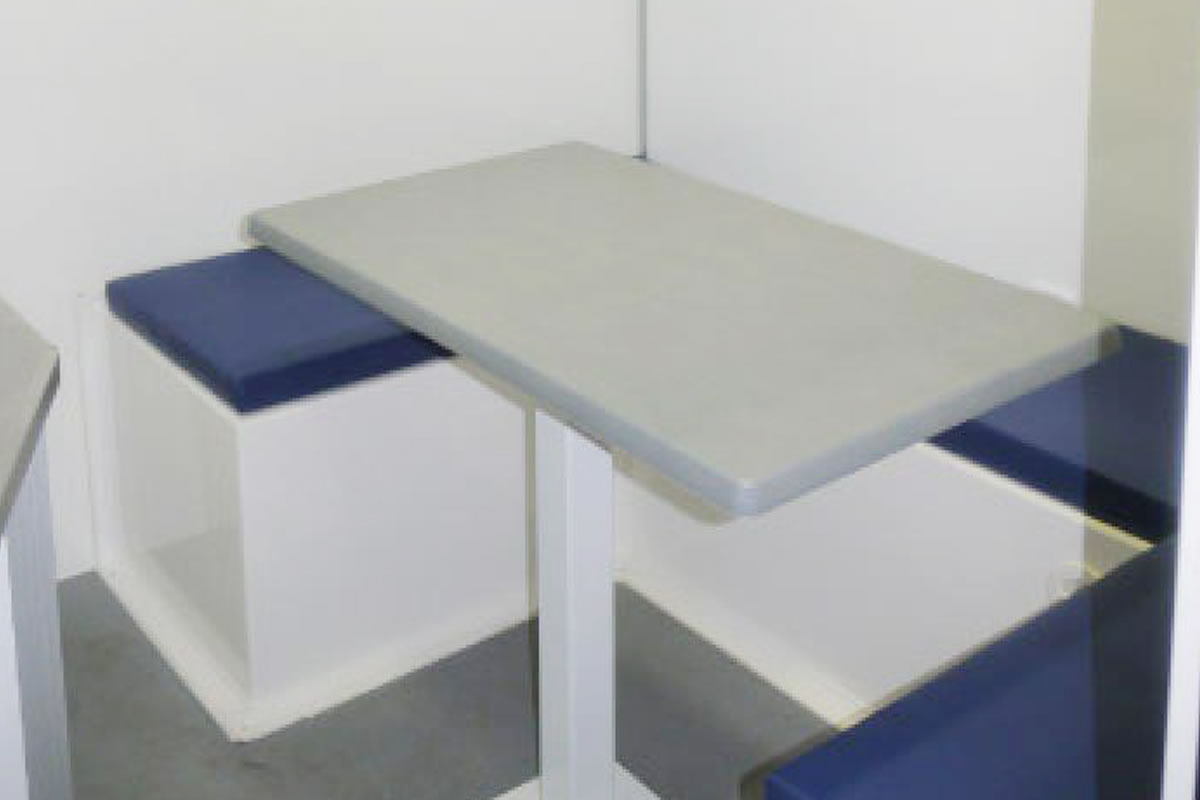

Bench seating for 6

Separate drying room & toilet

Specifications

Canteen

Bench seating for 6 people
Wall heater with thermostatic control
Microwave
Kettle
Formica worktop
Stainless steel sink
Running hot water
Single 1200mm moisture proof
Fluorescent light
Moisture resistant light switch
Carbon monoxide detector
Fresh, waste & drinking water
Containers
Soap dispenser
Towel dispenser
Cup dispenser
Double Socket
Consumer unit with electrical certificate

Power

5.5kva Diesel generator with built in fuel tank
Slide out access for generator
Sound insulation to generator compartment

Drying Room

Coat hooks
PIR bulkhead light
Tube heater with cover

WC

Recirculating flush tank toilet 80 litre capacity
Sink to wash up to forearm
Cold wash to sink
Coat hook
Soap dispenser
Towel dispenser
Toilet roll holder
PIR bulkhead light

Construction

Walls:

Constructed from high strength bonded GRP composite panels. Provides rust-free and washable surfaces.

Roof:

Seamless insulated composite panel.

Floor:

15mm phenolic faced marine ply.

Wheels

185/70R 12” Low profile wheels & tyres.

Chassis

Heavy-duty painted steel. 4 security prop stands and pull out steps.

Axle:

AI-KO axle with sealed for life bearings.

Doors:

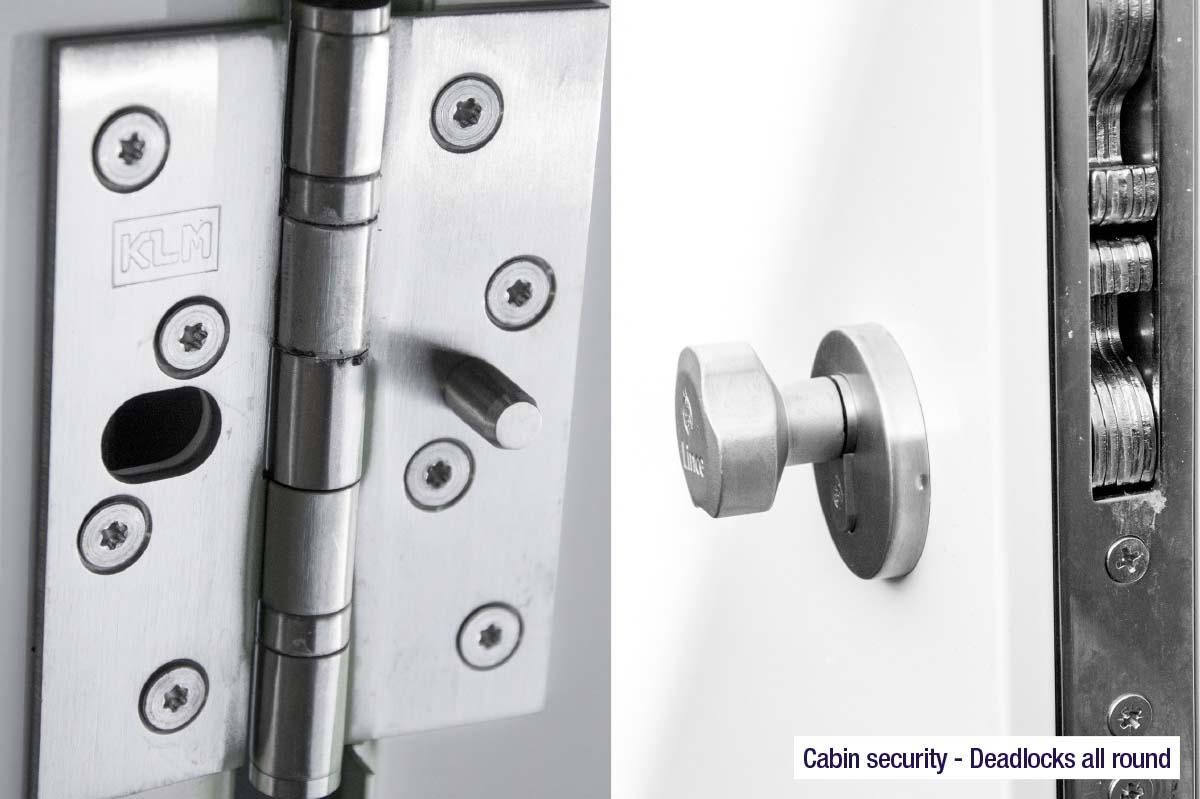

3 x high security composite doors with 2 deadlocks. Double doors to generator with 2 deadlocks.

Window:

Aluminium with security door locked internally with thumb-turn deadlock.

Lights:

Built-in road lights with removable number plate brackets.

Weight:

Gross weight 1800Kg - Unladen weight ONLY 1560Kg

Compliant

Approved

Optional Extras

Ceramic flush toilet
Available as a static unit
Custom layouts on request
Pin boards
White boards
Spare Wheels
Decals / Branding

Downloads

EasyCabin 12 Brochure COMING SOON

12' welfare units - model comparison

Range Overview	12	12 EcoSmart	12 Xtra EcoSmart
Hydraulic axles
EcoSmart Box
Canteen type	Large	Large	Space saving
Seating	x6	x6	x8

Media Gallery

As part of our ongoing commitment to improvement we reserve the right to alter specifications, designs or figures without prior notice. All dimensions and weights are approximate.
