EasyRail Ecosmart 12

Designed specifically for the rail sector, the EasyRail Ecosmart 12 rail-to-road welfare unit provides essential welfare facilities directly trackside.

Canteen and toilets facilities for 6 persons
Separate male/female toilets
Mount onto a Rail-to-road platform
Optional ‘Air’ efficient diesel heating upgrade

This useful rail-to-road welfare unit provides canteen and toilets facilities for 6 people, with separate male and female toilets available. Mounting onto a ‘rail-to-road’ platform, they are a suitable solution for bringing the necessary facilities trackside.There is an optional ‘Air’ efficient diesel heating upgrade available which can provide a more comfortable experience.

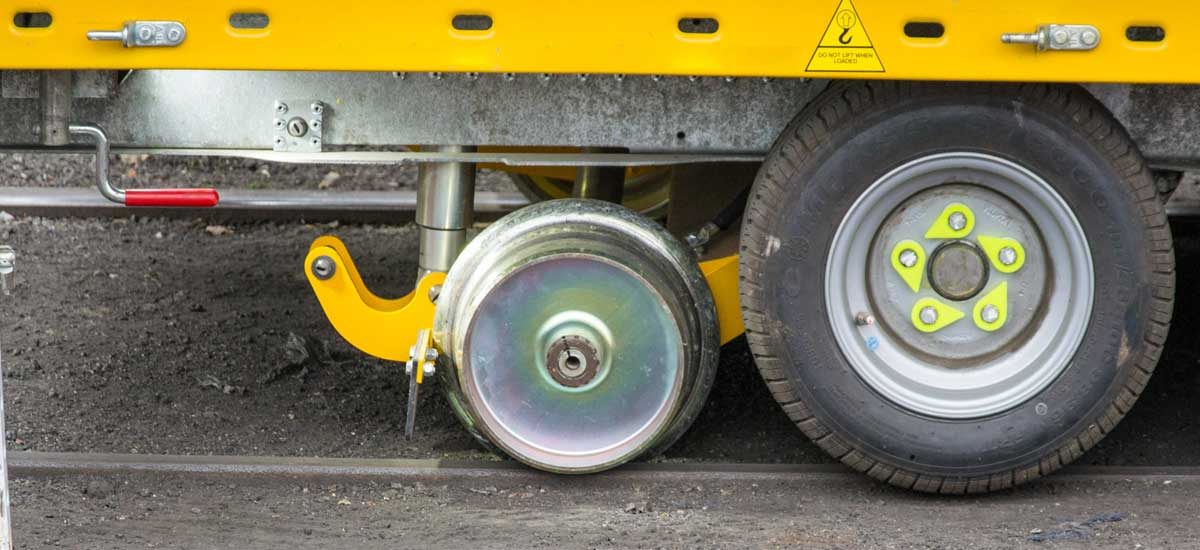

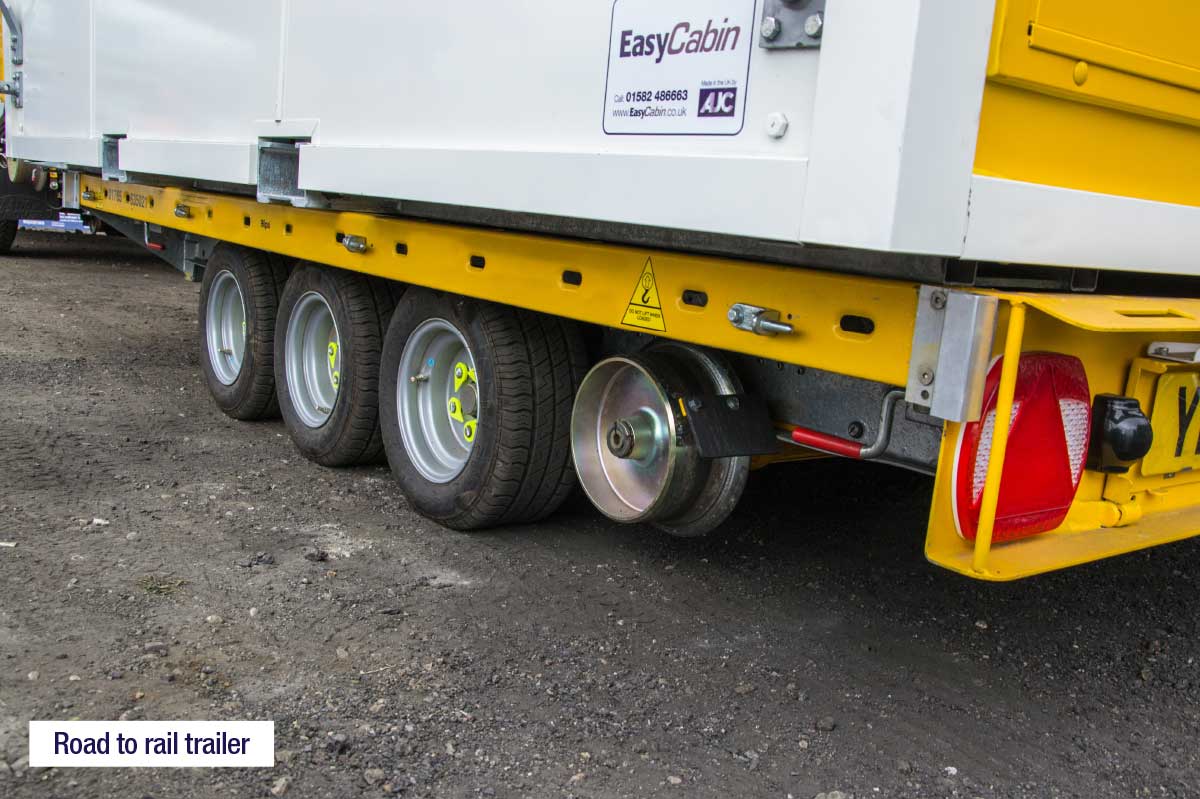

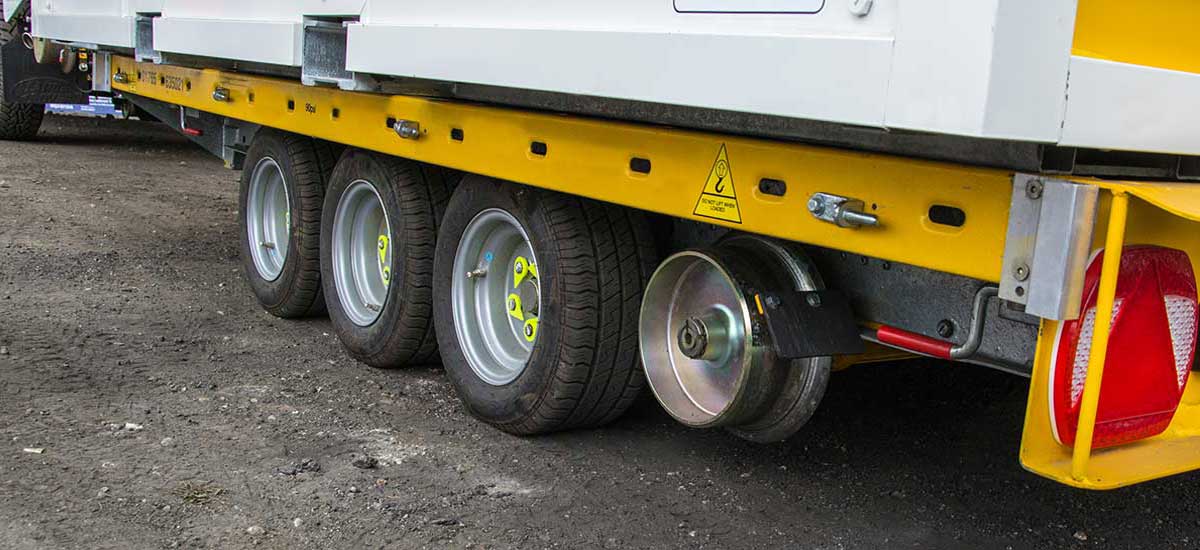

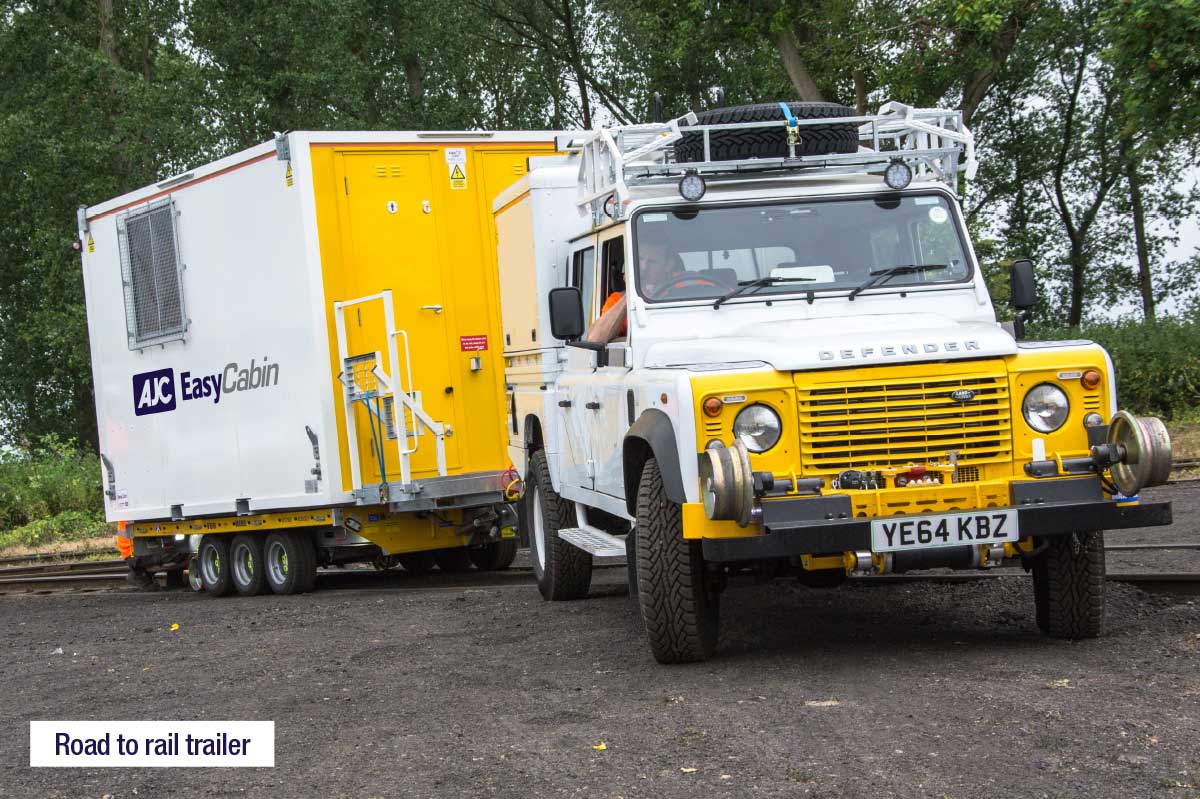

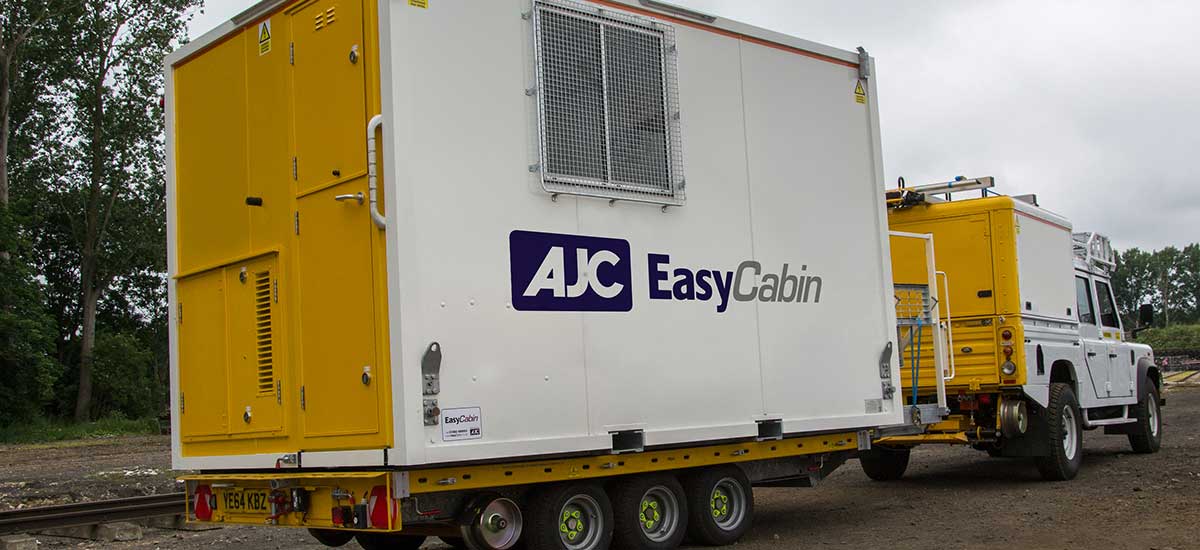

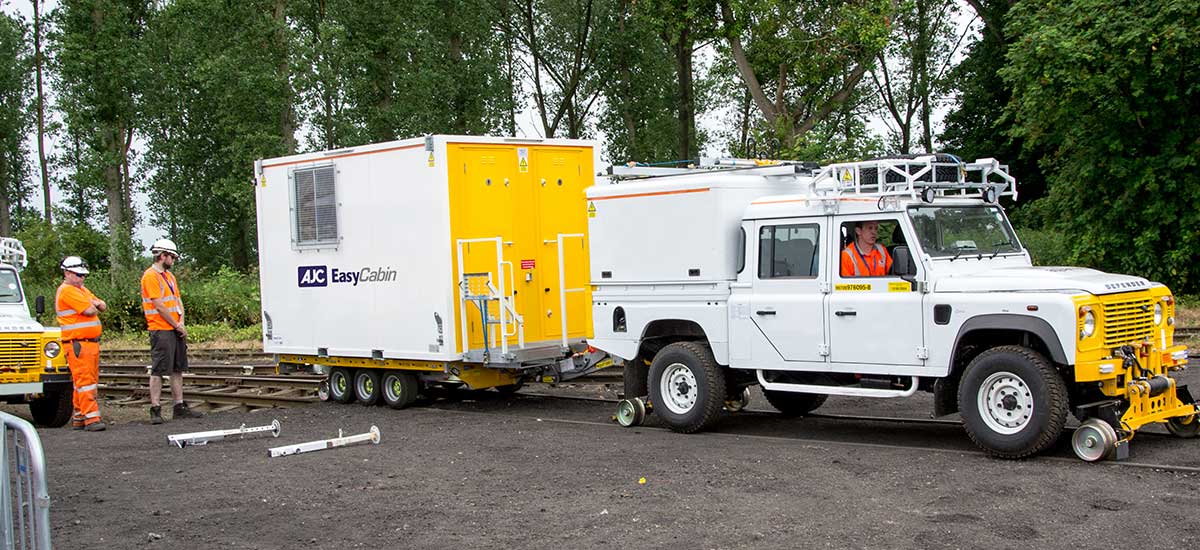

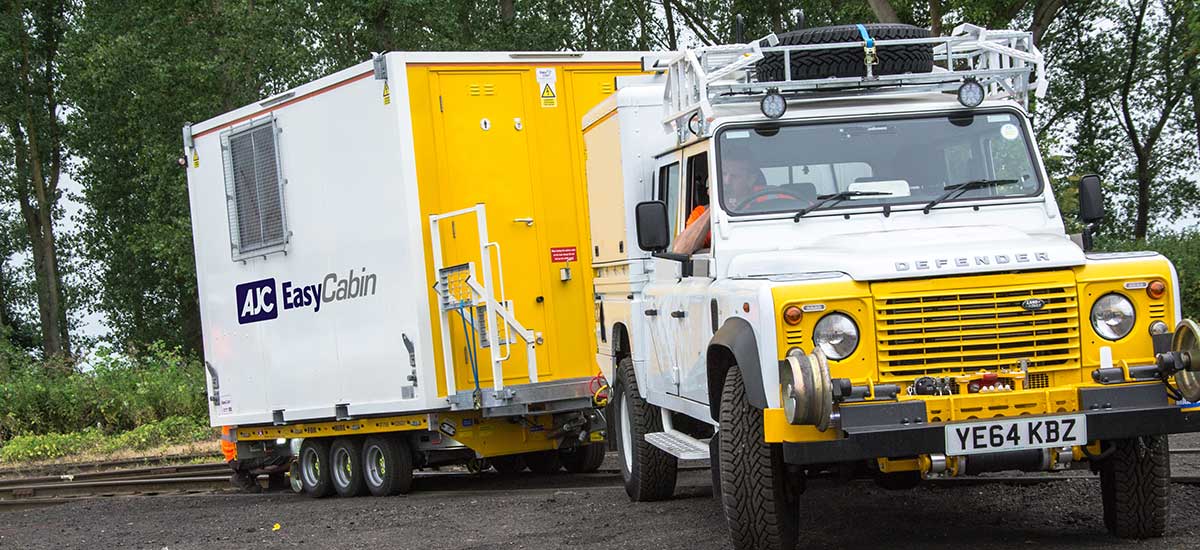

The EasyRail welfare unit is mounted onto an Road2Rail trailer and coupled to an R2R4X4 vehicle (trailer and vehicle not included).

The complete unit is then transported directly from road to rail, then straight to site, so that track workers can have instant access to important welfare facilities.

Essential to modern working arrangements, the EasyRail welfare unit incorporates some environmentally biased features. These include LED lighting and Ecosmart technology.

Naturally, the EasyRail welfare unit complies with all the Health and Safety at Work Act for Welfare Regulations 20-25.

1712kg

Unladen weight

2000kg

Gross weight

W 2300
L 3545
H 2100

Dimensions (mm)

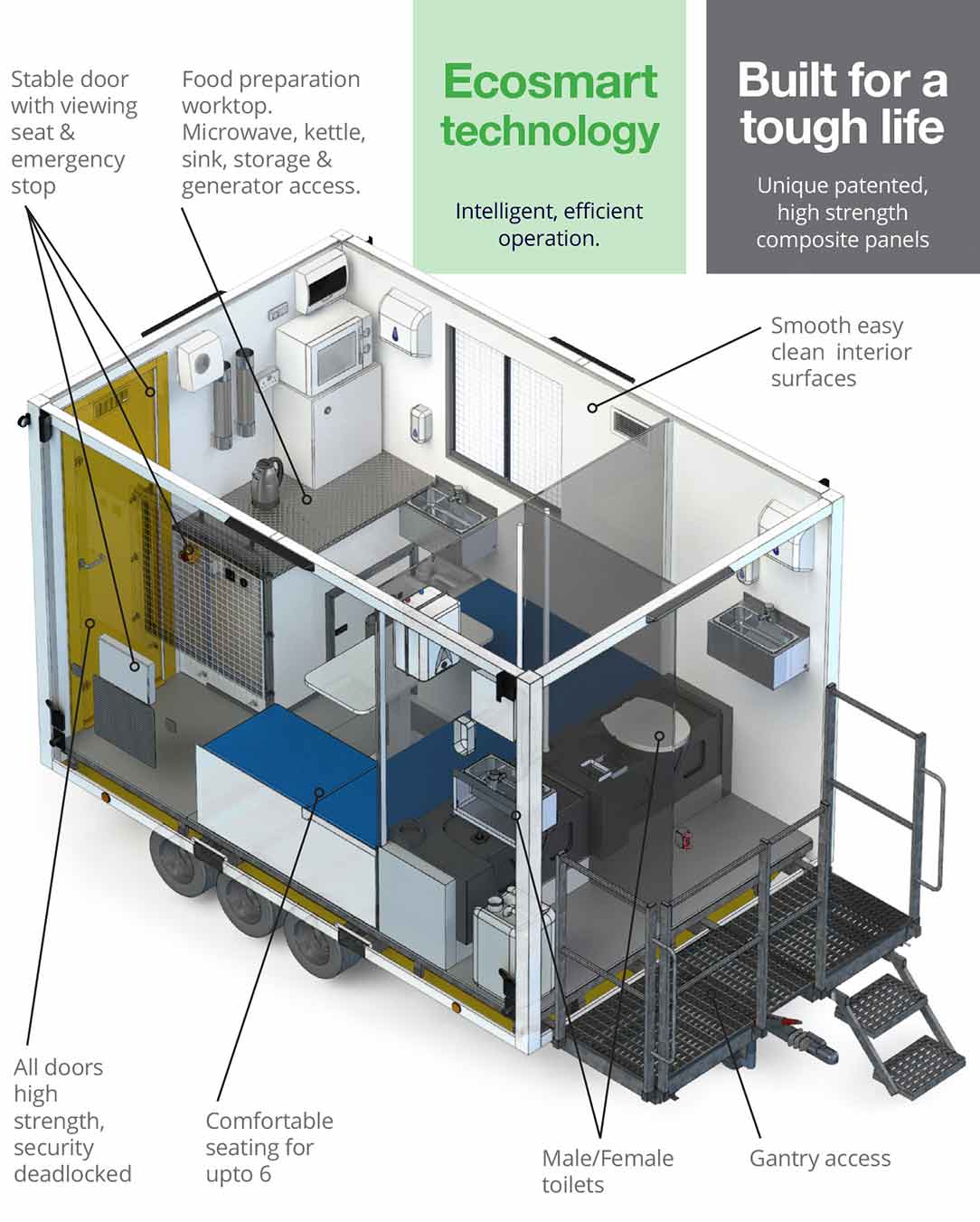

Intelligent, efficient operation.

Without generator⁽¹⁾

Special Rail welfare features.

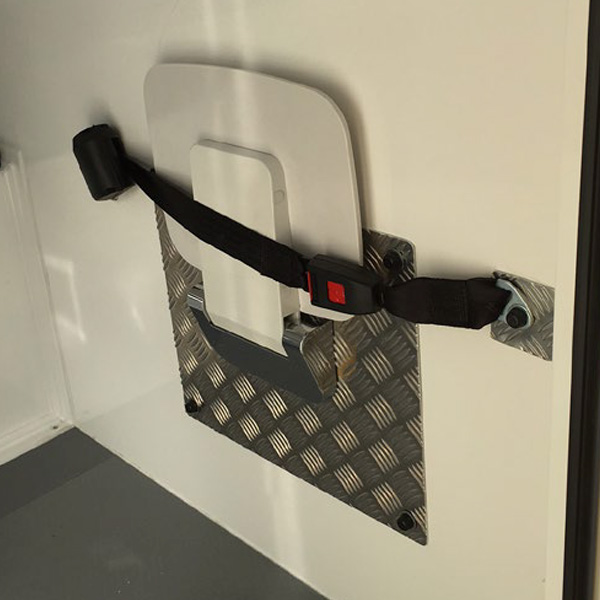

To comply with network rail regulations, the trailer has a seated position for an operator to view the track.

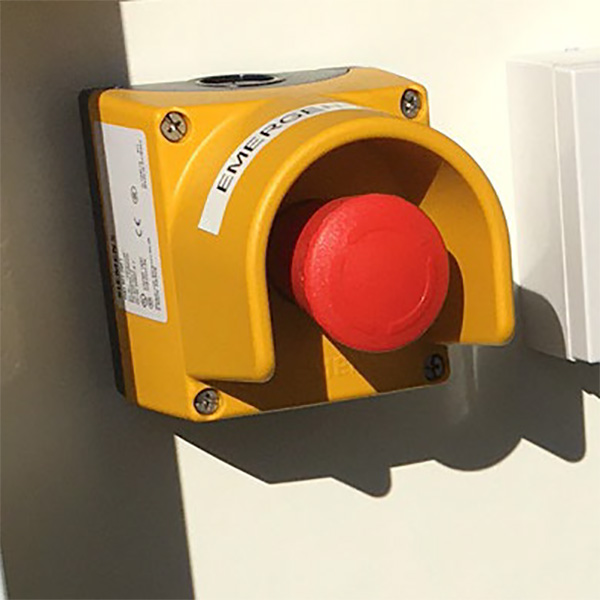

Whilst the trailer is moving on the tracks, the operator can stop the trailer at any time using an emergency stop button.

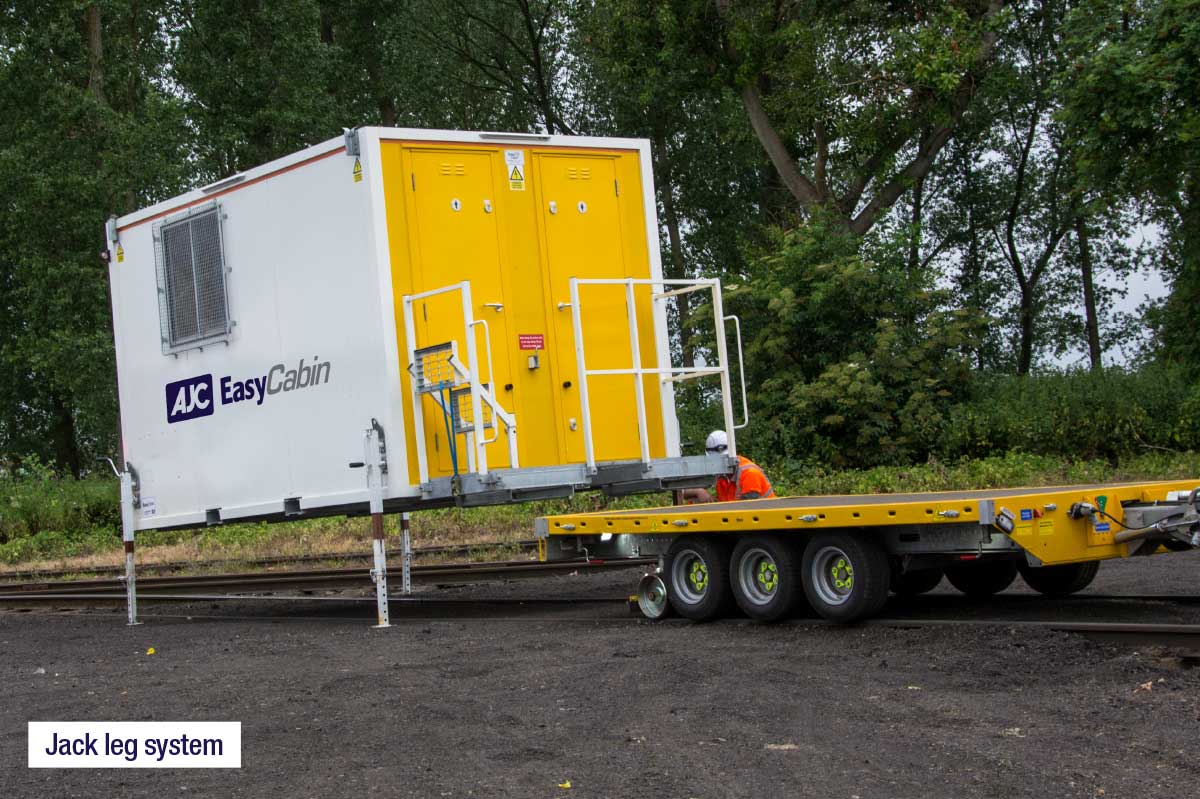

The trailer can be parked up anywhere and the cabin can be removed simply, with the jacking system or by a forklift.

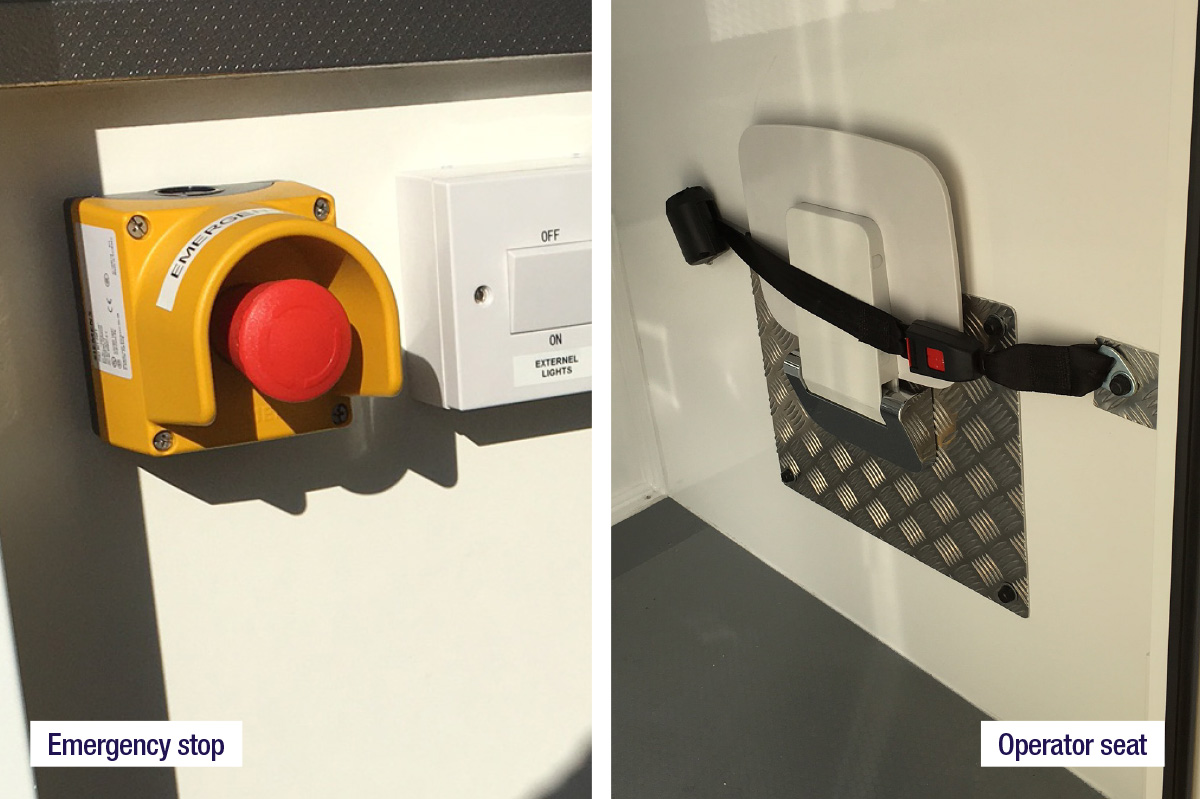

Emergency stop

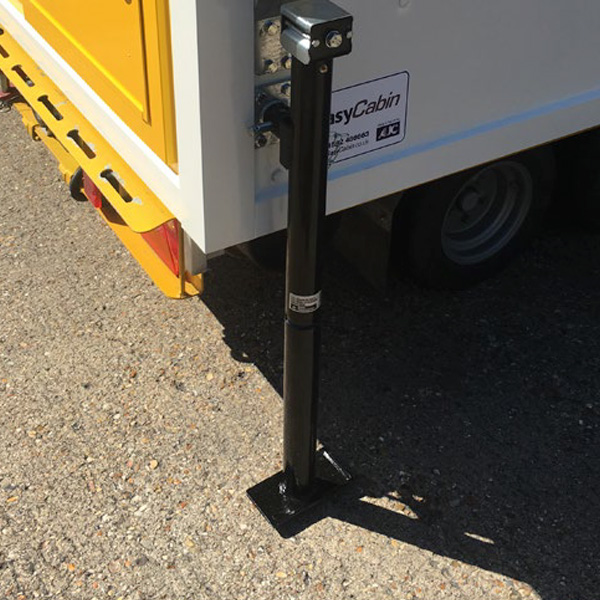

Jacking system

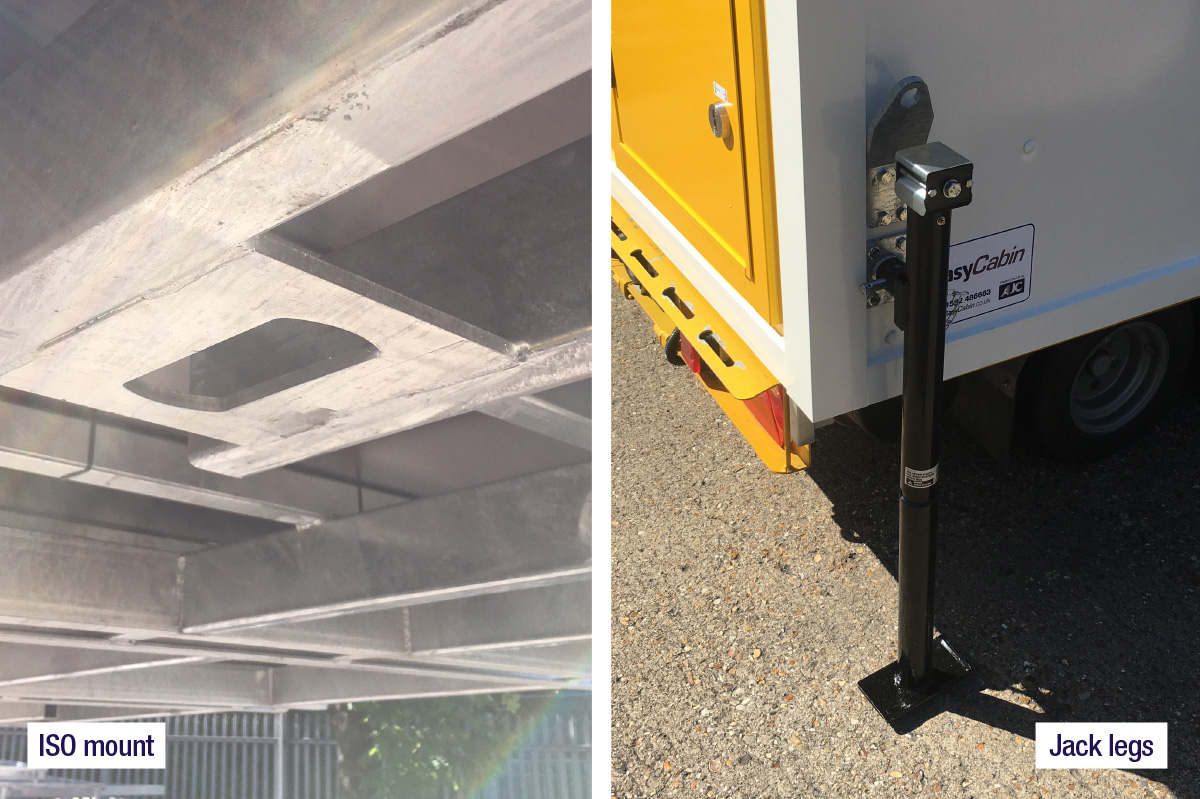

ISO Frame attachment

Operator seat

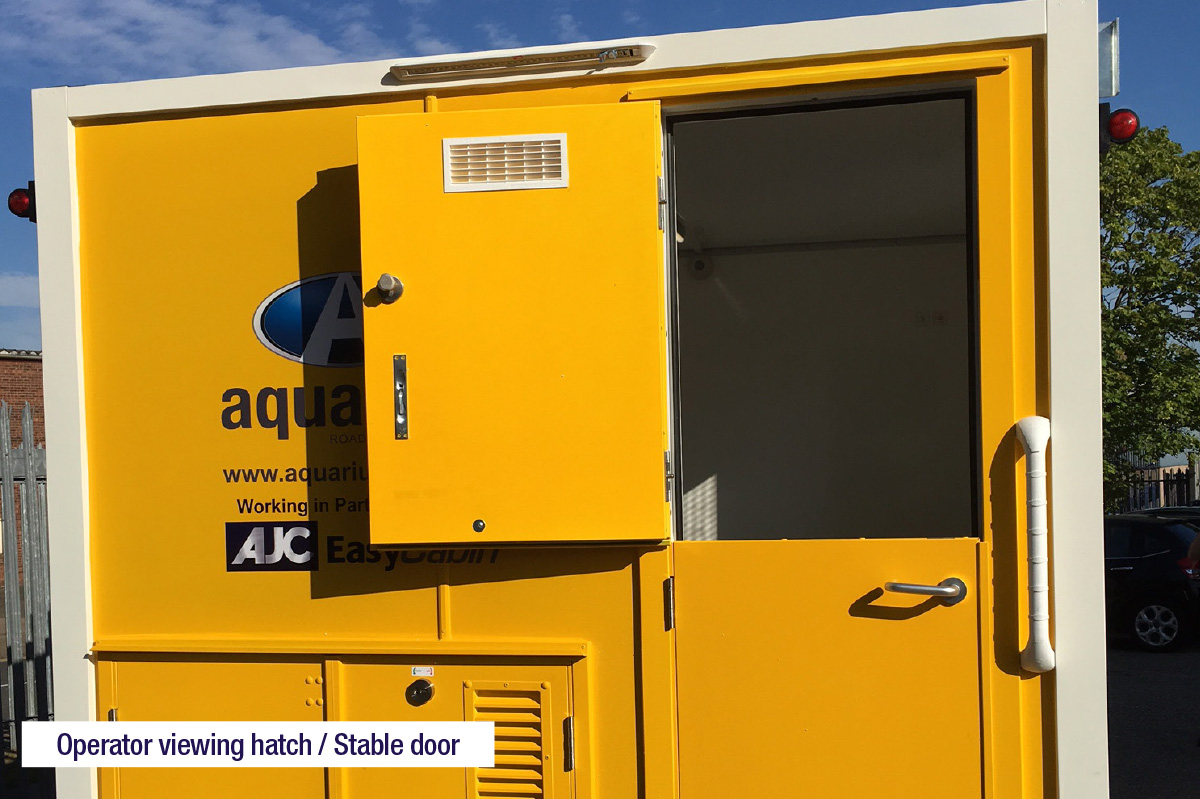

Operator view

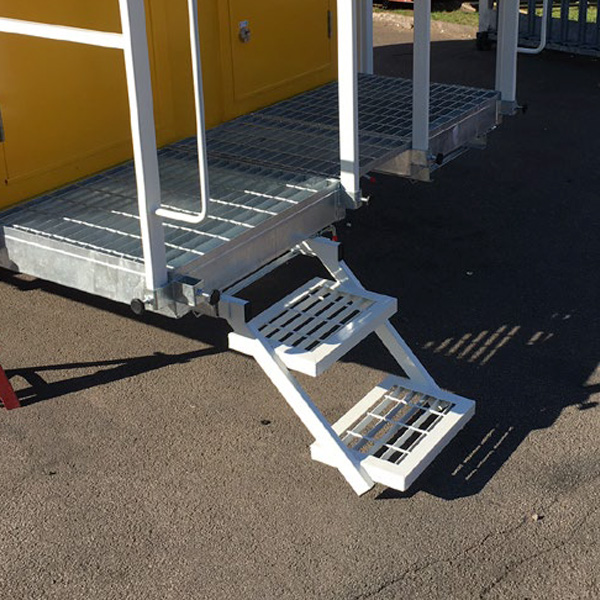

Gantry Steps

Increase efficiency with ‘Air’ Diesel heating upgrade

SHOW DETAILS

Energy efficient diesel heating upgrade.

Costs, Fuel consumption, Emissions, Noise.

Includes
battery monitor.

‘Air’ – a diesel heating system that saves energy, reduces carbon emissions and noise compared to our standard heating.

MORE WARMTH: More heat produced from less energy.
AUTOMATIC: Thermostatic control for continuous cabin temperature.
EASY: Just turn the system on and enjoy.
EFFICIENT: Low fuel and power consumption, suitable for long periods of operation.
QUICK: Short heating-up times.
QUIET: No need for the generator to be on for heat to be produced.
ALSO INCLUDED: Upgraded batteries, battery monitor, 12v USB charge sockets.
SAVE MONEY ON OPERATING COSTS (compared to standard heating)
STANDARD HEATING: Heating on with generator running @ 75% load = 1.2 litres per hour
‘Air’ HEATING: Heating on max = 0.28 litres per hour (Saving of 0.92 litres per hour)
UPGRADED BATTERY: Gives more continuous LED lighting time (es12 = 10 hours, es16 = 8 hours)

Upto 78% better fuel economy for the same heating time

Contact EasyCabin for details on the ‘Air’ heating system.

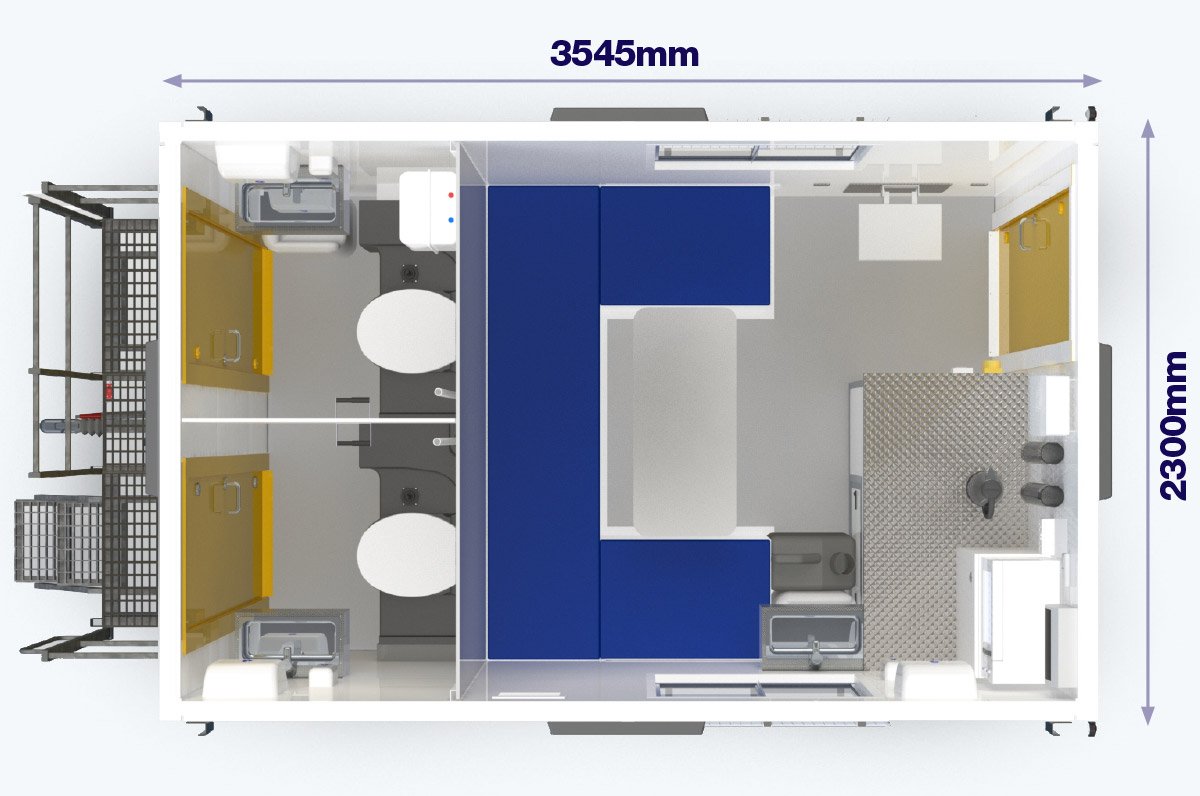

Layout

Standard

Standard
layout

Bench seating for 6

Separate toilet

Specifications

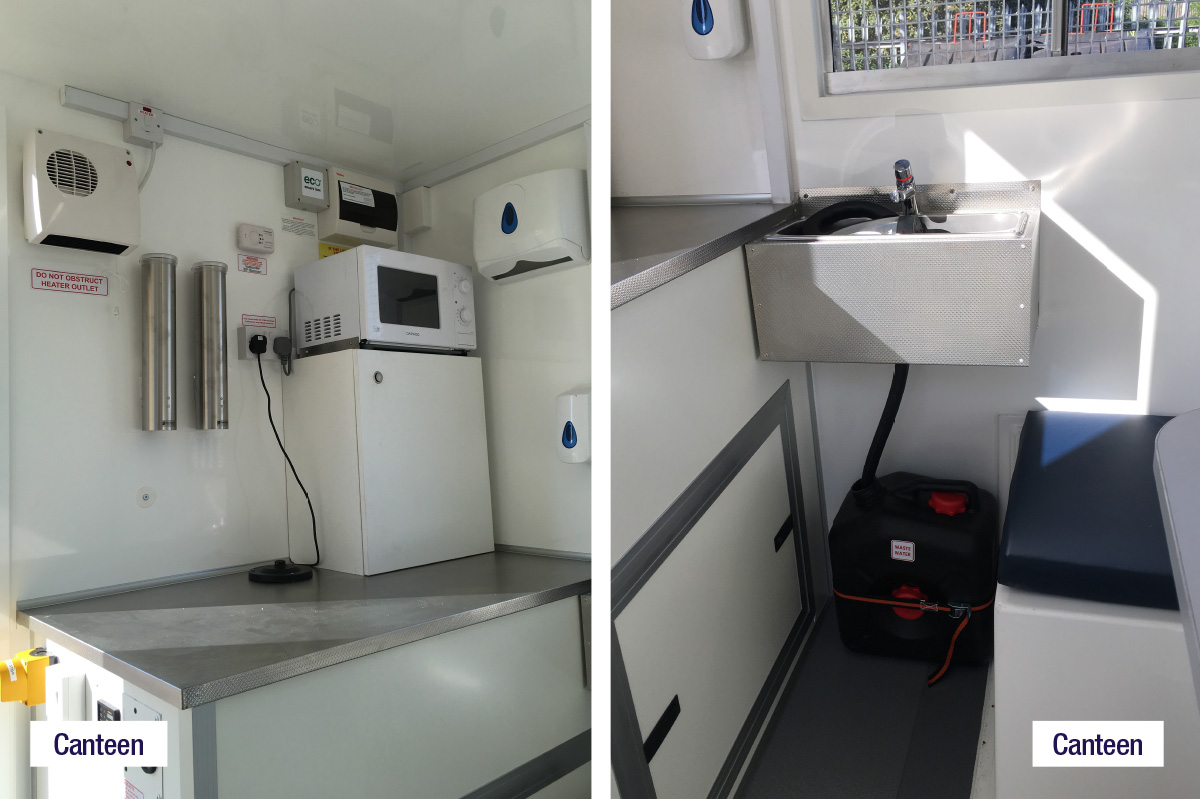

Canteen

Table & bench seating for 6 people
Viewing seat & emergency stop controls

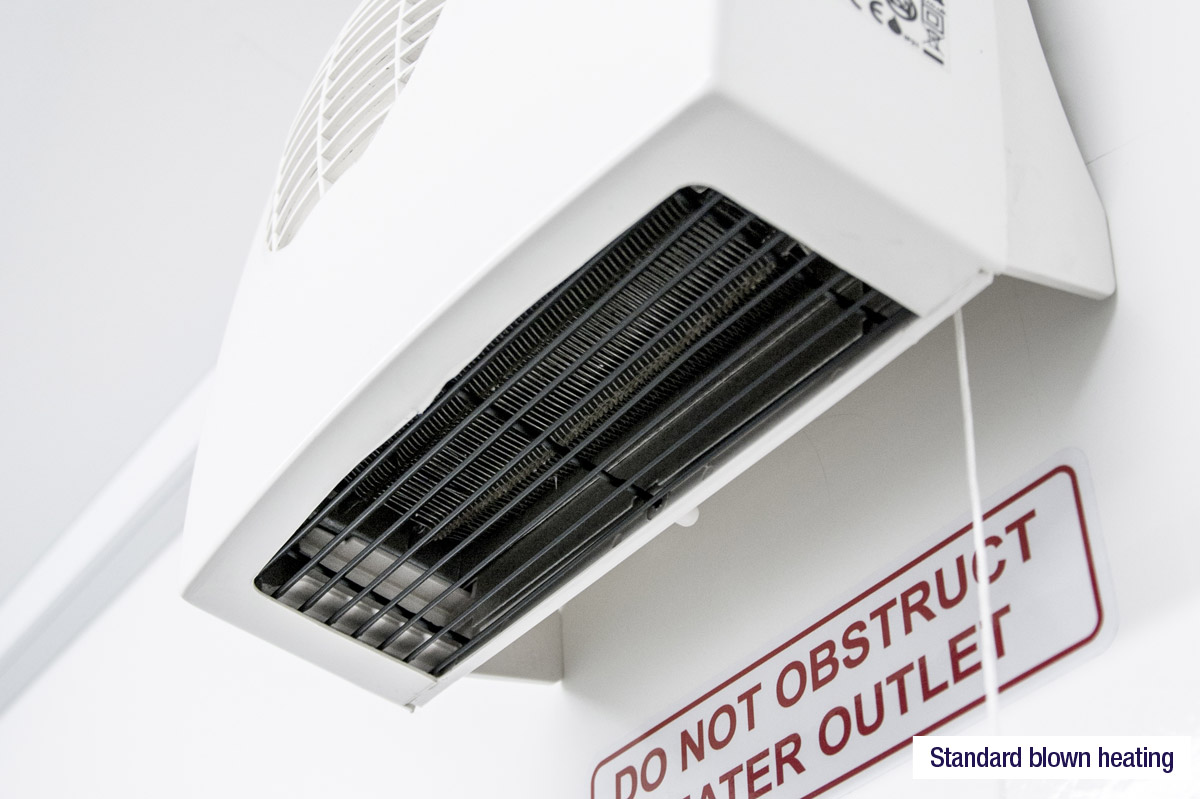

Heating
Running hot water
Microwave / kettle
Durable stainless steel worktop

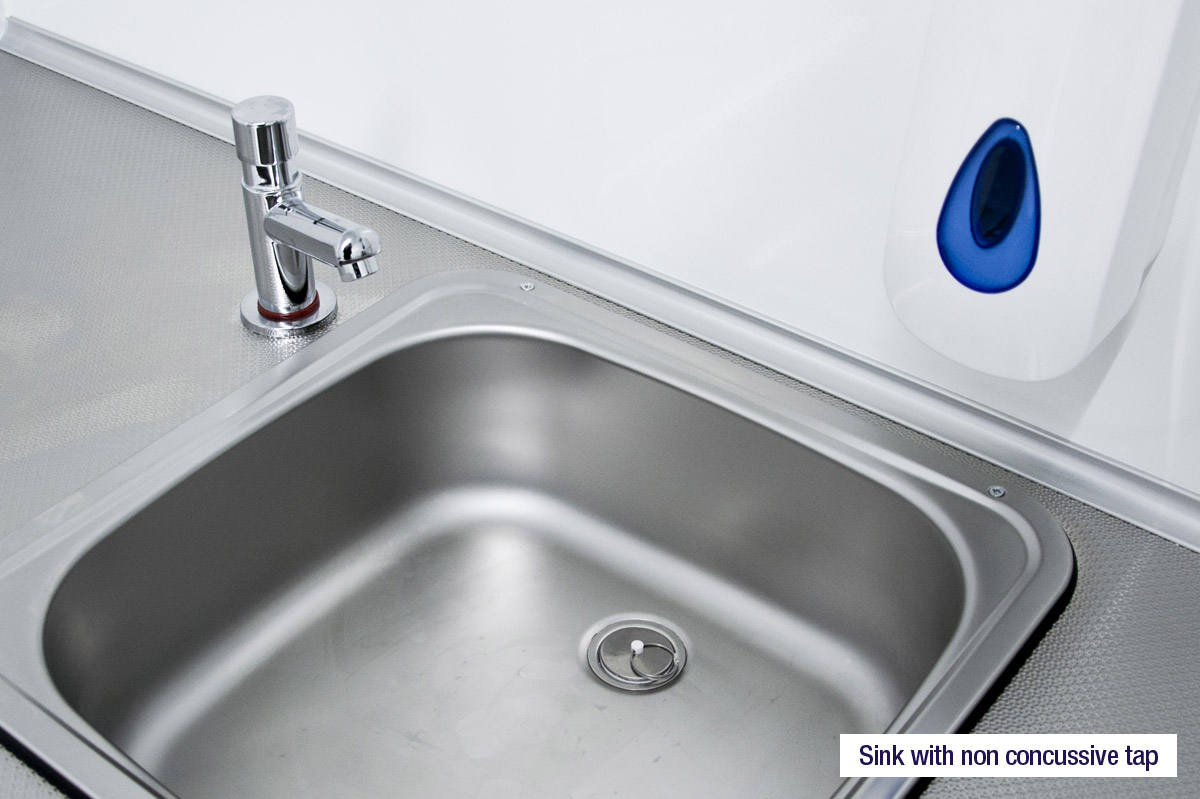

Stainless steel sink
PIR activated 12 volt LED lighting
Carbon monoxide detector
Fresh, waste & drinking water containers
Soap dispenser
Towel dispenser
Cup dispenser
Consumer unit with electrical certificate
Generator timed controller with hour meter
Fuel gauge

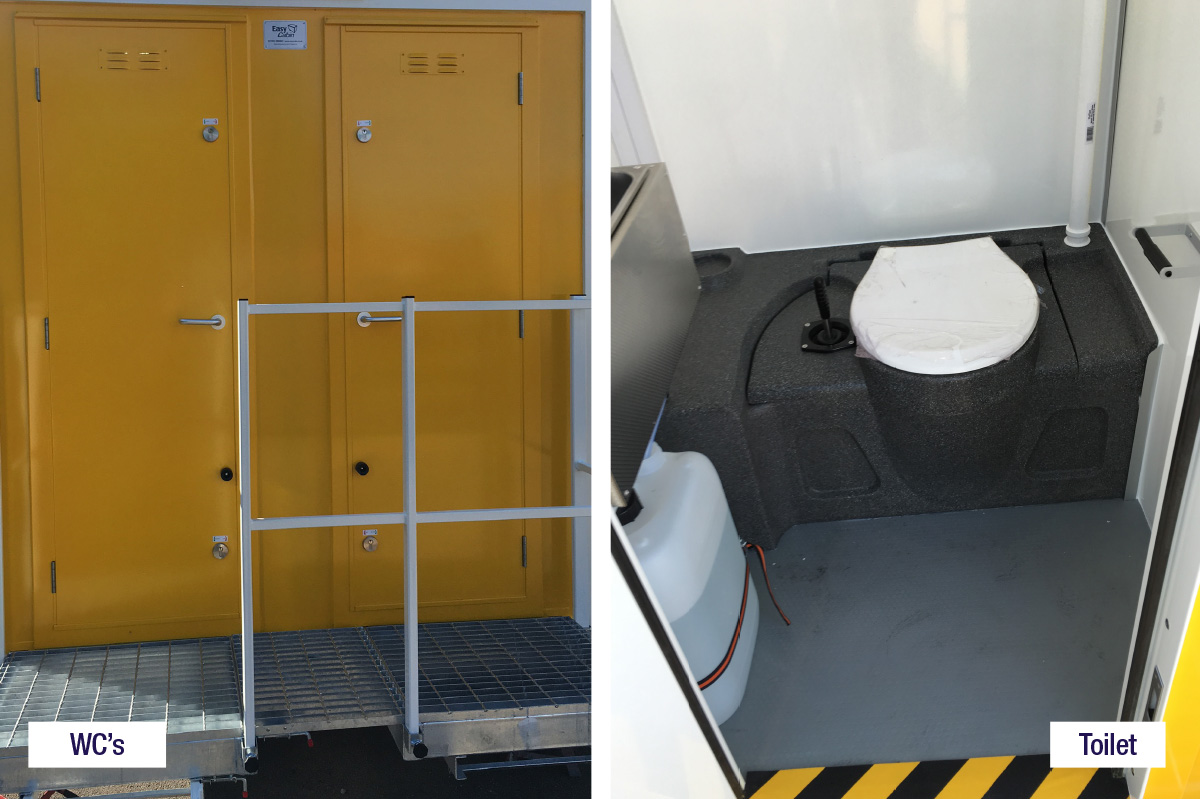

WC

Re-circulating flush tank toilet 80 litre capacity
Sink to wash up to forearm
Running hot water
Coat hook
Soap dispenser
Towel dispenser
Toilet roll holder
PIR activated LED light

Power

Battery
Battery charger
Diesel Kubota engine generator
38ltr diesel tank
Low level fuel cut off

Outside

LED 12v lighting
Gantry & steps

External Specifications

Walls:

Constructed from unique patented (2448660) high strength composite panels. Galvanised steel exterior, seamless GRP interior and high density foam insulation, provides rust free and washable surfaces.

Roof:

Seamless insulated composite panel.

Floor:

15mm plywood with slip and wear resistant phenolic coating.

Chassis:

Heavy duty galvanised steel, complete with ISO twist lock connection

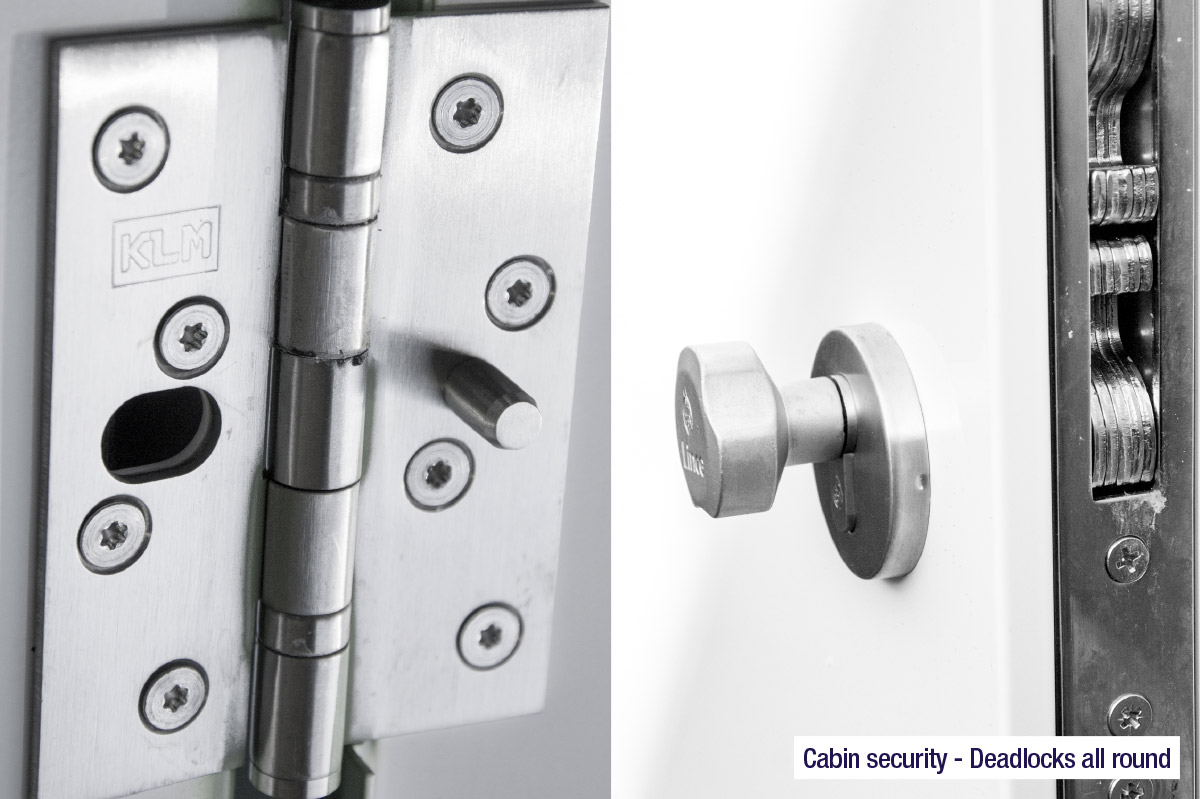

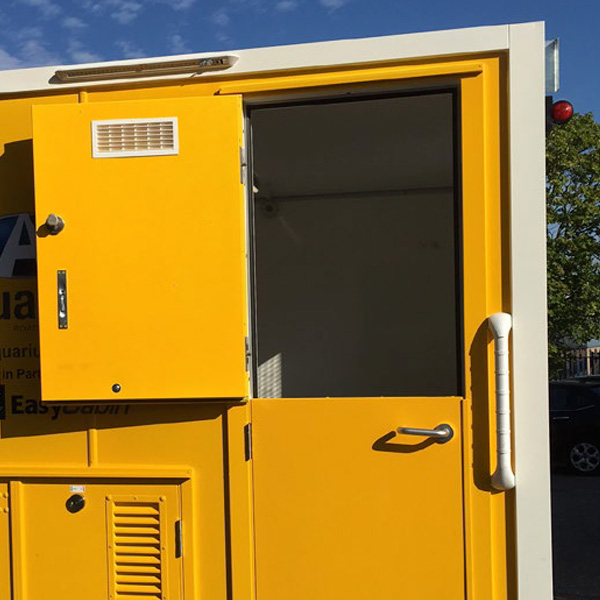

Doors:

3 x high security composite doors with 2 deadlocks. Double doors to generator with 2 deadlocks.

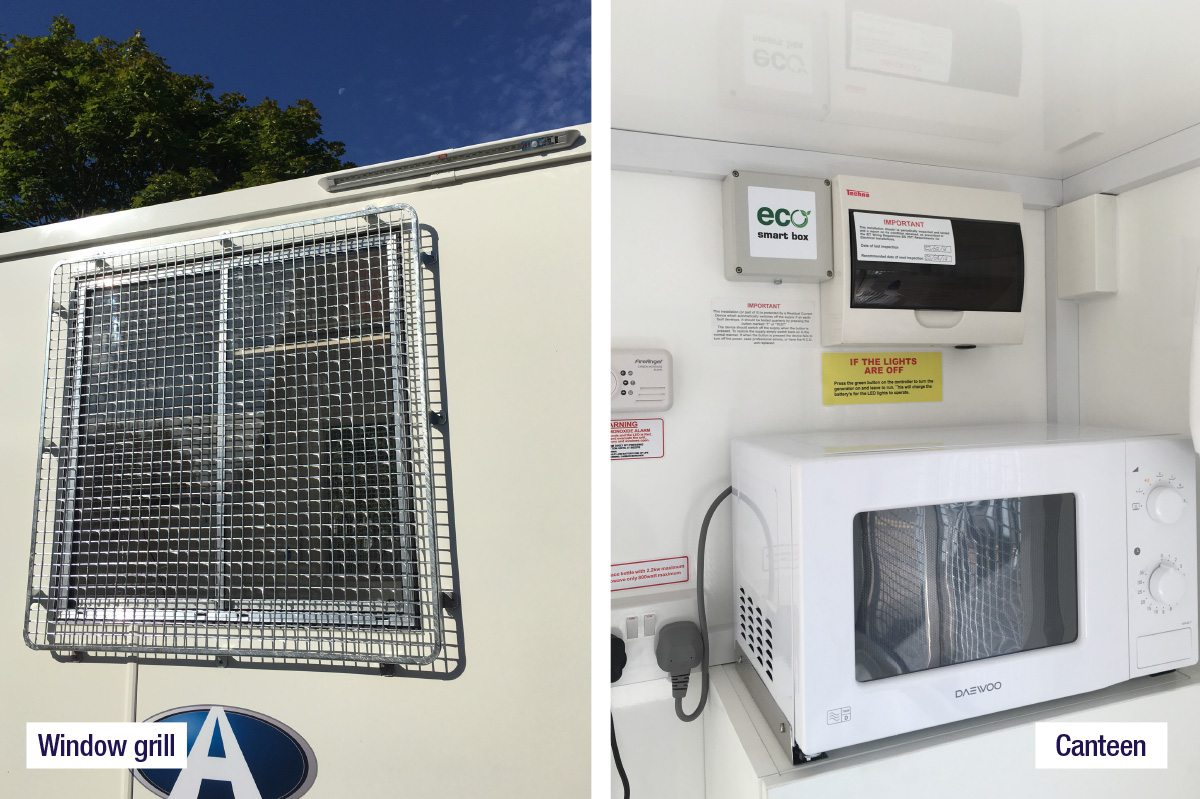

Windows:

Aluminium with a steel mesh security grill.

Weight:

Gross weight 2000Kg
Unladen weight ONLY 1712Kg

Compliant

Approved

Running stats

6h

Without generator⁽¹⁾
4h

Without generator⁽¹⁾

Energy savings - Compared to a standard 6Kva system

All our figures are costed based on REAL- LIFE daily usage, taking into account using the appliances & heating in wintertime and summertime. A full energy presentation is available on request.

Ecosmart 12
Ecosmart 12 Air

(Heating upgrade)

(a) Costs = Red diesel @ 56p/litre. Savings = Compared to an EasyCabin standard 16 with a 6Kva generator.
All figures quoted for guidance only & do not include use of hydraulics. A full energy presentation is available on request.

Optional Extras

Optional extras & upgrades

Available on this product. Click for more info.

Non-hydraulic axles
Ceramic flush toilet
Available as a static unit
Custom layouts on request
Pin boards
White boards
Spare Wheels
Decals / Branding

Downloads

Media Gallery

As part of our on-going commitment to improvement we reserve the right to alter specifications, designs or figures, without prior notice. All dimensions and weights are approximate.

(1) Figures quoted based on “optimum use”, with the generator not running, no appliances used & no hydraulics used within the stated time period.
