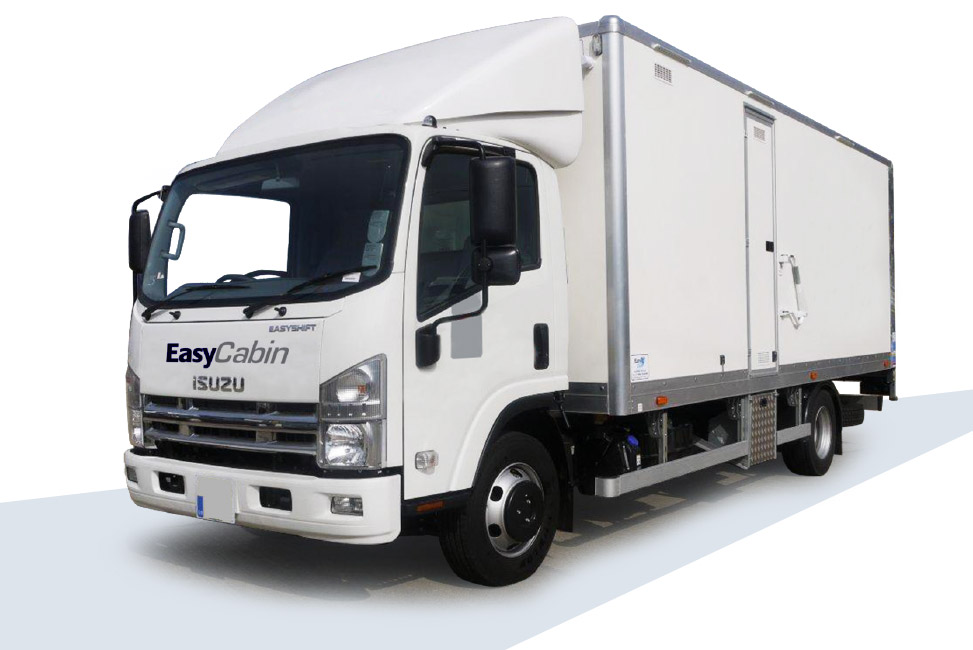

Eco Lorry Mobile Welfare Unit

Our mobile welfare unit is a handy addition to have on any construction site. Boasting many state of the art additions and benefits such as energy-efficient heating and water system, toilet, spacious office and large storage facilities. With the added ability to drive directly to the site, with no lifting or towing involved.

The eco welfare unit also comes with the following:

Canteen / Office facilities
Ceramic fresh water flush WC
Storage area with 2800kg payload
AutoSmart power & ‘Air’ diesel heating system
External LED lighting

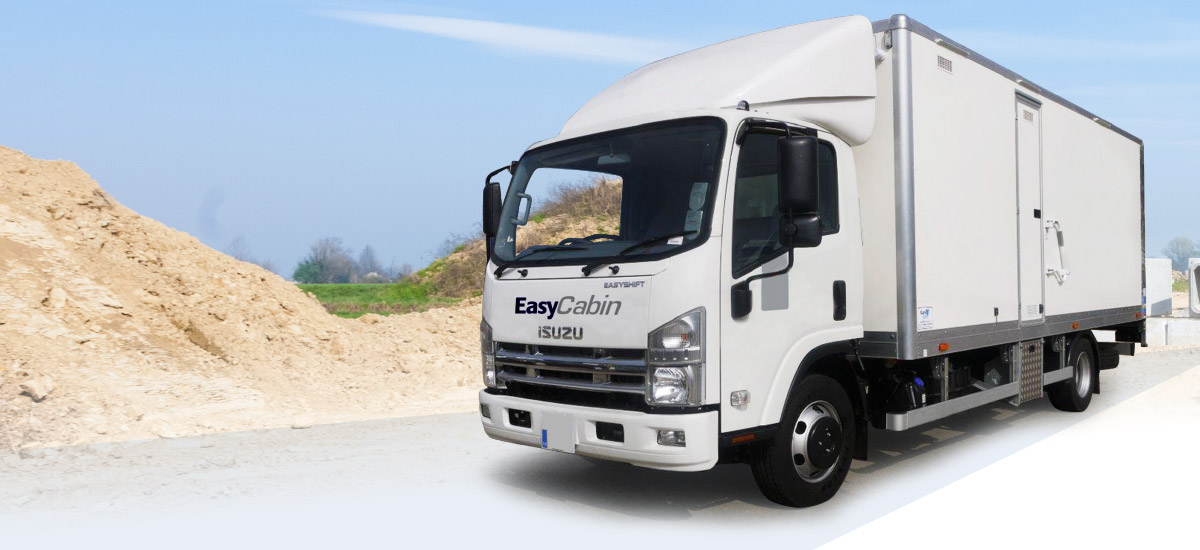

The EasyCab 3 Eco mobile welfare, office and storage unit was built originally for the UK rail sector, however it’s features and benefits could be useful for any industry that needs modern welfare facilities directly on site. The site cabin has become increasingly popular within the construction industry due to its ease of use and versatility.

The mobile welfare unit has been carefully designed to be economical, the low emissions and fuel consumption helps to reduce noise pollution. The EasyCab 3 is fully compliant with HSE regulations and with its robust construction, makes a smart choice for the demands hire industry, as well as being perfect for those remote and hard to access locations.

Get in touch today on 01582 310894 to find out more information about the eco mobile welfare unit and how it can benefit you.

Fully automatic.
Start/stop. Just
add fuel.

Energy efficient diesel
heating.

Without engine running⁽¹⁾

As standard

SHOW DETAILS

Fully automatic, startstop
operation. Just add fuel, turn on.

Just add fuel - the Autosmart system will control power demands and battery charging automatically.

All power demands are automatically managed, the generator will auto start-stop when required. The Autosmart system has all the benefits of the ‘Air’ system + increased efficiency and ease of use. As simple as add fuel and turn on.

Energy efficient diesel heating upgrade.

‘Air’ – a diesel heating system that saves energy, reduces carbon emissions and noise compared to our standard heating.

‘Air’ maintains a higher regulated cabin temperatures throughout continued operation. Running costs are reduced as less generator-on hours are required to supply heat.

Upto 78% better fuel economy for the same heating time

Contact EasyCabin for details on the ‘Air’ heating system.

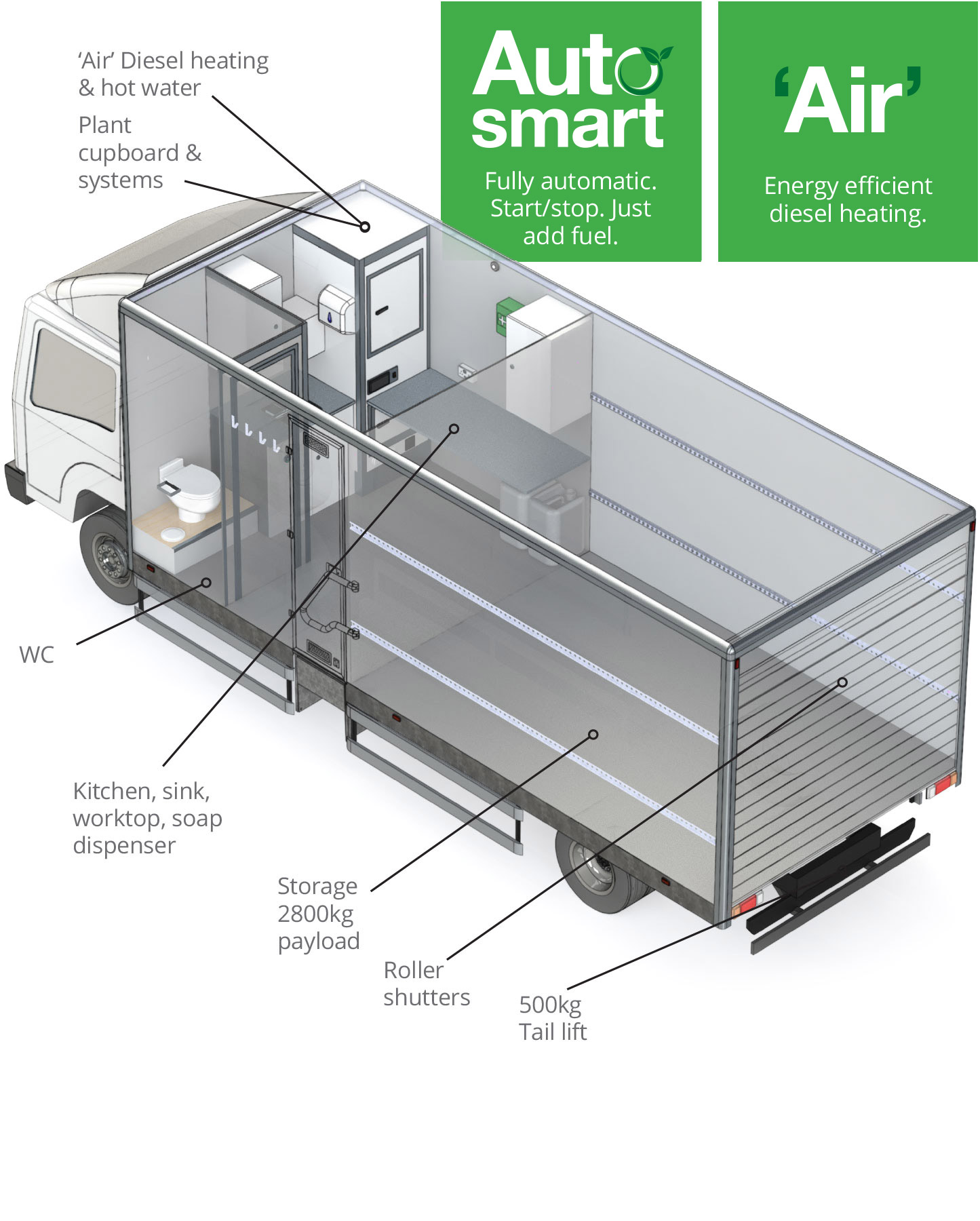

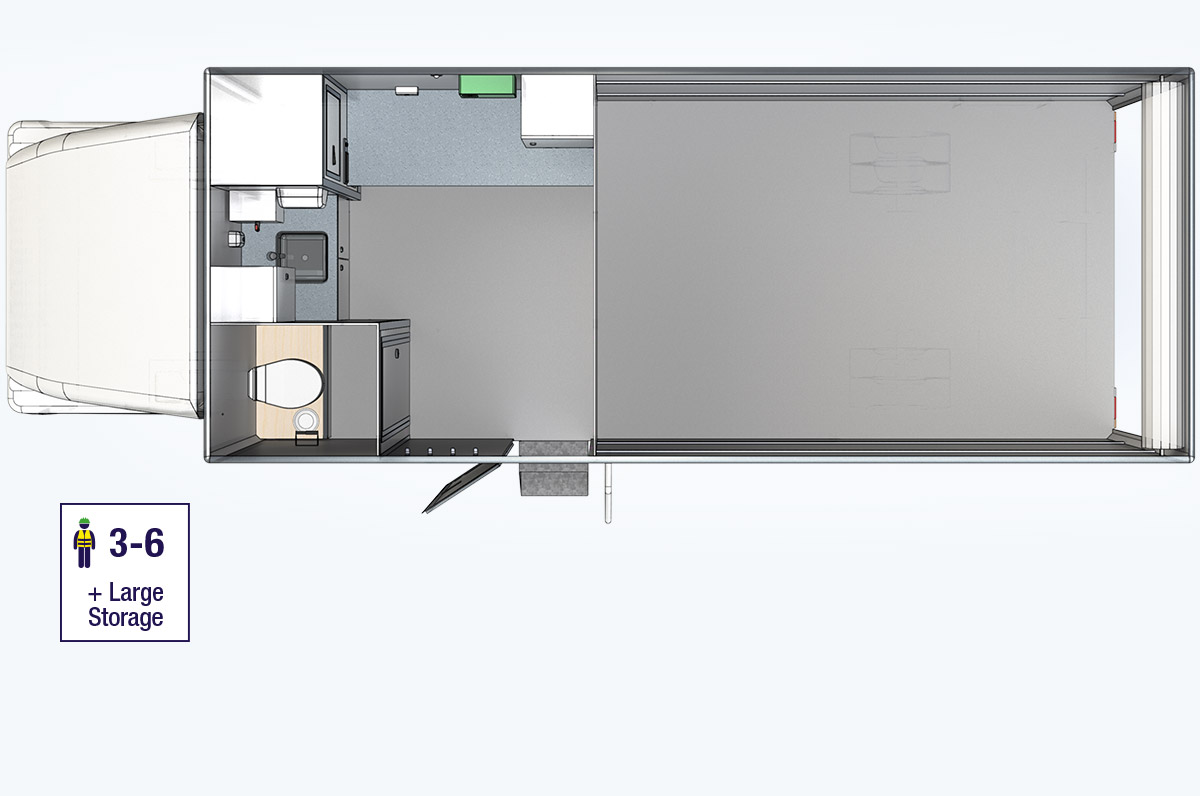

Layout

Open plan

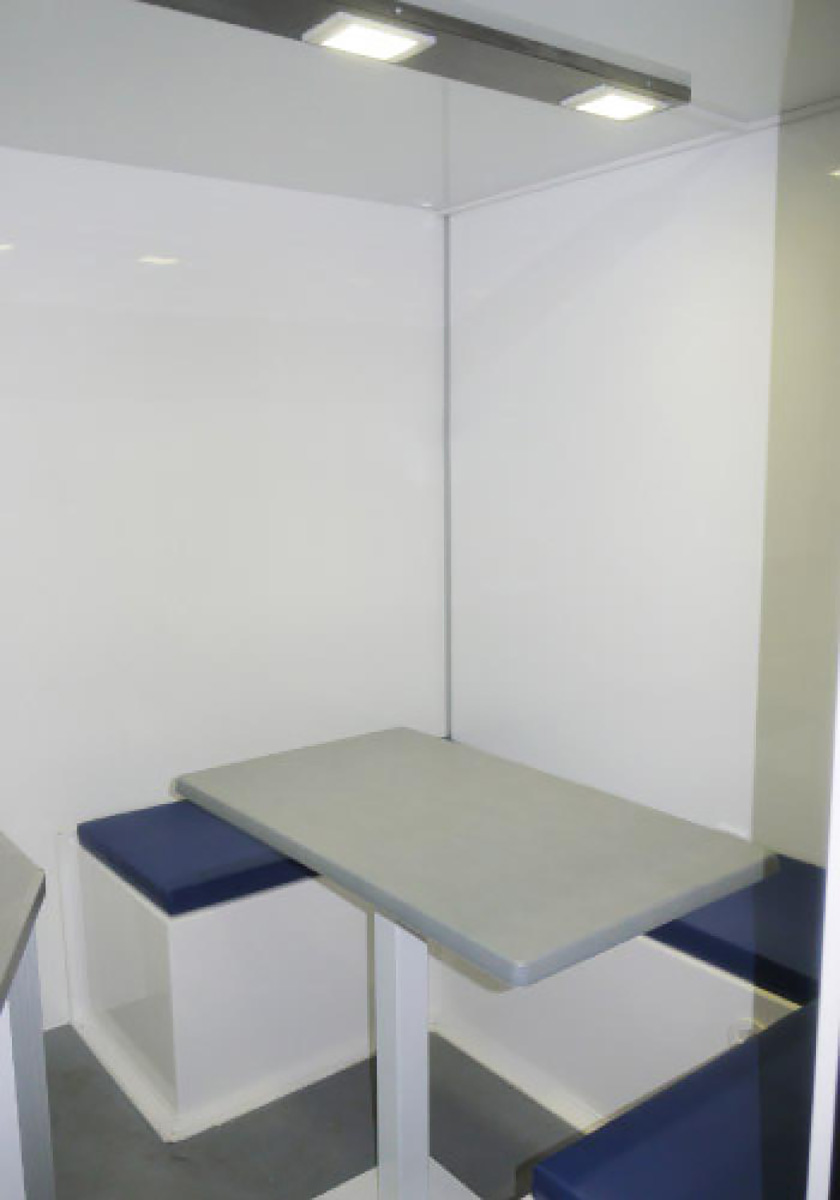

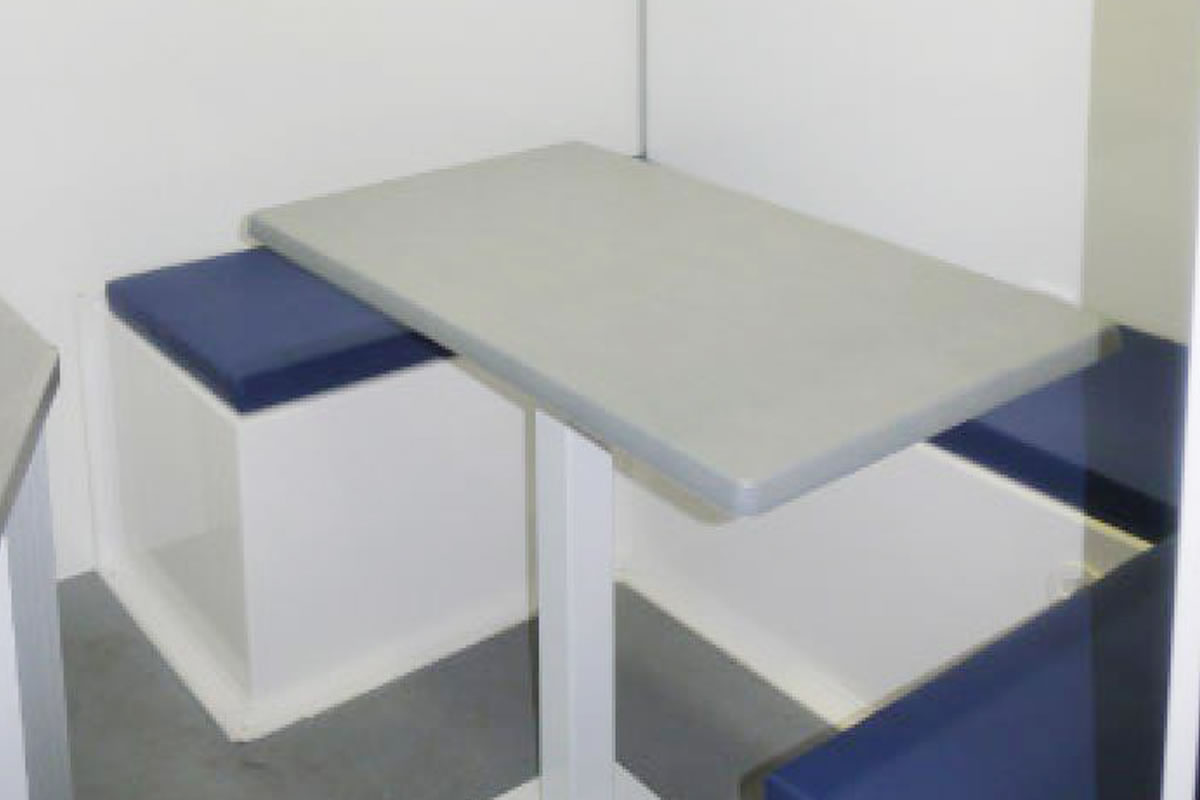

Canteen & cab seating for up to 6.

Large storage area with rear access and tail-lift.

Specifications

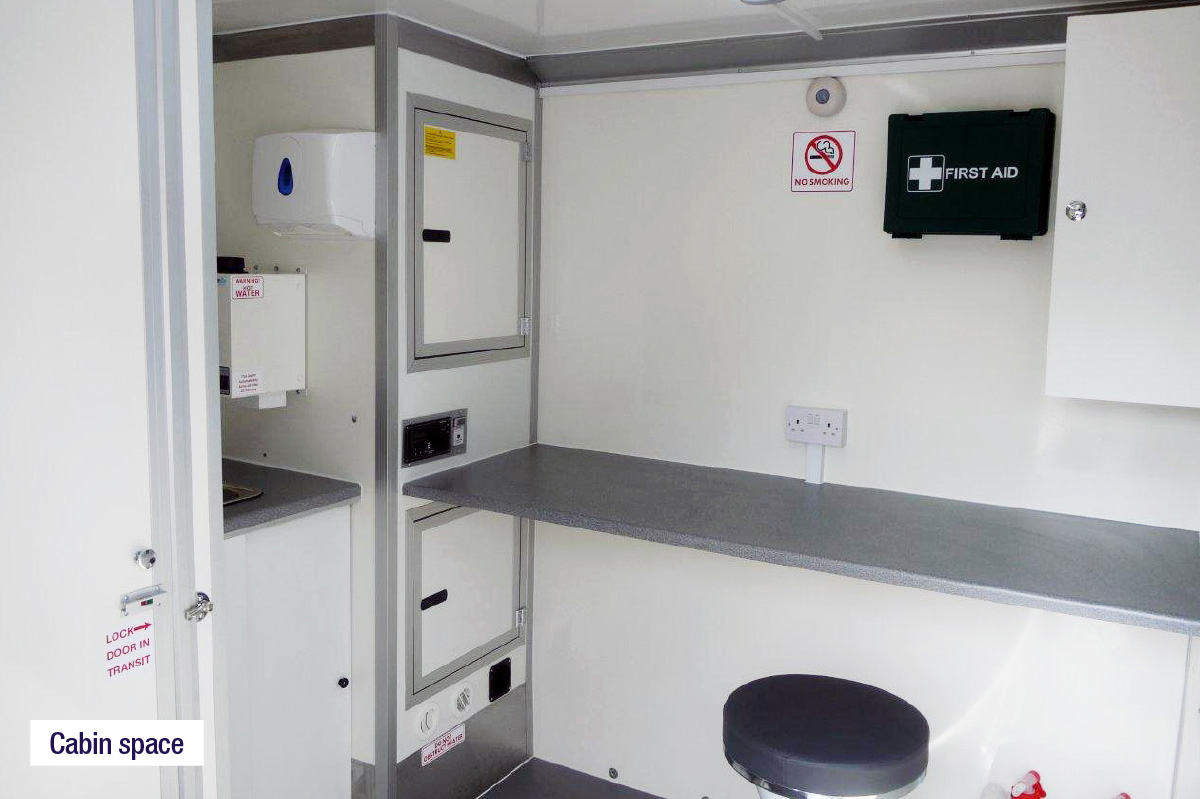

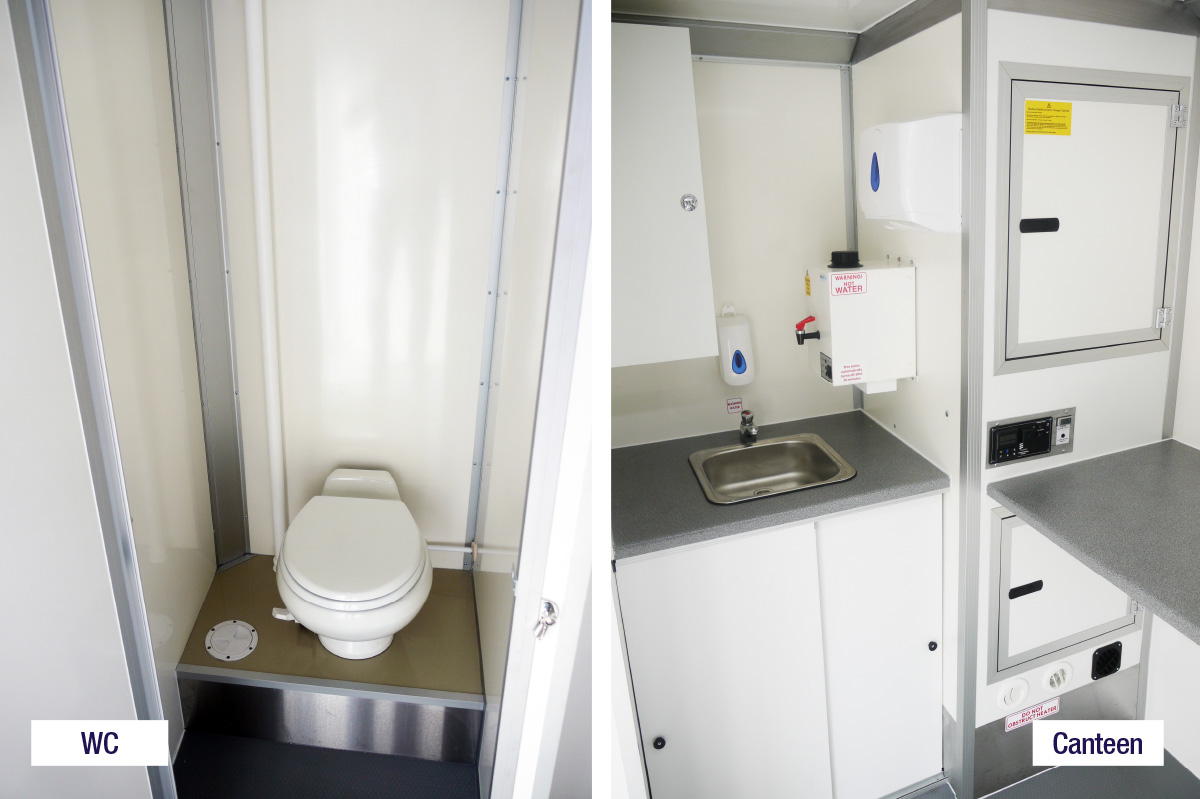

Canteen

Worktop and stool
Under seating - 125ltr water tank & eco electric system
‘Air’ blown air thermostatically controlled heating

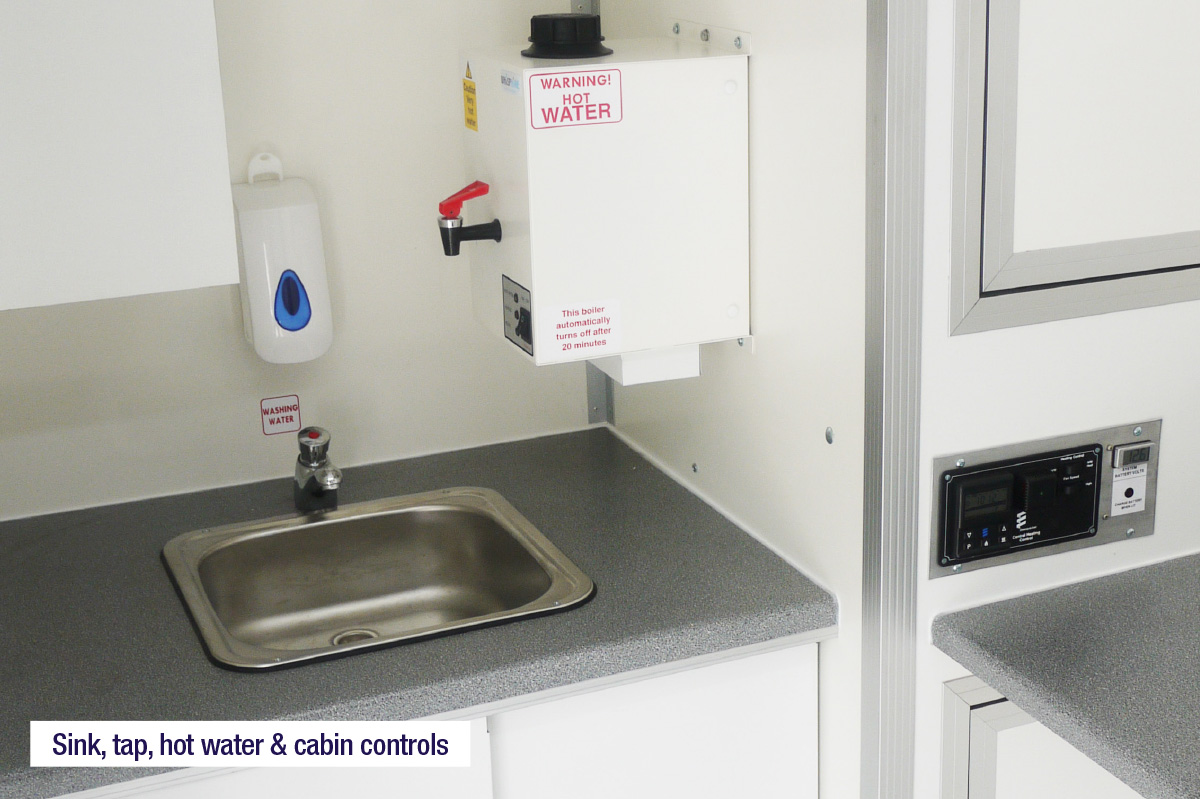

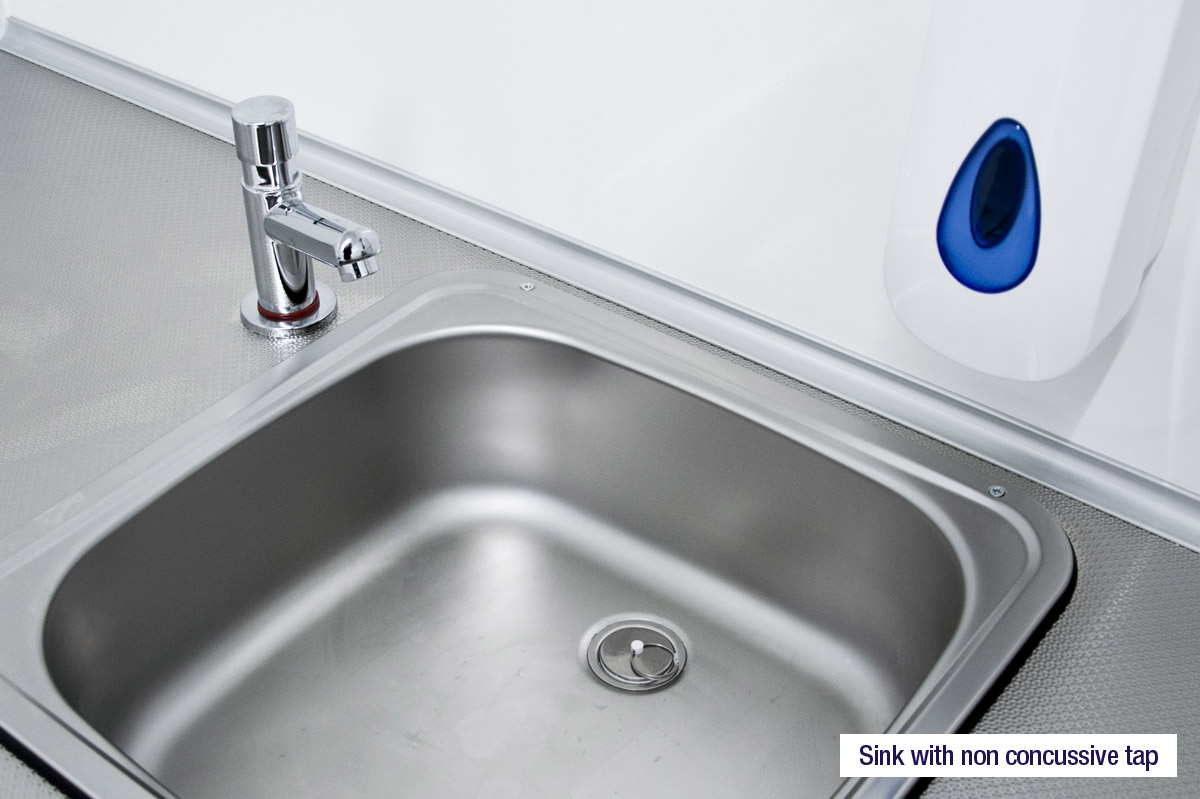

Thermostatically controlled hot water to stainless steel sink
Double socket
Soap dispenser
Microwave (Optional)
Cup dispenser
2 x Cupboard
Towel dispenser
Kettle
2 x Drinking water container
PIR activated LED lighting
Carbon monoxide detector
Notice board
Bar stool

WC

Ceramic flushing toilet
180ltr waste tanks with external drain point
PIR activated LED lighting
Coat hook
Soap dispenser
Towel dispenser
Toilet roll holder

Technical Equipment

PIR activated interior lighting
LED exterior lighting
24v - 12v battery charger
240v - 12v battery charger
1kw inverter
AGM batteries 3 x 150 amp
Battery condition monitor
‘Air’ heating and hot water system

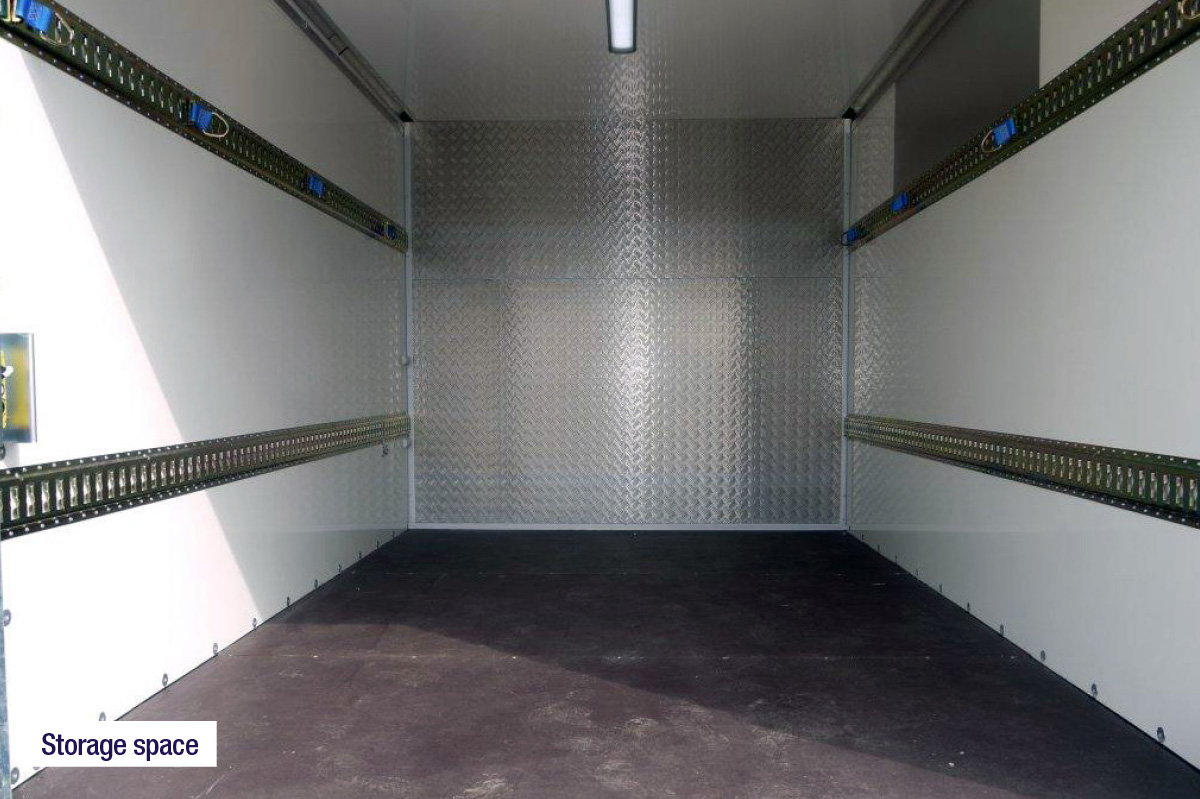

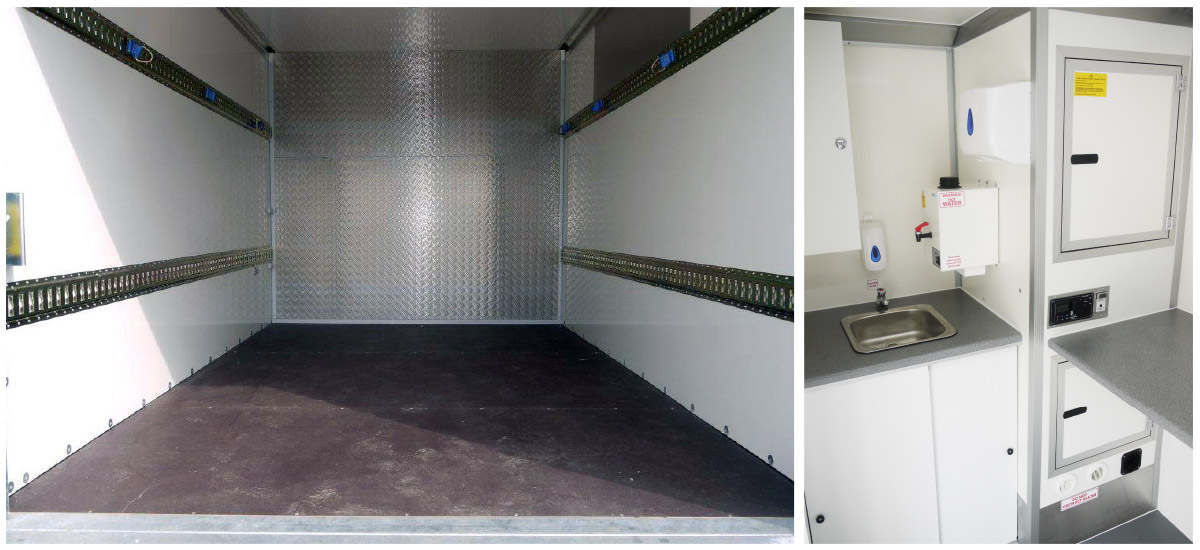

Storage area

Roller shutter access
500kg Dell tail lift
Tail lift automatic side guards
Side load restraint rails
Chequer plate aluminium to bulkhead
LED light
PIR activated interior lighting
LED exterior lighting
24v - 12v battery charger
240v - 12v battery charger
1kw inverter
AGM batteries 3 x 150 amp
Battery condition monitor
‘Air’ heating and hot water system

Outside

Walls:

14mm seamless GRP high strength composite panels

Roof:

Seamless insulated 34mm composite panel

Floor:

18mm phenolic faced ply in store and 14mm in welfare area

Doors:

14mm GRP with security lock, fold out step and security hand rail

Windows:

Sliding window optional

Vehicle

Isuzu Euro 6, N75.190E
Easyshift
3 year warranty, PDI, Tachometer calibration, road fund licence and first registration fee.
5100mm extended wheelbase
6100mm x 2438mm GRP body
Cab roof deflector
Under run protection and side guards

Compliant

Approved

Optional Extras

Bespoke layouts on request
Built on a chassis or your choice

Downloads

Media Gallery

As part of our on-going commitment to improvement we reserve the right to alter specifications, designs or figures, without prior notice. All dimensions and weights are approximate.

(1) Figures quoted based on “optimum use”, with the generator not running, no appliances used & no hydraulics used within the stated time period.
