Welfare Unit Van

Our welfare unit van offers complete welfare & transport facilities neatly packed inside a medium wheelbase van. 7 - 8 seats with canteen and toilet.

Mobile welfare van for 7/8 persons (ECWTA Type Approved)

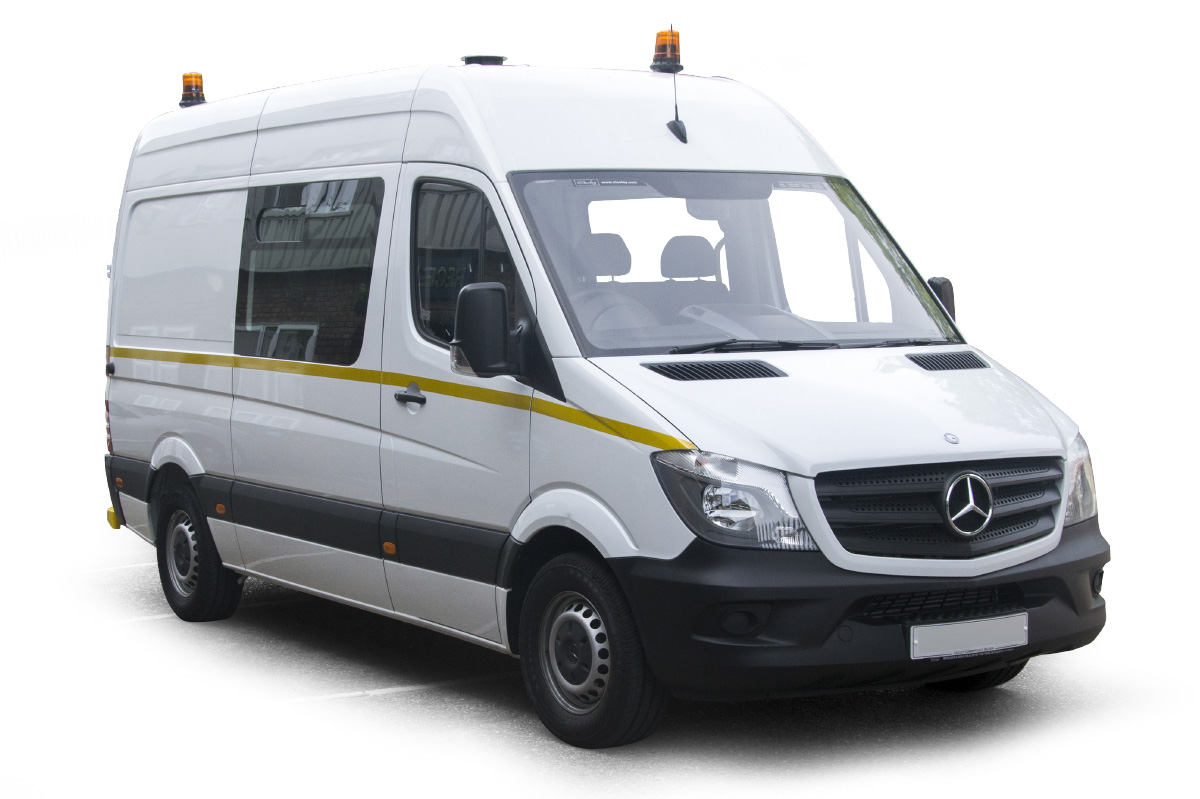

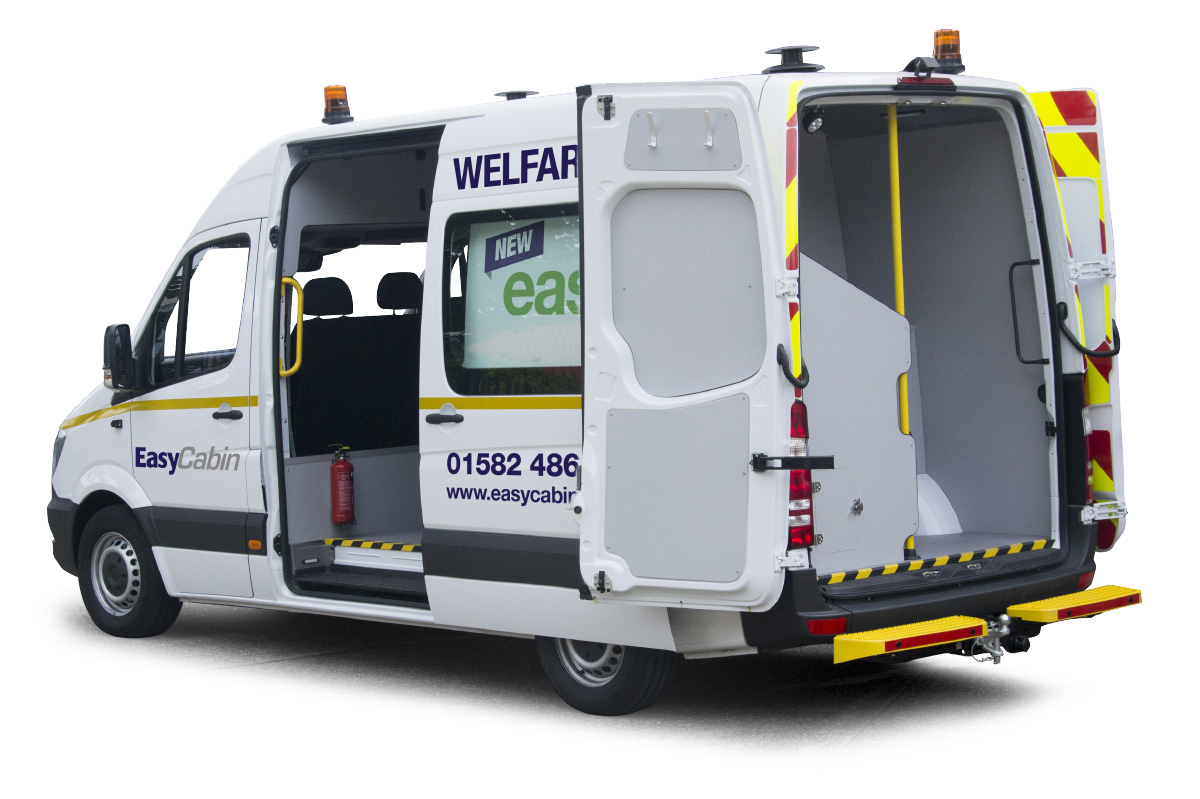

Based on a Mercedes sprinter MWB van unit
‘Air’ efficient diesel heating system + hot water

Mobile Welfare Van

Comfort is guaranteed via ‘Air’ blown air heating and hot water is provided from the 12 volt water boiler. The welfare unit van is fitted with a microwave, a sink with thermostatically controlled water.

The water supply is controlled through a nonconcussive water tap and the seating a set up by a crew table with handy phone or device charging sockets.

Our welfare unit vans were designed and manufactured, carefully considering each and every element necessary to make work-life as comfortable as possible at all times. The portable nature of these mobile welfare vans provides your site with added convenience, as the unit can be positioned and then moved as often as necessary. If you are looking for a simple option that is highly effective, our welfare unit vans are the perfect solution.

Fully automatic.
Start/stop. Just
add fuel.

Energy efficient diesel
heating.

Intelligent, efficient operation.

Without engine running⁽¹⁾

As Standard

SHOW DETAILS

Fully automatic, startstop
operation. Just add fuel, turn on.

Just add fuel - the Autosmart system will control power demands and battery charging automatically.

All power demands are automatically managed, the generator will auto start-stop when required. The Autosmart system has all the benefits of the ‘Air’ system + increased efficiency and ease of use. As simple as add fuel and turn on.

Energy efficient diesel heating upgrade.

‘Air’ – a diesel heating system that saves energy, reduces carbon emissions and noise compared to our standard heating.

‘Air’ maintains a higher regulated cabin temperatures throughout continued operation. Running costs are reduced as less generator-on hours are required to supply heat.

Upto 78% better fuel economy for the same heating time

Contact EasyCabin for details on the ‘Air’ heating system.

Layout

Open plan

Standard layout

Seating for 4-5
Separate toilet
Cab seating 3

Specifications

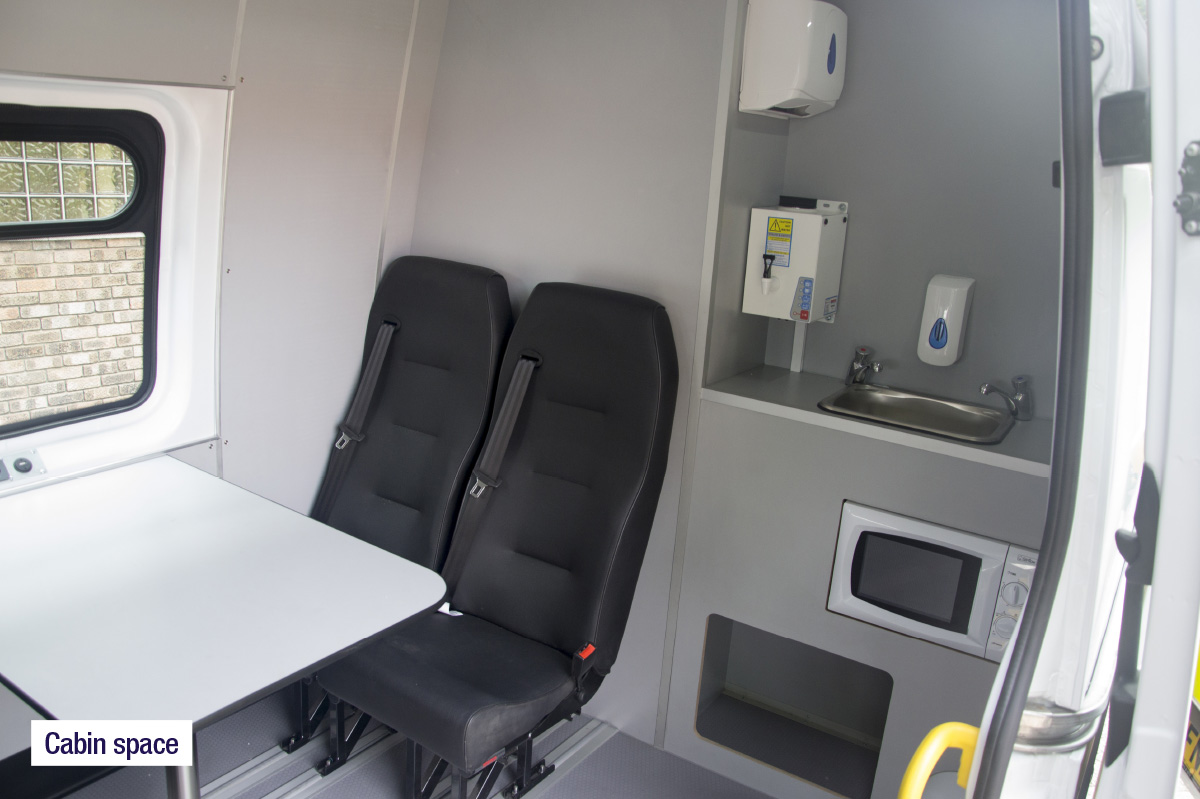

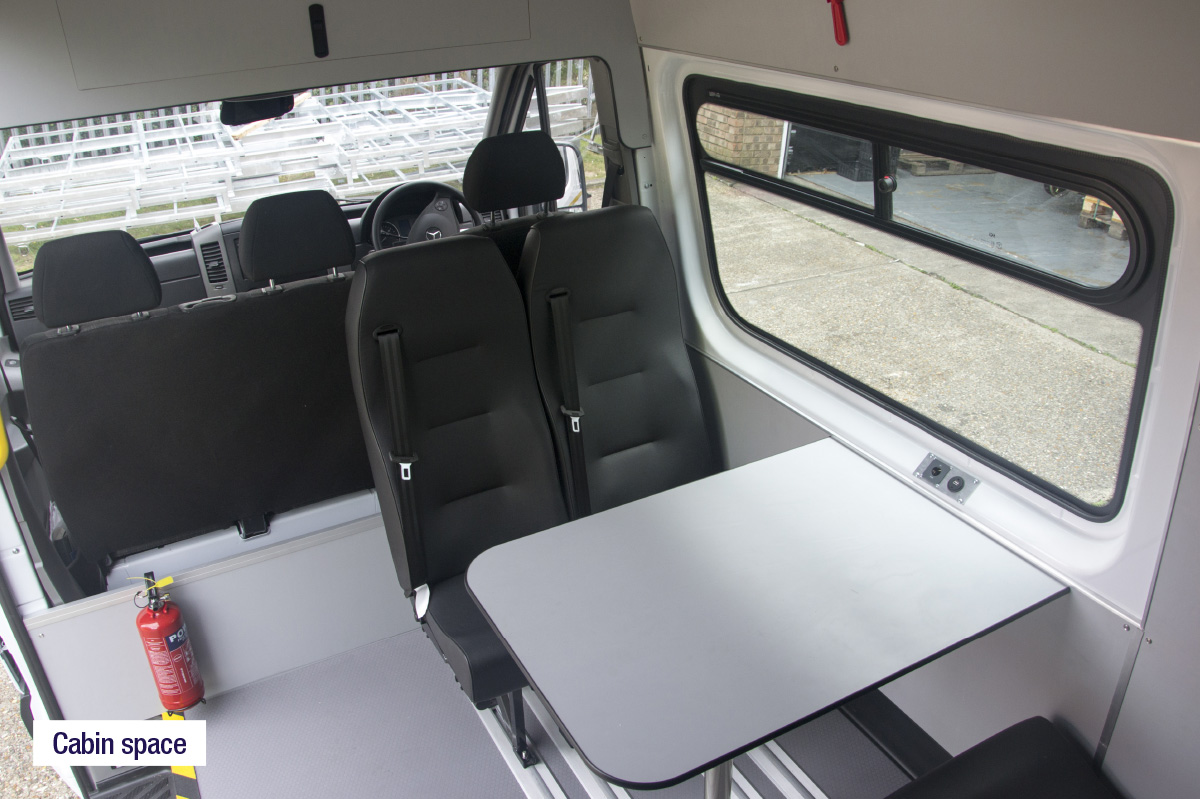

Front mess / seating area

LED lighting

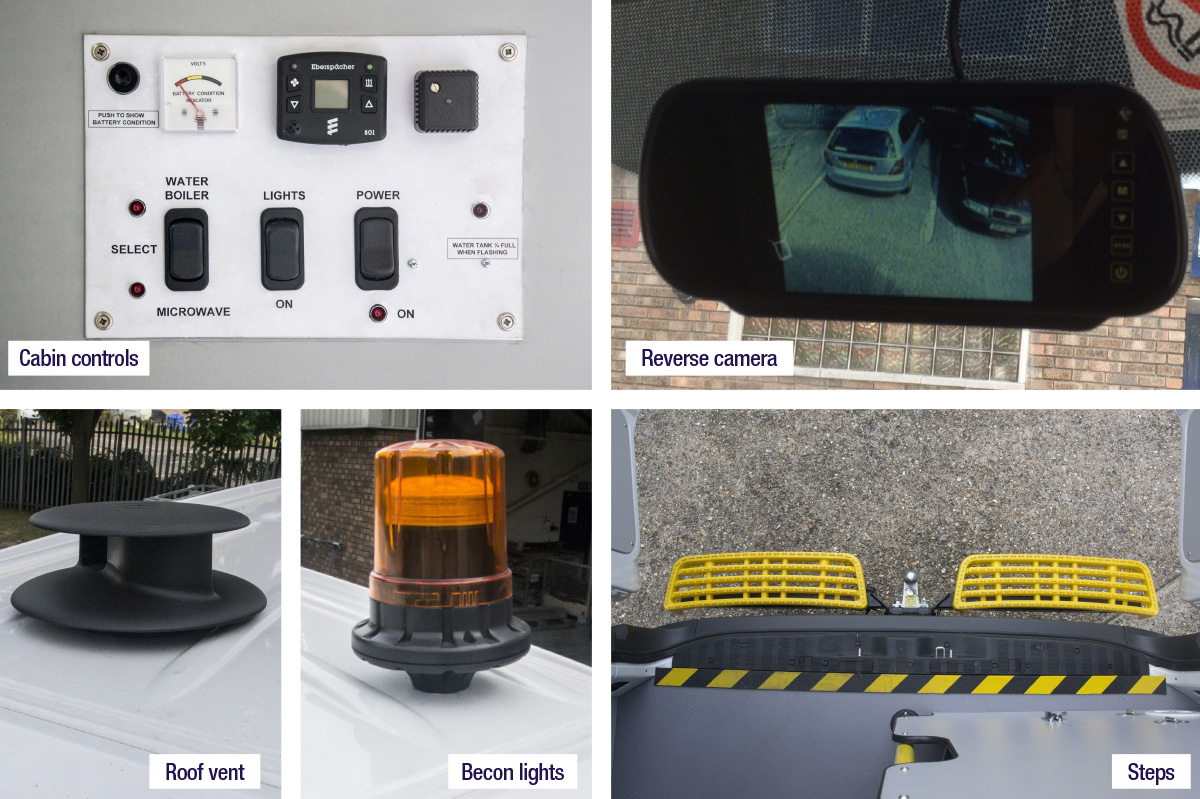

Control panel for light, heating, water boiler & microwave
‘Air’ blown air heating
12 volt Water boiler
Microwave
Sink with thermostatically controlled water
Non-concussive water tap
Crew table with charging sockets
4 Seats crash tested Black vinyl with M1 floor track
12mm phenolic grey non slip Flooring
Grey lining board 6mm & 12mm
Rotating roof vent
Cab storage above driver and passengers
Invertor
2 batteries 110AH
Drinking water container
Soap dispenser
Towel dispenser
Fire extinguisher
Emergency glass hammer

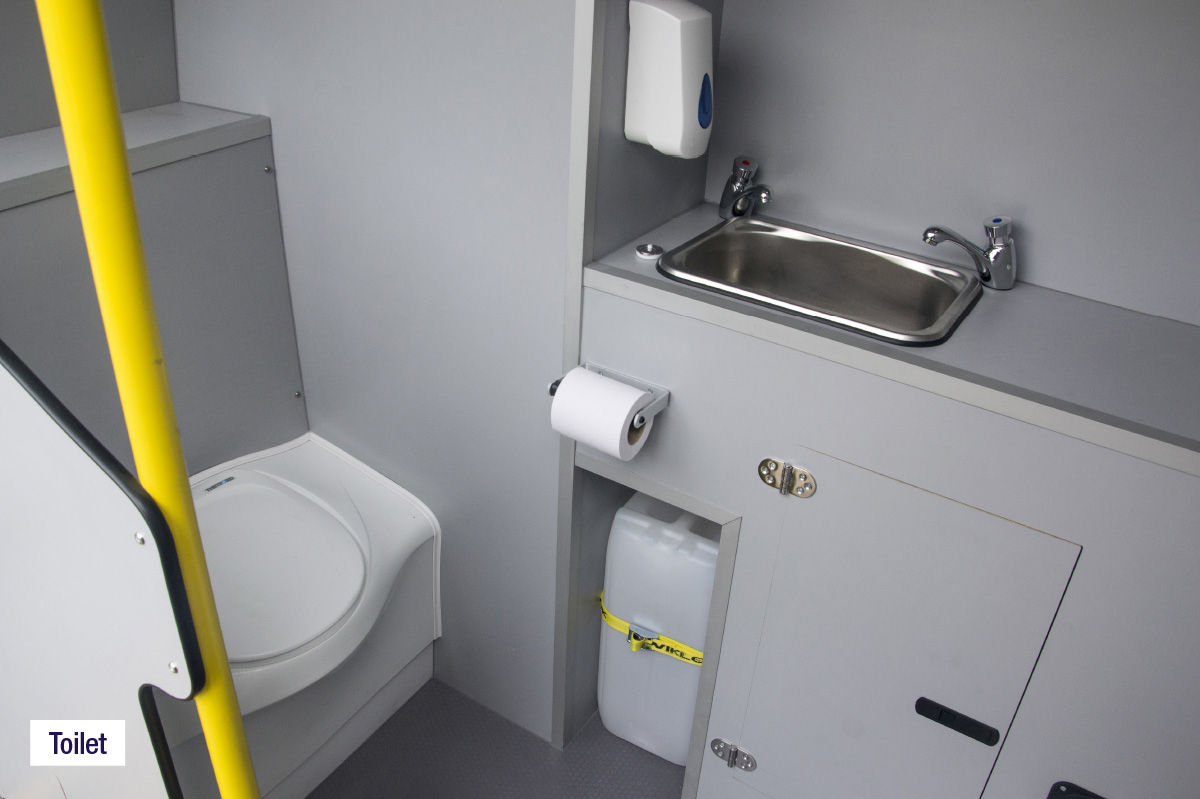

WC

LED light with PIR
LED external spot light
‘Air’ blown air heating
Cassette toilet fresh water flush
Toilet roll holder
Fresh water tank
¼ water level indicator
Sink to wash up to forearm with thermostatically controlled water
Non-concussive water tap
Waste water container
12mm phenolic grey non slip Flooring
Grey lining board 6mm & 12mm
Rotating roof vent
Coat hooks
Yellow entrance handle
Privacy screen
Mirror
Soap dispenser
Towel dispenser

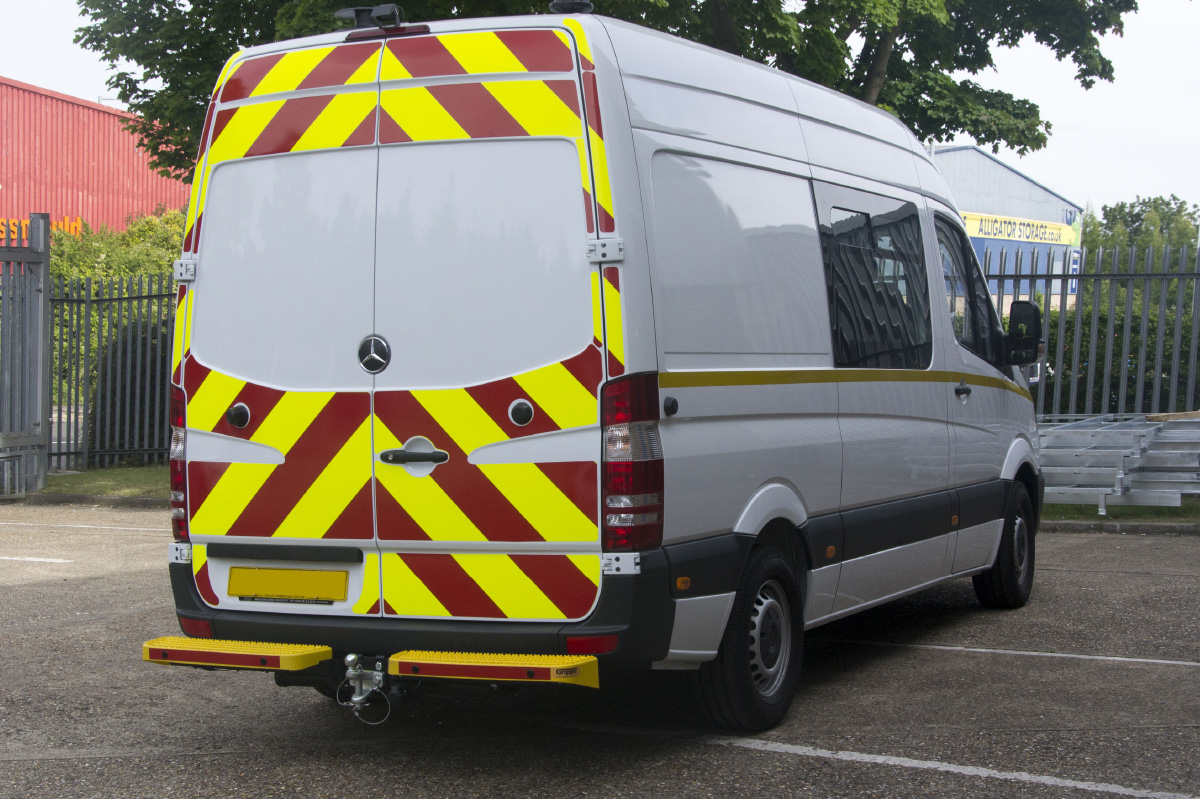

Outside

Vehicle:

Mercedes Sprinter or similar MWB unit

Lights:

2 x Amber LED beacon mounted of roof.

Livery:

Chapter 8 reflective livery.

Window:

Crew area bonded windows

Cab:

Reverse / side camera with colour screen.

Hitch:

Tow bar and step with ball & pin.

Compliance:

N1 ECWTA Type Approved with 7 seats
M1 ECWTA Type Approved with 8 seats

Compliant

Approved

Optional Extras

First aid kit
Ceramic flush toilet with pump out system
Eye wash dispenser
Extra containers
Sign writing
Reverse sensors
Bespoke layouts on request

Downloads

Media Gallery

To gain a better visual understanding of our welfare unit vans, explore our gallery below:

As part of our on-going commitment to improvement we reserve the right to alter specifications, designs or figures, without prior notice. All dimensions and weights are approximate.

(1) Figures quoted based on “optimum use”, with the engine not running, no appliances used & no hydraulics used within the stated time period.
