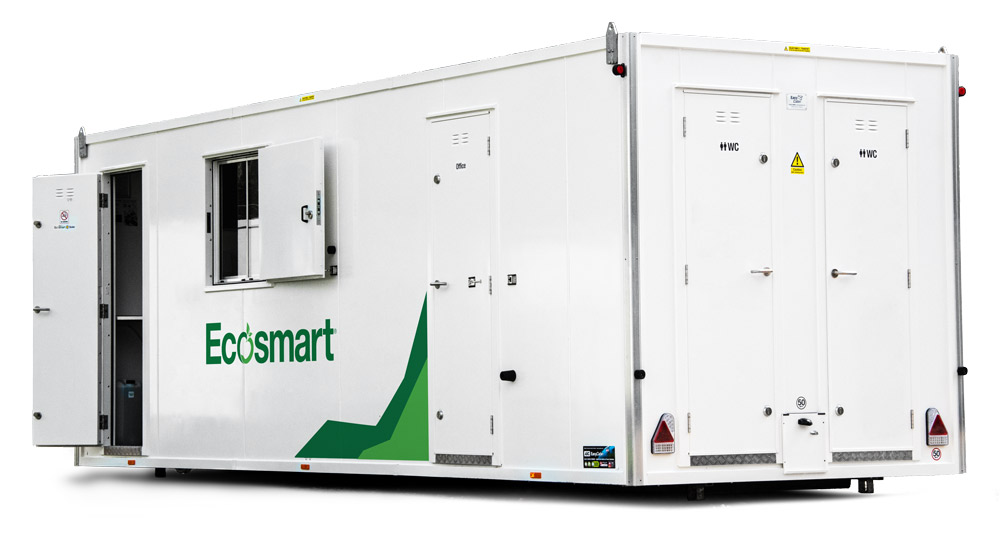

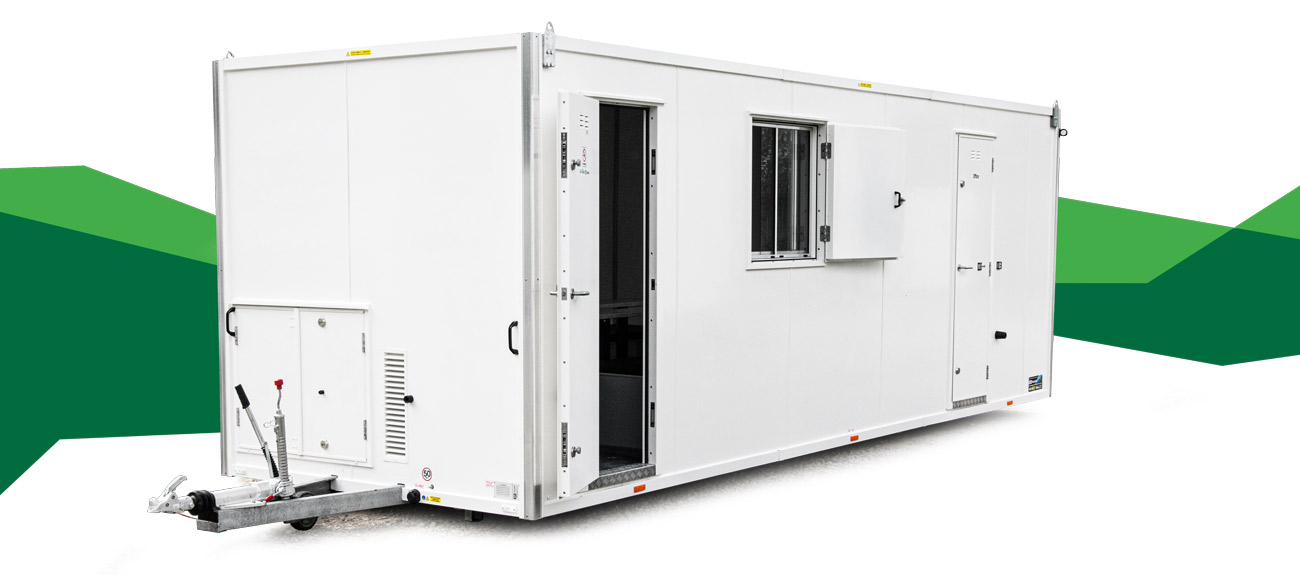

The Ecosmart 22.9 has all the benefits of a static welfare unit with the flexibility of a mobile towable trailer. Ideal for any size or type of site.
Large canteen and bench seating for 12
Large office space for 3
Separate toilet and drying room
Unique hydraulic axles for setup in 45 seconds
Upgrade with ‘Air’ efficient diesel heating system

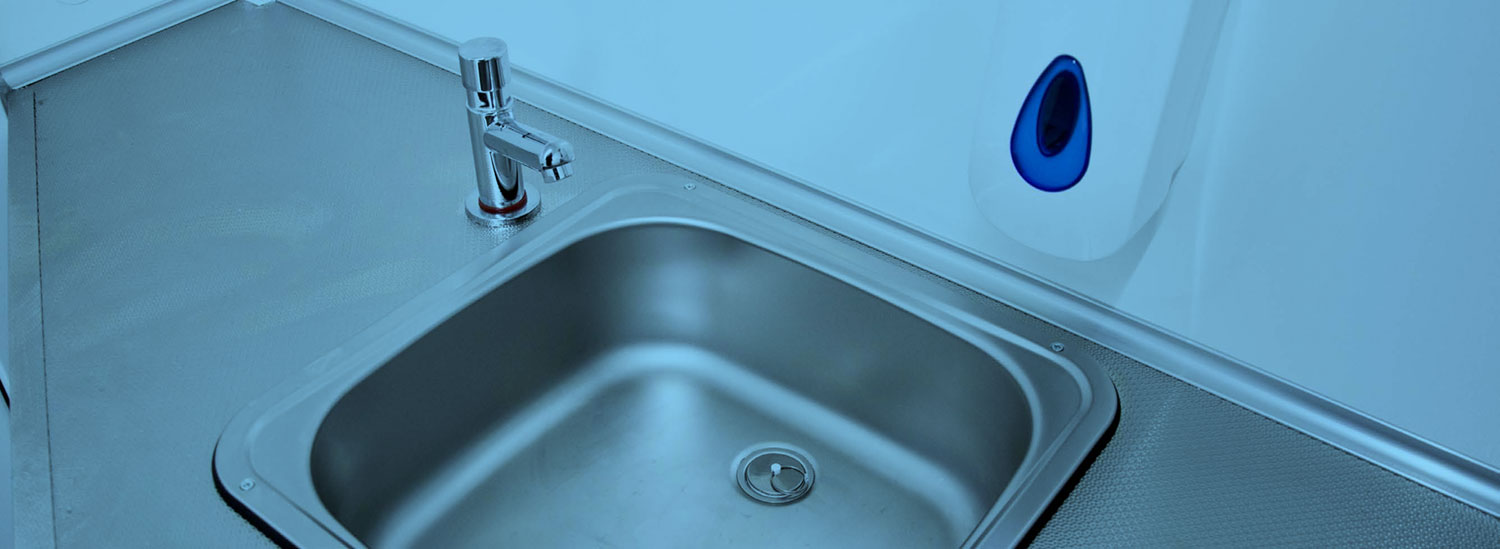

The Ecosmart 22.9 is the latest development in sustainable onsite welfare facilities. Fitted with a table and bench seating, the Ecosmart 22.9 has running hot water, heating system and a microwave + kettle. The unit is fitted with stainless steel worktops, a stainless steel sink & seamless high gloss wall surfaces for effortless cleaning and long durability.

The Ecosmart 22.9 has a host of environmentally sensitive features, including PIR activated lighting that helps to cut down on energy use and cost.

2733kg
Unladen weight
3000kg
Gross weight

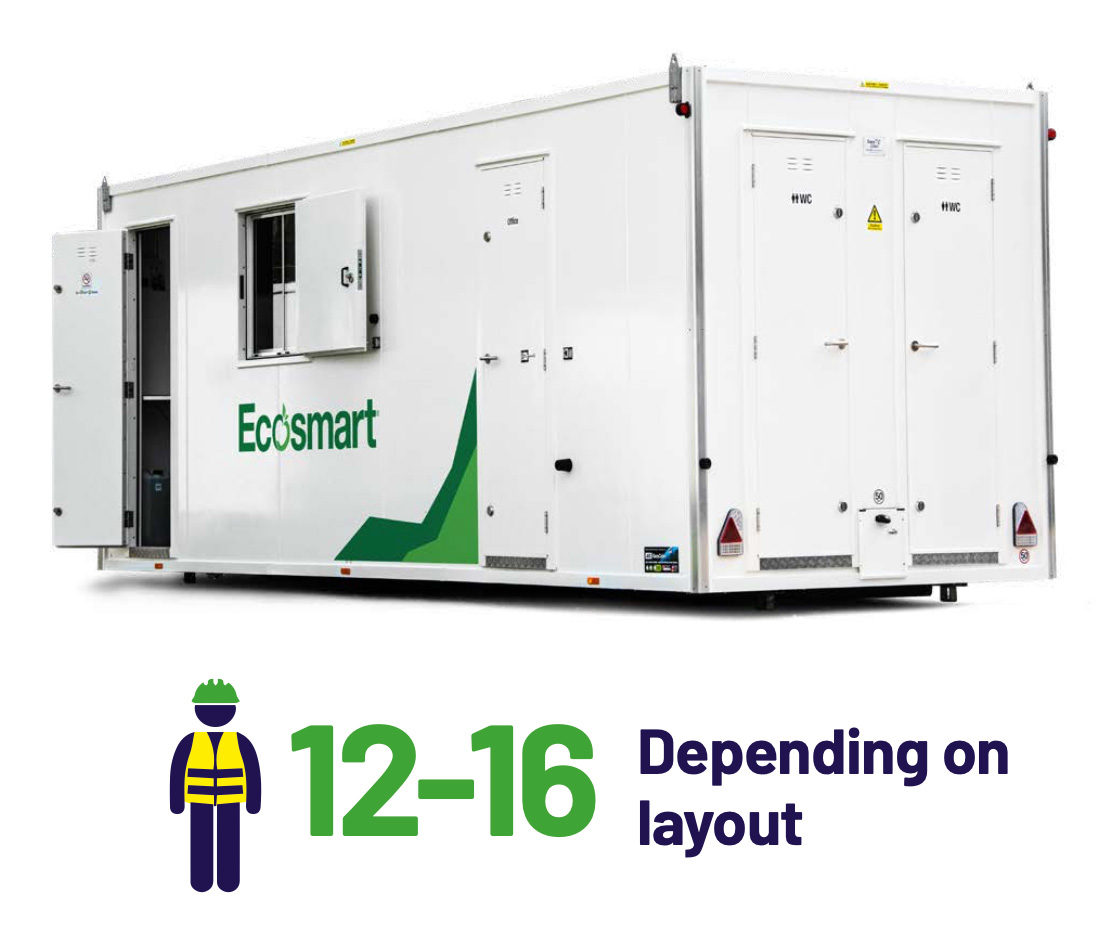

W 2530
L 6979
H 2870

Dimensions (mm)
45s
Quick & easy setup(2)
UP TO6h
Without generator(1)
UP TO4h
Without generator(1)

More layout options coming soon

Open plan
layout

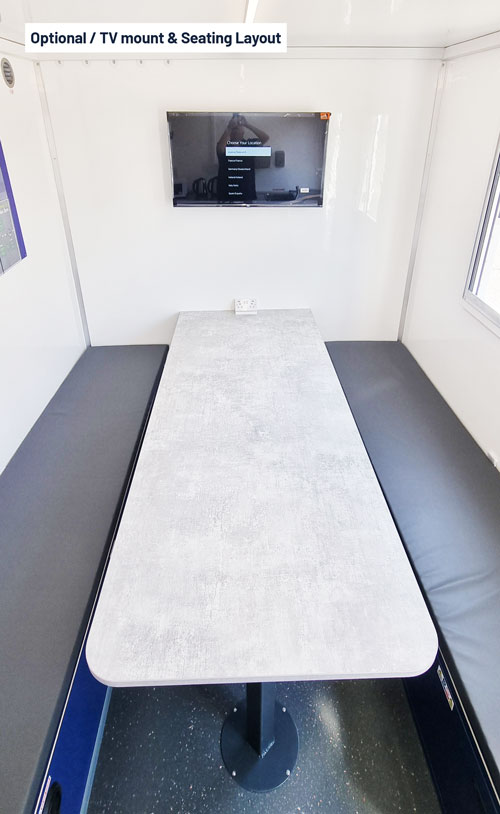

Bench seating for 12

Separate office for 3

Separate drying room & toilet

Xtra
layout

Seating for 16

Separate drying room & toilet

+
layout

Seating for 10

Separate large office

Separate drying room & toilet

Specifications

Movability

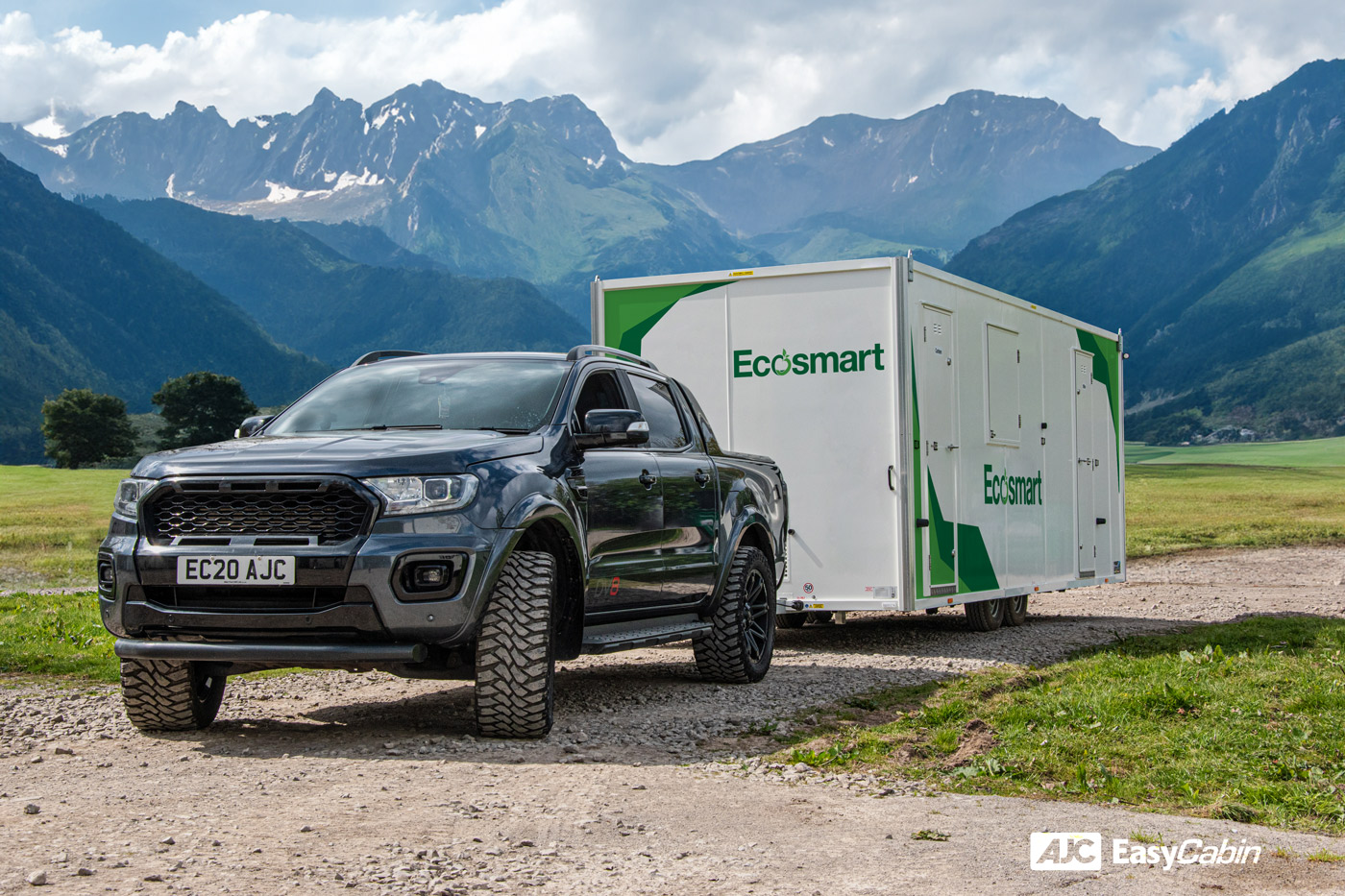

  • Lightweight easy to tow
  • Soft cushioning hydraulic system

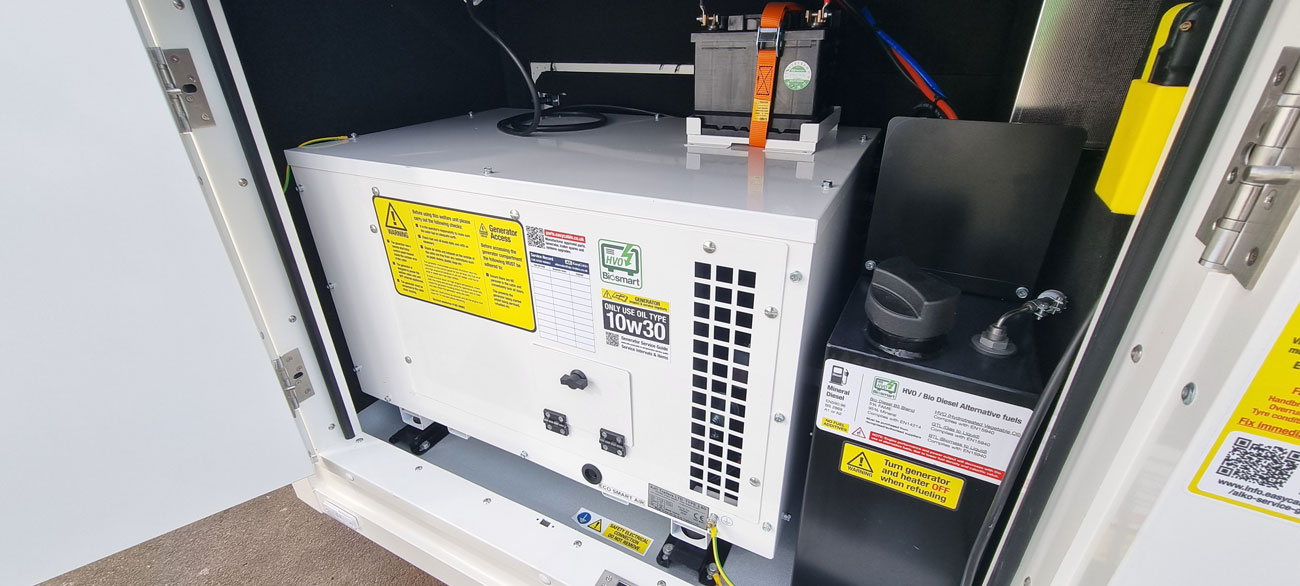

  • Balanced loading, with generator in the front, for better towing
  • 14” wheels with the ability in the event of a puncture to change at the side of the road with ease
  • Road lights and number plate holder built in, no need for a tailboard to be fitted
  • Accidental collision can occur, however our corners are designed to absorb impact and are easily maintained

Sustainability

  • Fully insulated wall and roof system with no cold bridging
  • LED lighting & hot water without the need for the generator running all day
  • Low noise pollution
  • Low fuel consumption
  • Low CO2 emissions
  • Automatic generator timed shut off for unnecessary fuel usage.
  • Timer heating controls (“Air” heating upgrade)
  • Heating usage without the generator operating (standard or “Air”)

Facilities

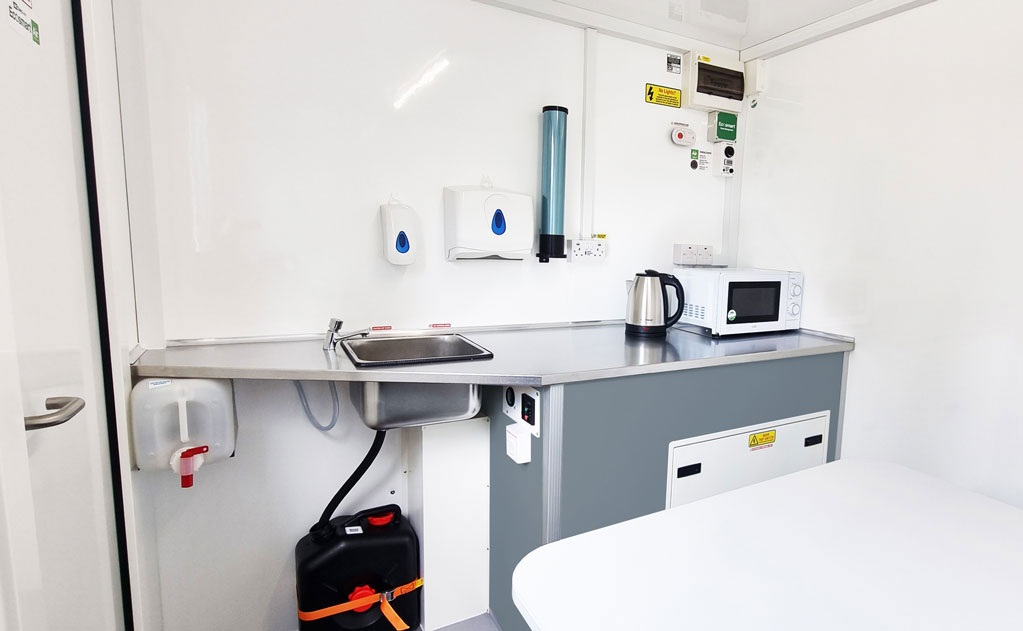

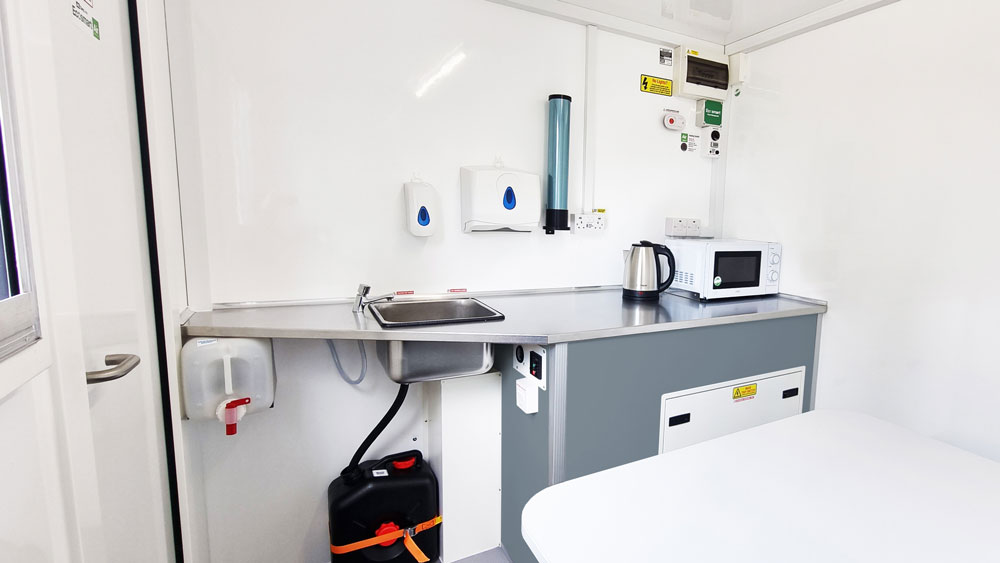

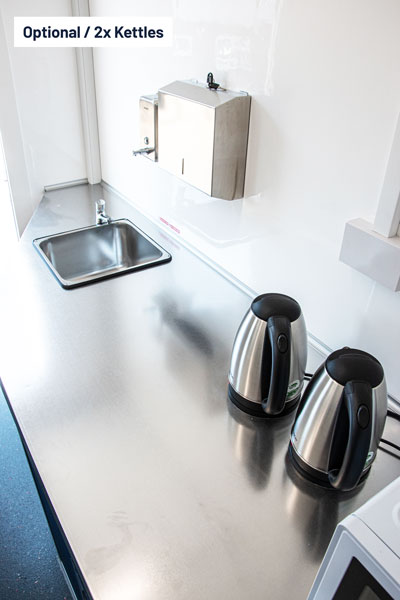

  • Easy to use canteen facilities; kettle & microwave
  • Extra-LARGE & comfortable seating area

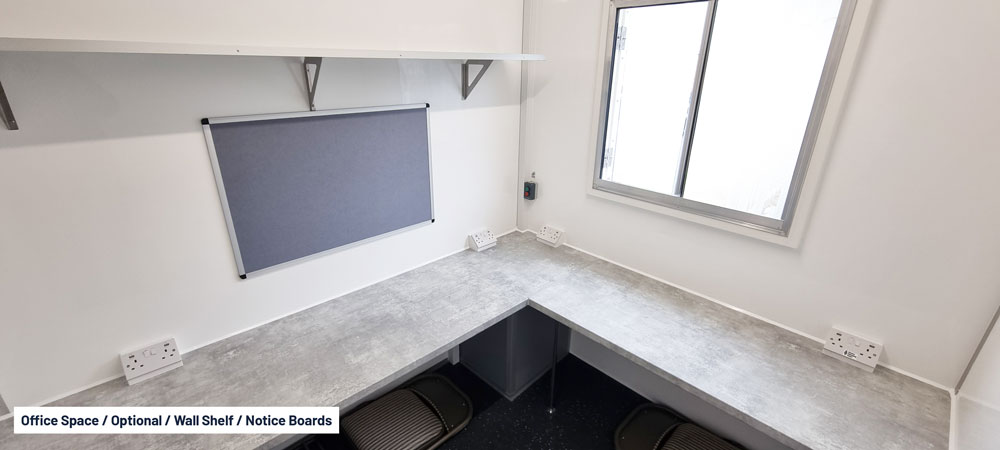

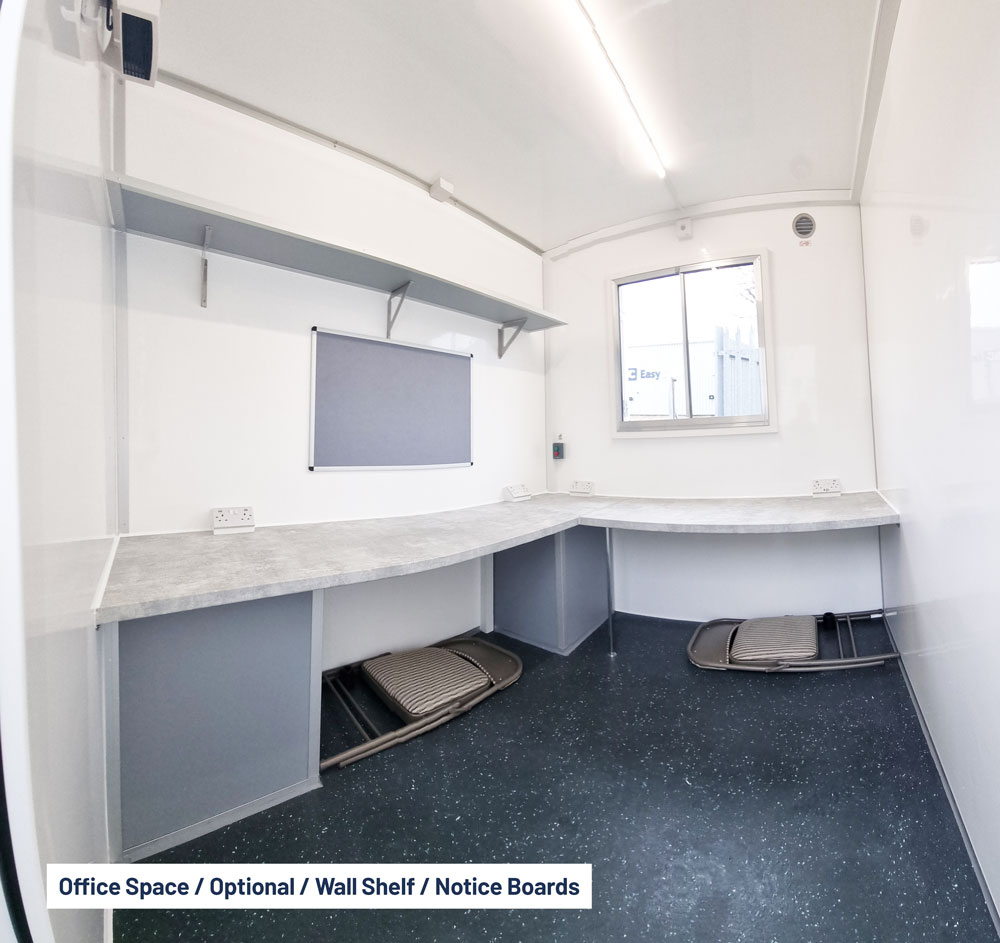

  • Large office space for 3 persons
  • Warm water washing facilities

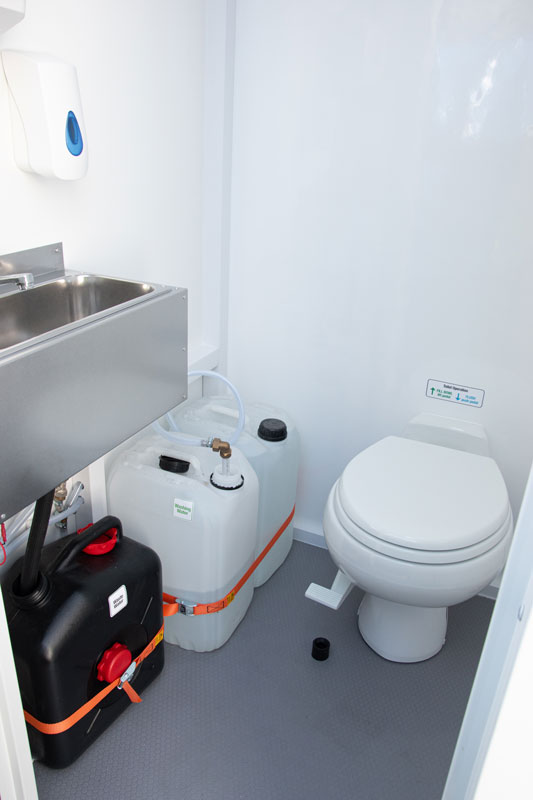

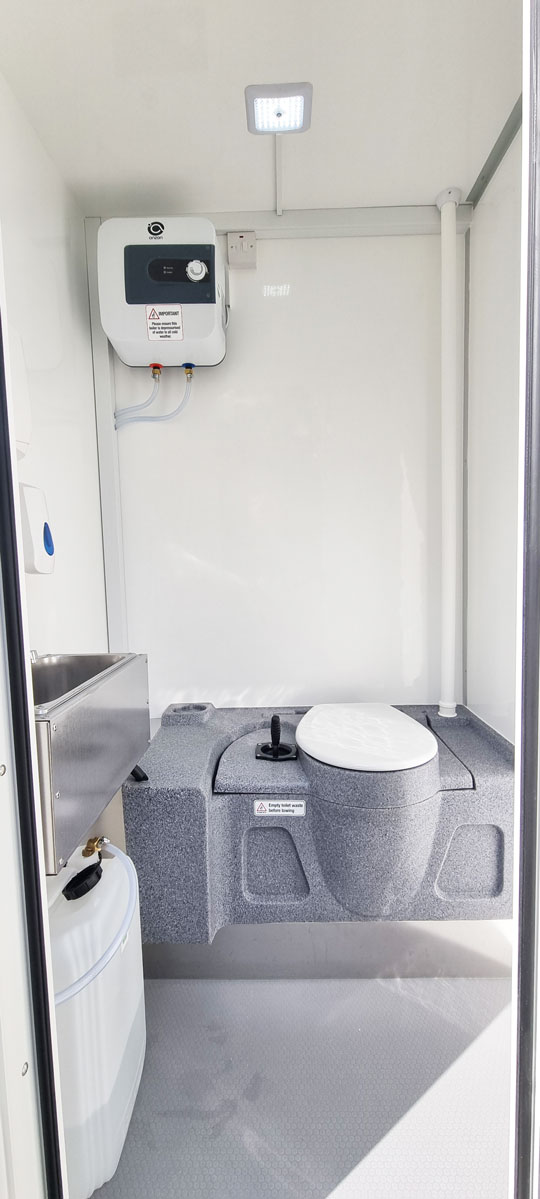

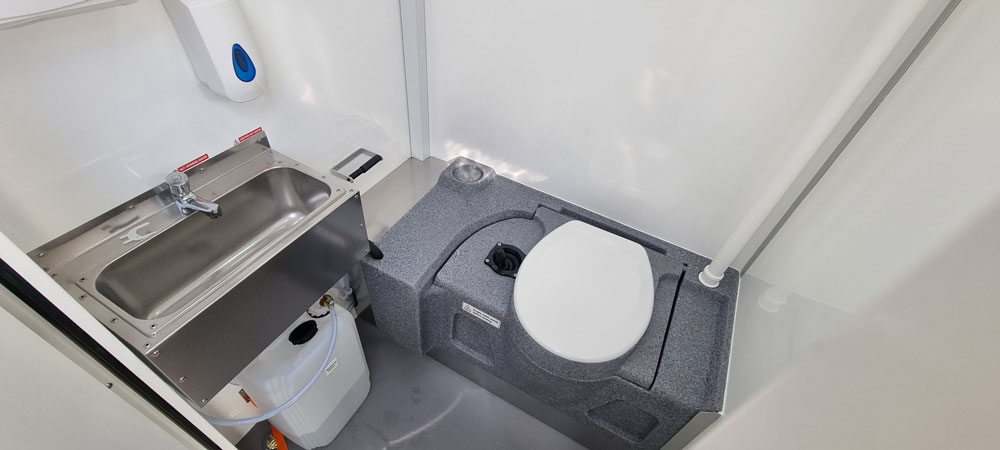

  • Recirculating toilet
  • Forearm wash basin
  • All interior and exterior surfaces are tough, durable and wipe clean

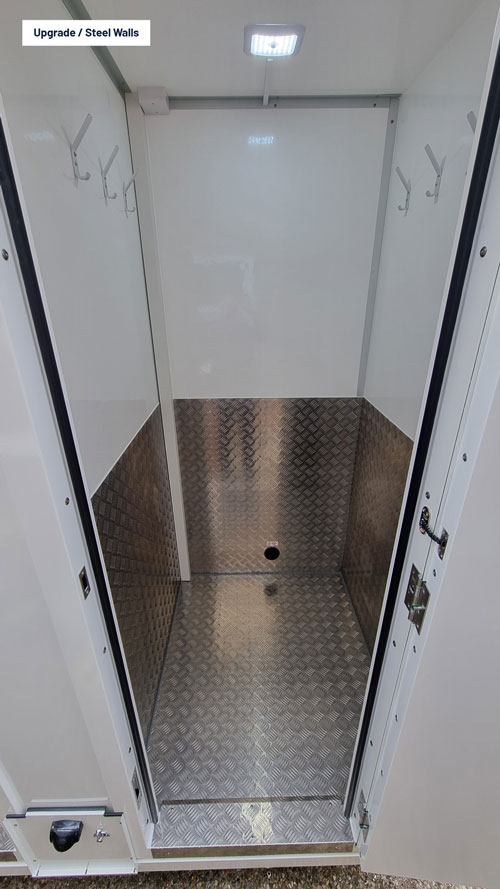

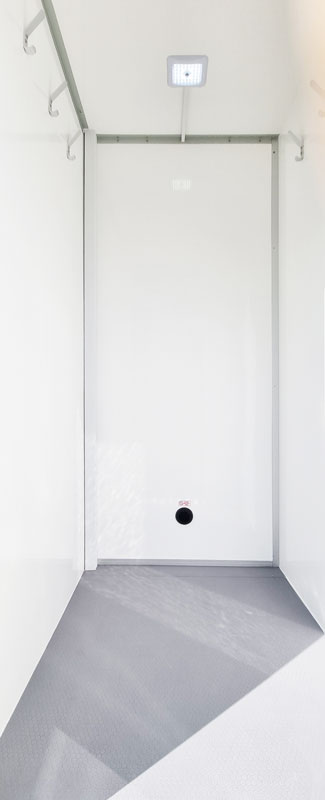

  • Spacious drying room with hanging clothes facility

Security & Safety

  • Dual heavy duty locking system per door
  • Robust galvanised exterior with high impact resistance
  • Unique hydraulic system for setup in 45 seconds

Construction

Walls:

Constructed from unique patented (2448660) high strength composite panels. Galvanised steel exterior, seamless GRP interior and high density foam insulation, provides rust free and washable surfaces.

Roof:

Seamless insulated composite panel.

Floor:

15mm plywood with slip and wear resistant phenolic coating.

Wheels

195R 14” Low profile wheels & tyres.

Chassis

Heavy duty galvanised steel.

Axle:

Electric type approved hydraulic axle.

Doors:

4 x high security composite doors with 2 deadlocks. Double doors to generator with 2 deadlocks.

Window:

Aluminium with security door locked internally with thumb turn deadlock.

Lights:

Built in road lights with removable number plate brackets.

Weight:

Gross weight 3000Kg - Unladen weight ONLY 2733Kg

Running stats

  • 6h
    Without generator(1)
  • 4h
    Without generator(1)

Energy savings - Compared to a standard 6Kva system

All our figures are costed based on REAL- LIFE daily usage, taking into account using the appliances & heating in wintertime and summertime. A full energy presentation is available on request.

  • Ecosmart 22.9

    Standard

  • Ecosmart 22.9 Air

    Heating upgrade

(a) Costs = Red diesel @ 56p/litre. Savings = Compared to an EasyCabin standard 20 with a 6Kva generator.
All figures quoted for guidance only & do not include use of hydraulics. A full energy presentation is available on request.

Optional extras

Optional extras & upgrades


Available on this product. Click for more info.

  • Non-hydraulic axles

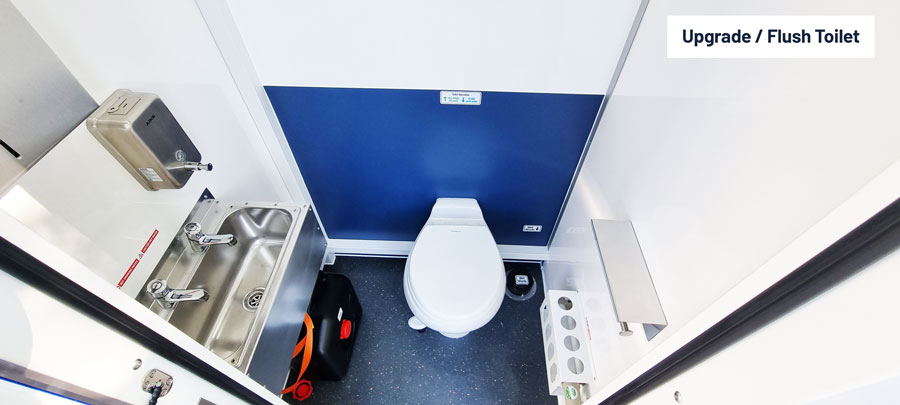

  • Ceramic flush toilet
  • Available as a static unit
  • Custom layouts on request

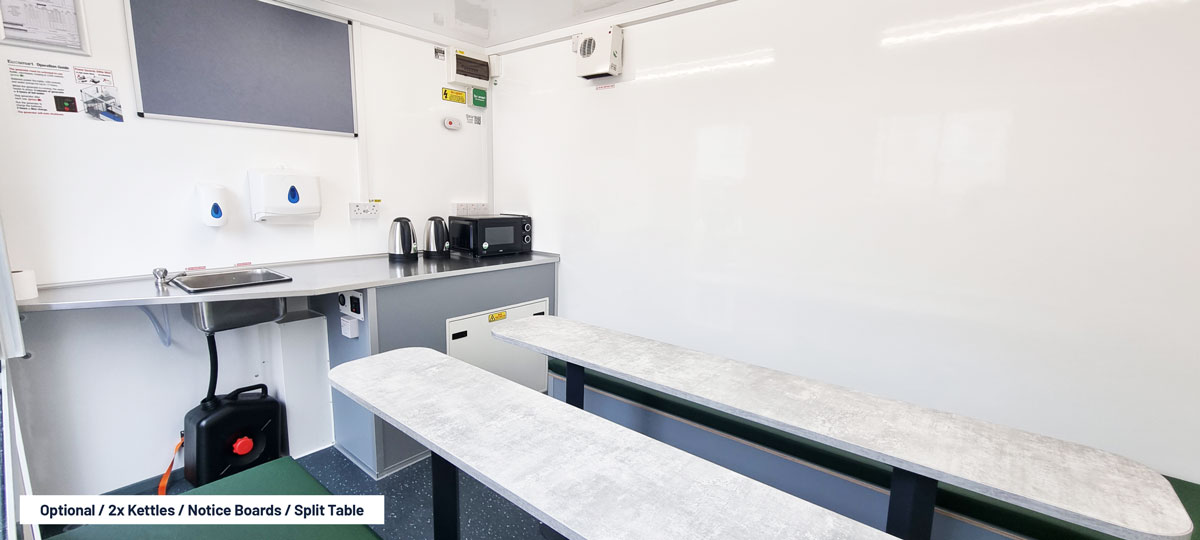

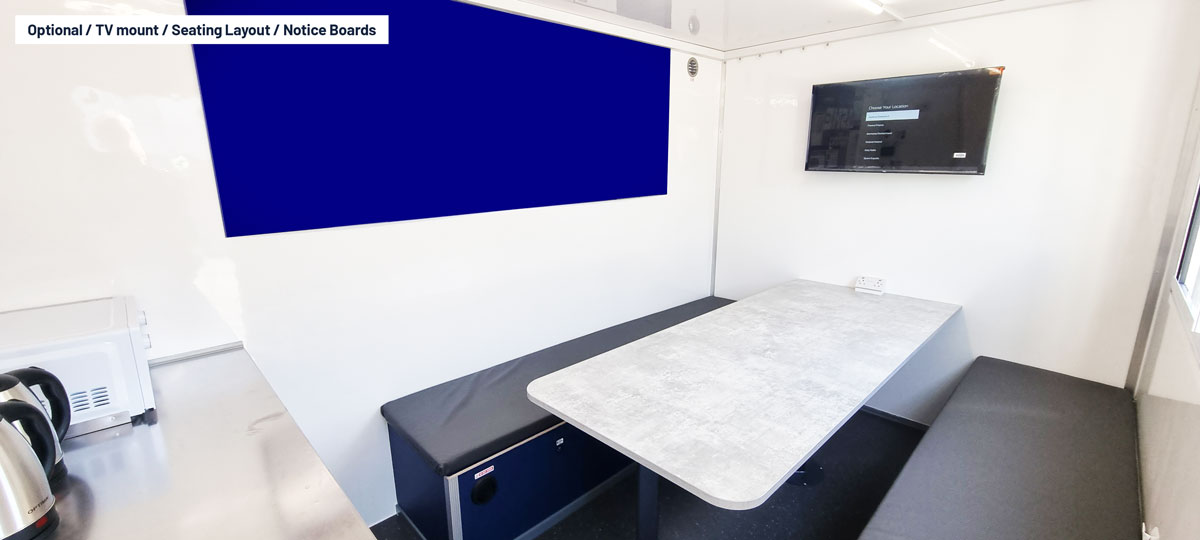

  • Pin boards
  • White boards
  • Spare Wheels
  • Decals / Branding

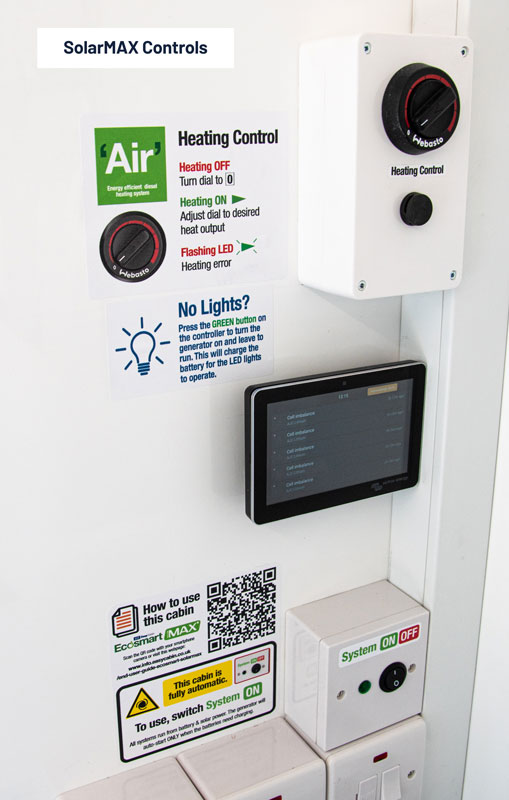

Increase efficiency with ‘Air’ Diesel heating upgrade

SHOW DETAILS
Energy efficient diesel heating upgrade.
Costs, Fuel consumption, Emissions, Noise.
Includes
battery monitor.

‘Air’ – a diesel heating system that saves energy, reduces carbon emissions and noise compared to our standard heating. Up to 78% better fuel economy.

  • MORE WARMTH: More heat produced from less energy.
  • AUTOMATIC: Thermostatic control for continuous cabin temperature.
  • EASY: Just turn the system on and enjoy.
  • EFFICIENT: Low fuel and power consumption, suitable for long periods of operation.
  • QUICK: Short heating-up times.
  • QUIET: No need for the generator to be on for heat to be produced.
  • ALSO INCLUDED: Upgraded batteries, battery monitor, 12v USB charge sockets.
  • SAVE MONEY ON OPERATING COSTS (compared to standard heating)
  • STANDARD HEATING: Heating on with generator running @ 75% load = 1.2 litres per hour
  • ‘Air’ HEATING: Heating on max = 0.28 litres per hour (Saving of 0.92 litres per hour)
  • UPGRADED BATTERY: Gives more continuous LED lighting time (es12 = 10 hours, es16 = 8 hours)

Up to 78% better fuel economy for the same heating time

Contact EasyCabin for details on the ‘Air’ heating system.

Harvest the sun's FREE energy with our Solar hybrid upgrade

UPGRADE TO SOLAR POWER

Media Gallery

As part of our on-going commitment to improvement we reserve the right to alter specifications, designs or figures, without prior notice. All dimensions and weights are approximate.

(1) Figures quoted based on “optimum use”, with the generator not running, no appliances used & no hydraulics used within the stated time period.

(2) While in un-hitched state, timed from the start of axle retract sequence, until the unit is seated and the cabin door is opened.
